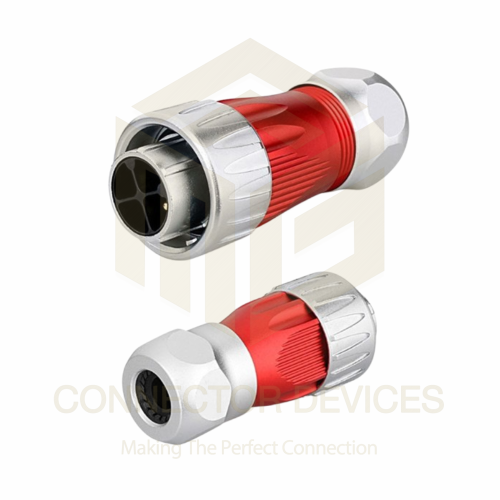

DH24 500V 25A 4Pin Male Plug IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal

1045.0 INR/Piece

Get a Price/Quote

Product Details:

Interface Solder Terminal, 4Pin
Output 4Pin Connection for power supply
Power Supply AC/DC
Operating Temperature -40C to 85C
Features Metal shell, waterproof, dustproof, anti-corrosive, high strength
IP Rating IP67
Input 4Pin Male Plug
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH24 500V 25A 4Pin Male Plug IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 1045.0 INR/Piece

Connector Type Heavy Duty Circular Connector
Vibration Resistance Up to 10g (10-500Hz)
Cable Entry Diameter 18-22mm
Mounting Type Cable Mount (Inline Plug)
Contact Material Copper Alloy with Silver Plating
Locking Mechanism Threaded Coupling Nut
Mechanical Life >500 Mating Cycles
RoHS Compliance Yes
Shell Material Zinc Alloy (Nickel Plated)
Protection Full metal shield for EMI/RFI
Sealing Gasket Material Silicone Rubber
Flame Retardant UL94-V0 Rated

DH24 500V 25A 4Pin Male Plug IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Function Power connection and transmission
Current Rating 25A
Rated Voltage 500V
Frequency 50/60Hz
Interface Solder Terminal, 4Pin
Power Supply AC/DC
Output 4Pin Connection for power supply
Application Industrial, Outdoor, Power Equipment
Input 4Pin Male Plug
Size Standard DH24
Supply Voltage 500V
Features Metal shell, waterproof, dustproof, anti-corrosive, high strength
Operating Temperature -40C to 85C
IP Rating IP67
Usage Heavy duty equipment, outdoor installations, industrial machinery
Dimension (L*W*H) Approx. 105mm x 40mm x 40mm
Components Metal shell, solder terminals, sealing gasket
Capacity 25A current carrying capacity
Product Type Waterproof Power Connector
Weight Approx. 350g
Power Source Mains/Electrical
Thickness Shell thickness approx. 2mm
Color Metallic Silver

Connector Type Heavy Duty Circular Connector
Vibration Resistance Up to 10g (10-500Hz)
Cable Entry Diameter 18-22mm
Mounting Type Cable Mount (Inline Plug)
Contact Material Copper Alloy with Silver Plating
Locking Mechanism Threaded Coupling Nut
Mechanical Life >500 Mating Cycles
RoHS Compliance Yes
Shell Material Zinc Alloy (Nickel Plated)
Protection Full metal shield for EMI/RFI
Sealing Gasket Material Silicone Rubber
Flame Retardant UL94-V0 Rated

DH24 500V 25A 4Pin Male Plug IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Protection Level:IP67
Temperature and humidity:-4080C; 40C, 85%RH
Wire Gauge:2.54.0mm/14 -12AWG
Withstand voltage(AC.V)1min:2500V

High Performance Under Extreme Conditions

Engineered for industrial and outdoor applications, the DH24 plug withstands temperatures from -40C to 85C, vibrations up to 10g, and harsh environments. Its metal shell protects against dust, water, and impact, making it suitable for demanding equipment and installations.

Secure and Reliable Connection

Thanks to its threaded coupling nut and sturdy design, this connector ensures a consistently secure fit, minimizing accidental disconnections. The IP67 rating and robust sealing keep internal components safe from moisture and particles, ensuring longevity and stable power transmission.

Easy Installation and Flexible Use

Featuring solder terminals and a cable mount (inline plug), the DH24 allows straightforward wiring for both AC and DC power setups. With a cable entry diameter of 18-22mm, it accommodates various cable sizes, supporting installations across heavy machinery and distributor networks.

FAQ's of DH24 500V 25A 4Pin Male Plug IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal:

Q: How do I install the DH24 500V 25A 4Pin Male Plug for industrial applications?

A: Installation involves soldering the power supply cables to the 4-pin terminals inside the plug. The cable mount design accepts cables with an 18-22mm diameter. Secure the plug by tightening the threaded coupling nut for a safe and stable connection, ensuring the sealing gasket is correctly positioned for proper waterproofing.

Q: What types of environments or equipment is this connector best suited for?

A: This connector is ideal for heavy-duty equipment, outdoor installations, and industrial machinery requiring high reliability. Its IP67 waterproof rating, robust metal shell, and flame retardant construction make it suitable for harsh environments with exposure to moisture, dust, vibrations, and varying temperatures.

Q: When should I use a metal shell, IP67-rated power connector like the DH24 plug?

A: Use the DH24 plug whenever you need a reliable power connection in settings prone to water ingress, dust, or electrical interference-such as in factories, construction sites, and outdoor power distribution. Its heavy-duty design and full metal shield offer enhanced safety and performance in such conditions.

Q: Where is the DH24 plug typically mounted and what cable types does it support?

A: The connector is an inline (cable mount) type, meant to be attached to cables with a diameter of 18-22mm. It is commonly used on power supply leads connected to industrial or outdoor equipment, allowing flexible placement wherever secure power connections are needed.

Q: What is the process for maintaining the connector's performance and lifespan?

A: Ensure periodic inspection of the connector for signs of wear, especially on the sealing gasket and metal shell. Keep the coupler clean and dry before connecting, and prevent contaminants from entering the mating area. Proper tightening of the threaded nut and avoiding excessive mechanical stress help maintain the connector's operational lifespan of over 500 cycles.

Q: How does this connector benefit equipment manufacturers and installers?

A: The DH24 plug offers high current capacity (25A), robust protection against environmental threats, flame retardance, and strong EMI/RFI shielding. This ensures safer, long-lasting connections, reduces downtime, and simplifies maintenance for equipment manufacturers, installers, and users in demanding power applications.
