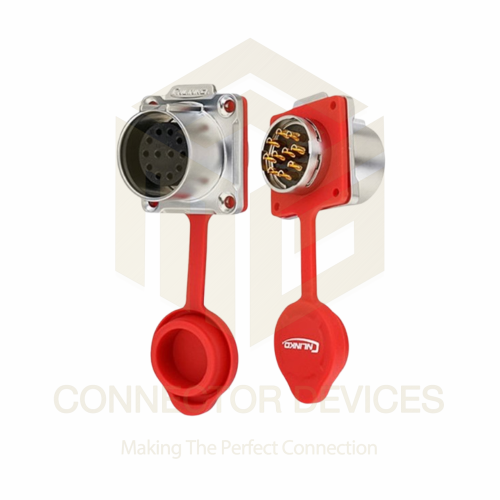

LP24 Series 400V 10A 12Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal

726.0 INR/Piece

Get a Price/Quote

Product Details:

Input 12Pin Female Socket
IP Rating IP67
Output Cable/Plug Connection
Power Supply Electrical
Power Source Electrical Mains
Usage Industrial Power Applications
Components Female Socket, Solder Terminals, Waterproof Seals
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP24 Series 400V 10A 12Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Price 726.0 INR/Piece
Minimum Order Quantity 100 Piece

Compliance Standards RoHS, CE
Humidity Resistance Up to 95% RH
Locking System Threaded Coupling (Twist-Lock)
Mounting Type Panel Mount or Cable End
Wire Gauge Supported AWG 14-20
Seal Material Silicone Rubber
Flame Retardant Level UL94 V-0
Number of Positions 12 Pins
Contact Material Copper Alloy with Silver Plating
Shell Material Zinc Alloy, Nickel Plated

LP24 Series 400V 10A 12Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Rated Voltage 400V AC/DC
Interface Solder Terminal
Thickness Standard Shell Thickness
Operating Temperature -40C to +85C
Function Power Connection
Features Dustproof, Waterproof, Durable, Metal Shell
Weight Approx. 46g
Application Outdoor Power, Industrial Equipment, Automation Systems
Usage Industrial Power Applications
Dimension (L*W*H) Approx. 32mm (Diameter) x 65mm (Length)
Components Female Socket, Solder Terminals, Waterproof Seals
Power Source Electrical Mains
Frequency 50/60 Hz
Current Rating 10A
Color Silver (Metal Shell)
Size LP24 Series
IP Rating IP67
Capacity 10A Continuous Current
Power Supply Electrical
Output Cable/Plug Connection
Product Type Waterproof Power Connector
Input 12Pin Female Socket
Supply Voltage 400V Max

Compliance Standards RoHS, CE
Humidity Resistance Up to 95% RH
Locking System Threaded Coupling (Twist-Lock)
Mounting Type Panel Mount or Cable End
Wire Gauge Supported AWG 14-20
Seal Material Silicone Rubber
Flame Retardant Level UL94 V-0
Number of Positions 12 Pins
Contact Material Copper Alloy with Silver Plating
Shell Material Zinc Alloy, Nickel Plated

LP24 Series 400V 10A 12Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:400V
Insertion and extraction force:22N Max
Withstanding voltage:2000V
Wire Gauge:1.01.5mm/18 -16AWG
Temperature and humidity:-40+80C; 40C, 85%RH
Mating cycle:1700 times
Screw torque:42-53 (Nm)

Rugged Construction for Harsh Environments

Built with a zinc alloy, nickel-plated shell and silicone rubber seals, the LP24 Series connector boasts IP67 waterproof and dustproof ratings. Its durable metal shell and flame-retardant design make it ideal for outdoor and industrial environments exposed to moisture, dust, or rapid temperature changes.

Versatile and Secure Power Connectivity

The 12-pin configuration, rated for 400V and 10A, offers reliable electrical performance for power distribution in automation systems, machinery, and external equipment. The threaded (twist-lock) coupling ensures quick, vibration-resistant assembly for panel-mount or cable-end installations.

Safe, Compliant, and Easy to Install

Complying with RoHS and CE standards, and offering UL94 V-0 flame retardancy, this connector upholds rigorous safety requirements. Solder terminals and support for AWG 14-20 wires make wiring straightforward, allowing fast integration into systems while ensuring maximum contact reliability.

FAQ's of LP24 Series 400V 10A 12Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal:

Q: How do I install the LP24 Series 400V 10A 12Pin Female Socket in an industrial application?

A: The LP24 Series socket can be mounted on a panel or used as a cable-end connector. Simply align the solder terminals to your wire gauge (AWG 14-20), solder the connections, and secure the socket using the threaded twist-lock mechanism for a reliable fit and watertight seal.

Q: What environments is this connector suitable for, and what benefits does the IP67 rating provide?

A: This connector is ideal for outdoor power supplies, industrial automation, and rugged applications. Its IP67 rating ensures it is protected from dust ingress and water immersion up to 1 meter for 30 minutes, guaranteeing dependable operation in harsh or moist conditions.

Q: What are the main compliance standards met by this product?

A: The LP24 Series connector complies with RoHS and CE standards, and its shell meets the UL94 V-0 flame retardancy requirement. This ensures the product supports safety and environmental requirements for global industrial use.

Q: When should I choose this model over other connectors?

A: Choose the LP24 Series 12Pin socket when you require a high current (10A), high voltage (400V) power connection solution in challenging environments. Its robust, waterproof, and flame-retardant design makes it perfect for demanding outdoor or industrial applications.

Q: What is the process for connecting wires to the socket terminals?

A: Strip your wires (AWG 14-20), solder them to the copper alloy with silver-plated terminals, then secure the assembly with the locking mechanism. Ensure the silicone rubber seals are properly positioned for waterproofing before final installation.

Q: What advantages does the threaded coupling (twist-lock) provide?

A: The threaded twist-lock coupling mechanism ensures a secure, vibration-resistant connection that won't loosen easily during operation. This is especially beneficial in industrial or outdoor settings where reliability is critical.

Q: Can the LP24 Series 12Pin connector be used for both AC and DC supply applications?

A: Yes, it supports supply voltages up to 400V in both AC and DC power applications, making it suitable for a variety of industrial equipment and power distribution tasks.
