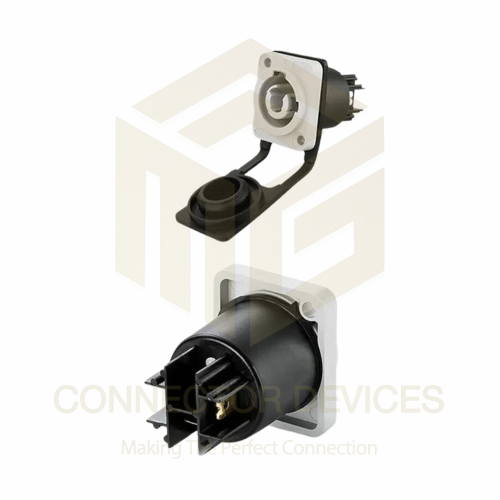

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Male Chassis Socket Panel Connector Plastic Shell Solder Terminal

Name: YF24 500V 20A 3Pin PowerCON IP67 Waterproof Male Chassis Socket Panel Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 200.0 INR
Availability: InStock

200.0 INR/Piece

Get a Price/Quote

Product Details:

Features Waterproof, dustproof, robust plastic shell, flame-retardant material, panel mountable, vibration resistant
Input Male 3-pin connection
Operating Temperature -30C ~ +80C
Components 3-pin solder type terminals, plastic shell, mounting gasket
Usage Chassis Panel Mount Socket
IP Rating IP67
Power Supply AC/DC Applicable
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Male Chassis Socket Panel Connector Plastic Shell Solder Terminal Price And Quantity

Price 200.0 INR/Piece
Minimum Order Quantity 100 Piece

Flammability Standard UL94-V0
Insulation Resistance 2000 M at 500V DC
Contact Material Copper alloy with silver plating
Mounting Type Panel mount with screw fasteners
Panel Cutout Size Approx. 24mm diameter hole
Shell Material High-strength flame-retardant plastic
Mating Cycle Durability 500 cycles
Locking Mechanism Twist-lock self-locking design
Connection Type Solder terminal connection
Humidity Resistance 95% RH (non-condensing)
Contact Resistance 2m

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Male Chassis Socket Panel Connector Plastic Shell Solder Terminal Product Specifications

Capacity 20A Rated Current
Usage Chassis Panel Mount Socket
Application Audio, stage equipment, power distribution, industrial automation
Product Type Waterproof Male Chassis Socket Panel Connector
Current Rating 20A
Weight Approx. 42g
Frequency 50/60Hz applicable
IP Rating IP67
Output Connected equipment or cable
Power Supply AC/DC Applicable
Display Type No display
Power Source Electrical mains supply
Interface Solder terminal
Supply Voltage 500V max
Features Waterproof, dustproof, robust plastic shell, flame-retardant material, panel mountable, vibration resistant
Rated Voltage 500V
Thickness Shell thickness approx. 2.5mm
Size Approx. 31mm diameter panel flange
Function Power connector for reliable electrical connection in harsh and outdoor environments
Input Male 3-pin connection
Dimension (L*W*H) Approx. 60mm x 31mm x 31mm
Color Black
Operating Temperature -30C ~ +80C
Components 3-pin solder type terminals, plastic shell, mounting gasket

Flammability Standard UL94-V0
Insulation Resistance 2000 M at 500V DC
Contact Material Copper alloy with silver plating
Mounting Type Panel mount with screw fasteners
Panel Cutout Size Approx. 24mm diameter hole
Shell Material High-strength flame-retardant plastic
Mating Cycle Durability 500 cycles
Locking Mechanism Twist-lock self-locking design
Connection Type Solder terminal connection
Humidity Resistance 95% RH (non-condensing)
Contact Resistance 2m

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Male Chassis Socket Panel Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Fast Locking
Cable Specification:2.5mm2 4mm2 /1412AWG
Diameter Range:8mm 12mm
Durability:> 500 mating & unmating cycles
Temperature Rating:-40C80C

Waterproof Performance for Outdoor Reliability

Built to endure tough environments, the YF24 connector's IP67 rating ensures complete protection against dust and water ingress. Its rugged design and rubber gasket make it suitable for outdoor stage equipment, industrial automation, and power distribution, even under heavy rain or high humidity. This helps maintain a stable and secure electrical connection in challenging situations, reducing downtime and enhancing safety.

Secure & Durable Connection with Twist-Lock Mechanism

The integrated twist-lock self-locking design of this connector provides a strong, vibration-resistant connection. Mating cycle durability of up to 500 cycles offers longevity while the high-strength flame-retardant shell withstands physical and thermal stress. Its panel mount feature, reinforced by screw fasteners, ensures that it remains solidly in place regardless of environmental vibrations or movement.

Versatile Applications Across Industries

With its ability to handle up to 500V and 20A, and compatibility with both AC and DC supplies, the YF24 3-pin connector is extensively used in professional audio setups, industrial automation panels, stage power supplies, and other electrical distribution scenarios. The solder terminal design simplifies wiring during installation, ensuring a robust connection for critical equipment.

FAQ's of YF24 500V 20A 3Pin PowerCON IP67 Waterproof Male Chassis Socket Panel Connector Plastic Shell Solder Terminal:

Q: How do I install the YF24 3Pin PowerCON connector onto my equipment?

A: To install the YF24 connector, prepare a 24mm diameter cutout on your panel, insert the connector, and secure it using the included screw fasteners. Then, connect your wires to the solder terminals according to your equipment's wiring diagram. Once soldered, the twist-lock mechanism ensures the mating plug stays securely in place.

Q: What environments is this connector suitable for?

A: This product boasts an IP67 waterproof and dustproof rating, making it ideal for use in harsh, outdoor, or industrial environments. Its flame-retardant, high-strength plastic shell and vibration-resistant mounting allow for safe operation on audio equipment, stage lighting, and industrial automation machinery.

Q: When should I use a PowerCON chassis socket like the YF24?

A: Choose the YF24 chassis socket when you require a reliable, high-current, and waterproof connection for your panel-mounted devices. Its 20A capacity and compatibility with AC/DC applications make it suitable for scenarios demanding robust and safe electrical connections, such as event stages, power distribution boxes, and factory equipment.

Q: Where can this connector be mounted?

A: This connector is designed for panel mounting using screw fasteners. It fits panels with a 24mm diameter cutout and a flange diameter of 31mm, making it compatible with a variety of chassis panels in audio, industrial, or distribution enclosures.

Q: What are the key safety features of the YF24 connector?

A: Key safety features include a high-strength, flame-retardant plastic shell (UL94-V0 standard), IP67 protection against water and dust, silver-plated copper alloy contacts for low resistance, and a twist-lock mechanism preventing accidental disconnection. These features combine to enhance electrical safety in critical applications.

Q: How does the connector ensure a secure electrical connection?

A: The connector features a twist-lock self-locking design that secures the plug within the socket, minimizing accidental disconnects. Its vibration resistance, combined with robust panel mounting and silver-plated contacts, maintains consistent electrical performance even in dynamic or mobile setups.
