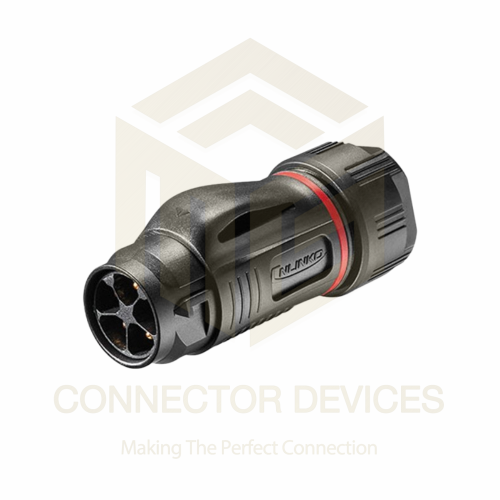

BD20 10A 5Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal

Name: BD20 10A 5Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 331.0 INR
Availability: InStock

331.0 INR/Piece

Get a Price/Quote

Product Details:

Features Waterproof, Dustproof, Secure Locking, Corrosion Resistant
Components Body, Pins, Plastic Shell, Cap
Interface 5 Pin Solder Terminal
Input Solder Terminal
Output 5-Pin Male Plug
IP Rating IP67
Power Source Cable/Panel Connection
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

BD20 10A 5Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Price 331.0 INR/Piece
Minimum Order Quantity 100 Piece

Flame Retardant Level UL94-V0
Contact Resistance 3m
Mechanical Life >500 Mating Cycles
Number of Pins 5
Applicable Standards RoHS Compliant, CE Certified
Wire Gauge Supported 2.5mm2 (Max 14 AWG)
Seal Type Silicone Rubber Gasket
Pin Material Copper Alloy with Nickel Plating
Mounting Type Cable Mount
Locking Mechanism Threaded Coupling Nut
Insulation Resistance 2000M
Material High Quality Plastic Shell

BD20 10A 5Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Size BD20 Standard
Power Supply AC/DC
Usage Industrial Power Supply Connection
Frequency 50/60 Hz
Application Outdoor/Indoor Electrical Installations
Rated Voltage 250V AC
Color Black
IP Rating IP67
Capacity 10A
Current Rating 10A
Operating Temperature -25C~+85C
Power Source Cable/Panel Connection
Weight 52g
Interface 5 Pin Solder Terminal
Product Type Waterproof Male Plug Connector
Input Solder Terminal
Output 5-Pin Male Plug
Supply Voltage 250V
Thickness Approx. 2.7 cm
Components Body, Pins, Plastic Shell, Cap
Dimension (L*W*H) Approx. 75 mm x 34 mm x 34 mm
Features Waterproof, Dustproof, Secure Locking, Corrosion Resistant
Function Power Connector

Flame Retardant Level UL94-V0
Contact Resistance 3m
Mechanical Life >500 Mating Cycles
Number of Pins 5
Applicable Standards RoHS Compliant, CE Certified
Wire Gauge Supported 2.5mm2 (Max 14 AWG)
Seal Type Silicone Rubber Gasket
Pin Material Copper Alloy with Nickel Plating
Mounting Type Cable Mount
Locking Mechanism Threaded Coupling Nut
Insulation Resistance 2000M
Material High Quality Plastic Shell

BD20 10A 5Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Withstanding voltage:2500V
Operating Voltage:500V
Contact dimension:Phi 3x3
Insertion and extraction force:5.4N Max
Temperature and humidity:-40+80C; 40C, 85%RH

Superior Waterproof and Dustproof Protection

Designed with an IP67 rating and a silicone rubber gasket, this connector withstands harsh environments, providing reliable performance in both outdoor and indoor installations. Its secure locking mechanism ensures a tight seal against water, dust, and debris, making it ideal for demanding industrial power applications.

Durable Build and Reliable Connections

With over 500 mating cycles and constructed from a high-quality plastic shell, the BD20 5Pin Male Plug is built to last. The robust copper alloy pins, nickel plated for corrosion resistance, guarantee long-term, stable power transmission even under repetitive use and challenging conditions.

FAQ's of BD20 10A 5Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How do I install the BD20 10A 5Pin Male Plug?

A: To install, solder your wires directly onto the 5-pin solder terminals inside the connector, ensuring proper alignment. After soldering, secure the cable using the threaded coupling nut for a waterproof and dustproof seal with the silicone rubber gasket.

Q: What environments is this connector suitable for?

A: The BD20 connector is suitable for both outdoor and indoor use, thanks to its IP67 waterproof and dustproof rating. It is ideal for industrial power supply connections, even in challenging or exposed environments where reliable sealing is essential.

Q: When should I use this power connector over traditional plugs?

A: Use the BD20 10A 5Pin Male Plug in situations demanding enhanced protection from moisture, dust, and mechanical wear-such as industrial automation, outdoor lighting, or harsh environment power connections where a secure and safe connection is crucial.

Q: Where can this connector be used in an industrial setting?

A: This connector is versatile for machinery, control panels, outdoor equipment, or any application requiring a reliable AC/DC power connection. Its flame-retardant shell and RoHS/CE compliance make it suitable for many regulated industrial environments.

Q: What benefits does the BD20 5Pin connector provide?

A: Key benefits include excellent waterproof and dustproof performance (IP67), a secure and easy-to-use threaded locking system, reliable corrosion resistance, a long mechanical life (over 500 cycles), and compatibility with both AC and DC supplies up to 250V/10A.

Q: How does the locking mechanism enhance safety and reliability?

A: The threaded coupling nut ensures a tight mechanical connection, preventing accidental disconnection. This secure locking also maintains the integrity of the waterproof and dustproof seal, reducing the risk of failure in critical power supply links.
