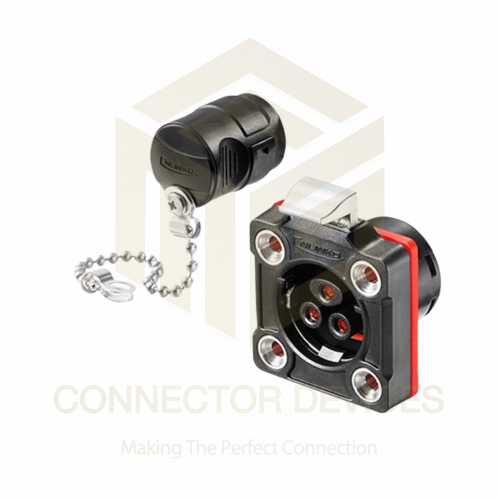

BD20 20A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal

Name: BD20 20A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 654.0 INR
Availability: InStock

654.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP67
Output 3 solder terminals
Components Plastic shell, solder terminals, rubber gasket
Operating Temperature -40C to +80C
Power Supply AC power
Input 3-pin female port
Interface 3-pin solder terminal
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

BD20 20A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Price And Quantity

Price 654.0 INR/Piece
Minimum Order Quantity 100 Piece

Shell Material Plastic (PA66)
Flame Retardant Grade UL94 V-0
Dielectric Strength 2000V AC/min
Mechanical Life >500 mating cycles
Sealing Method O-ring and rubber gasket
Cable Diameter Range 6mm - 12mm
Protection Method Screw lock
Contact Material Brass with silver plating
Connector Gender Female
Insulation Material High strength engineering plastic
Mounting Type Flange mount with 4 screw holes
Number of Pins 3
Contact Resistance 2 m

BD20 20A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Product Specifications

Dimension (L*W*H) Approx. 66mm x 54mm x 39mm
IP Rating IP67
Capacity 20A current rating
Output 3 solder terminals
Components Plastic shell, solder terminals, rubber gasket
Product Type Flange mount waterproof connector
Operating Temperature -40C to +80C
Application Power distribution, machinery, lighting
Current Rating 20A
Rated Voltage 500V AC
Size Panel cutout diameter approx. 30mm
Frequency 50/60Hz
Weight Approx. 95 grams
Color Black
Function Female socket for waterproof power connection
Input 3-pin female port
Features Waterproof, dustproof, corrosion resistant, easy installation
Thickness Shell thickness approx. 2.2 mm
Interface 3-pin solder terminal
Power Supply AC power
Supply Voltage 500V max
Power Source Wired electric connection
Usage Industrial and outdoor electrical connections

Shell Material Plastic (PA66)
Flame Retardant Grade UL94 V-0
Dielectric Strength 2000V AC/min
Mechanical Life >500 mating cycles
Sealing Method O-ring and rubber gasket
Cable Diameter Range 6mm - 12mm
Protection Method Screw lock
Contact Material Brass with silver plating
Connector Gender Female
Insulation Material High strength engineering plastic
Mounting Type Flange mount with 4 screw holes
Number of Pins 3
Contact Resistance 2 m

BD20 20A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Withstanding voltage:2500V
Operating Voltage:500V
Contact dimension:Phi 3x3
Insertion and extraction force:5.4N Max
Mating cycle:1700 times
Temperature and humidity:-40+80C; 40C, 85%RH

Durable Waterproof Power Solution

Engineered for challenging environments, the BD20 socket ensures steadfast power delivery with its IP67 waterproof and dustproof features. The use of high-strength PA66 plastic and silver-plated brass contacts guarantees resistance to impact, corrosion, and frequent use, exceeding 500 mating cycles. This makes it especially suitable for outdoor and industrial applications where reliability is paramount.

Easy Installation and Flexible Application

With its 4-hole flange mount design, the BD20 connector is simple to securely affix to panels or equipment. The 3-pin female input and large cable diameter range support a wide array of industrial and lighting systems. Solder terminals ensure robust electrical connections, while an O-ring and rubber gasket lock out environmental hazards. The clear black design brings a professional look to your power solutions.

FAQ's of BD20 20A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal:

Q: How do I install the BD20 20A 3Pin Female Socket?

A: To install, start by cutting a circular panel hole approximately 30mm in diameter. Place the socket in position and secure it using the four mounting screws through the flange holes. Connect your power cable (6-12mm diameter) to the solder terminals and ensure the O-ring and rubber gasket are properly seated to maintain IP67-rated waterproof performance.

Q: What environments is the BD20 3Pin Socket suitable for?

A: This connector is engineered for both industrial and outdoor environments, handling demanding power applications such as machinery, lighting, and distribution panels. Its IP67 rating protects against dust, water immersion, and harsh conditions, making it ideal for use in factories, outdoor installations, or construction sites.

Q: When should I use a 20A, IP67-rated connector like this one?

A: Use the BD20 socket whenever you need to ensure reliable, high-capacity power transfer (up to 20A at 500V AC) in environments exposed to moisture, dust, or vibration. It is particularly useful for installations that require robust sealing and resistance to weather, such as outdoor lighting and equipment.

Q: Where do the solder terminals and cable entry points reside on this socket?

A: Three solder terminals are located at the rear of the connector, accessible after panel mounting. Power cables enter through the rear cable gland, where the robust O-ring and gasket system provides complete sealing against water and dust ingress.

Q: What benefits does the use of silver-plated brass contacts provide?

A: Silver-plated brass contacts reduce electrical resistance (contact resistance 2 m), offering excellent conductivity, low heat generation, and enhanced corrosion resistance, which collectively prolong the connector's service life, especially in challenging environments.

Q: How does the screw lock protection method enhance safety?

A: The screw lock mechanism ensures the connector remains securely mated during operation, reducing the risk of accidental disconnects and maintaining a reliable seal for waterproof and dustproof protection.
