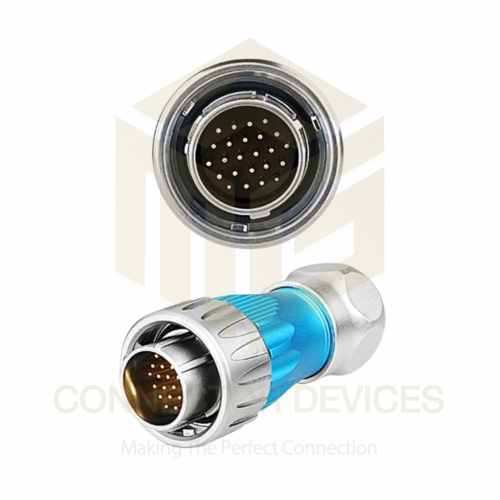

DH24 250V 5A 24Pin Male Plug IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal

Name: DH24 250V 5A 24Pin Male Plug IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 1209.0 INR
Availability: InStock

1209.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature -40C to +80C
Input Solder Terminal
Power Source Electrical Wiring
Features Metal shell, Waterproof, Dust-proof, Easy assembly
Usage Waterproof male plug for harsh environments
Output 24 Pin Output
Power Supply Electric
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH24 250V 5A 24Pin Male Plug IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Price 1209.0 INR/Piece
Minimum Order Quantity 100 Piece

Contact Material Copper alloy with silver plating
Vibration Resistance 10~2000Hz, 15g
Mechanical Life 500 Mating Cycles
Sealing Method Rubber Gasket and Screw Cap
Flame Retardant Rating UL94-V0
Mounting Type Panel Mount
Shell Material Aluminum Alloy
Contact Resistance 5 m
Connector Type Male Plug
Number of Contacts 24 Pins
Insulation Resistance > 2000 M (at 500V DC)
Waterproof Level IP67 (tested under 1m water for 30 minutes)
Cable Diameter Supported 6-12mm
Locking Mechanism Screw Coupling
Storage Temperature -55C to +85C

DH24 250V 5A 24Pin Male Plug IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Components Metal shell, solder terminals, sealing gaskets
Application Heavy duty equipment, industrial machinery, outdoor installations
Supply Voltage 250V AC/DC
Frequency 50-60Hz
Thickness Robust metal shell, approximately 2-3mm
Interface 24 Pin Male Solder
Size DH24 Standard Size
IP Rating IP67
Current Rating 5A
Function Power and Signal Connection
Features Metal shell, Waterproof, Dust-proof, Easy assembly
Weight Approx. 180g
Usage Waterproof male plug for harsh environments
Capacity 5A per contact
Output 24 Pin Output
Power Supply Electric
Dimension (L*W*H) approx. 35mm x 35mm x 110mm
Operating Temperature -40C to +80C
Input Solder Terminal
Power Source Electrical Wiring
Rated Voltage 250V
Color Metallic Silver
Product Type Waterproof Power Connector

Contact Material Copper alloy with silver plating
Vibration Resistance 10~2000Hz, 15g
Mechanical Life 500 Mating Cycles
Sealing Method Rubber Gasket and Screw Cap
Flame Retardant Rating UL94-V0
Mounting Type Panel Mount
Shell Material Aluminum Alloy
Contact Resistance 5 m
Connector Type Male Plug
Number of Contacts 24 Pins
Insulation Resistance > 2000 M (at 500V DC)
Waterproof Level IP67 (tested under 1m water for 30 minutes)
Cable Diameter Supported 6-12mm
Locking Mechanism Screw Coupling
Storage Temperature -55C to +85C

DH24 250V 5A 24Pin Male Plug IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:250V
Temperature and humidity:-4080C; 40C, 85%RH
Wire Gauge:0.150.2mm/26 -24AWG
Withstand voltage(AC.V)1min:2500V
Mating Cycle:1700 Times

Exceptional Waterproof Design

Certified to IP67, the DH24 connector resists water ingress even when submerged in up to 1 meter of water for 30 minutes. The combination of a screw-coupled cap and rubber sealing gasket ensures a tight, waterproof, and dust-proof seal, making it ideal for outdoor equipment and harsh industrial applications.

Reliable Power and Signal Connectivity

With 24 silver-plated copper alloy contacts, this connector manages both power (up to 5A per pin, 250V AC/DC) and signal transmission. Solder terminals provide a strong, permanent connection, while the robust aluminum shell and high flame retardant rating (UL94-V0) deliver long-term durability in heavy-duty environments.

Versatile Application and Easy Installation

Supporting cable diameters from 6mm to 12mm, this male plug is compatible with a wide range of cable types. Its panel mount design and simple screw-lock mechanism streamline installation and maintenance, making it suitable for industrial, commercial, and outdoor projects requiring reliable, waterproof connectivity.

FAQ's of DH24 250V 5A 24Pin Male Plug IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal:

Q: How do I install the DH24 24Pin Male Waterproof Connector?

A: To install, solder your wires to the 24 pin terminals, fit your cable (6-12mm diameter) through the screw cap and rubber gasket, then mount the connector to your panel. Secure the connection with the screw coupling for waterproof protection.

Q: What environments is this power connector best suited for?

A: This connector excels in heavy duty, industrial, or outdoor environments exposed to dust, moisture, and temperature extremes. Its waterproof IP67 rating and robust aluminum shell ensure durability in construction equipment, factory machinery, and outdoor electrical installations.

Q: When should I choose a 24 pin connector like this?

A: Opt for a 24 pin connector when multiple power and signal lines must be securely transmitted in harsh or demanding settings. It is ideal for complex electrical systems requiring high contact density, reliability, and weather resistance.

Q: Where can the DH24 Male Plug be used?

A: It is commonly used in panel mount applications for industrial machines, transport equipment, heavy manufacturing, outdoor lighting systems, and other environments requiring secure, dust-proof and waterproof electrical connections.

Q: What is the process for achieving the IP67 waterproof rating?

A: IP67 is achieved by the combined use of a robust aluminum shell, precision-engineered screw coupling, and a rubber gasket. Tightening the screw cap compresses the gasket, sealing out water and dust during operation or even short-term submersion.

Q: How can this connector benefit my installations?

A: This connector provides long-lasting, reliable power and signal connections with minimal maintenance. Its high insulation resistance, vibration resistance, and flame-retardant features reduce downtime, improve safety, and enhance operational reliability.
