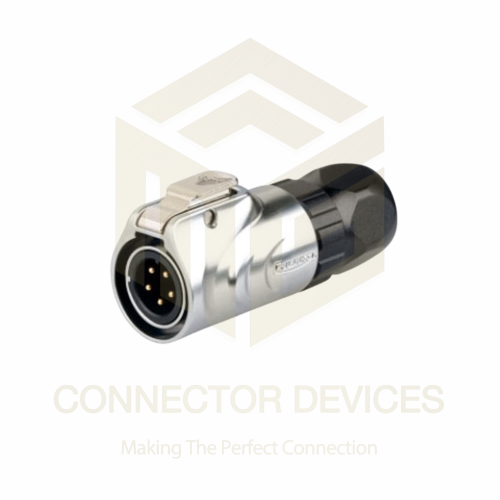

LP12 5A 5Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal

Name: LP12 5A 5Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 761.0 INR
Availability: InStock

761.0 INR/Piece

Get a Price/Quote

Product Details:

Interface 5-pin Male, Solder Termination
Output 5 Pin Male
IP Rating IP67
Power Source Electrical Cable/Device
Components 5A 5-Pin Male Plug, Metal Shell, Solder Terminals
Operating Temperature -40C to +85C
Usage Cable/Device Connectivity
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP12 5A 5Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 761.0 INR/Piece

Protection Level Completely protected from dust and water immersion up to 1m (IP67)
Flame Retardance UL94-V0
Mating Type Threaded Lock, Anti-Vibration
Mechanical Life > 500 Mating Cycles
Mounting Type Cable Mount
Cable Diameter Range 4mm to 6.5mm
Contact Material Copper Alloy, Gold-Plated
Insulation Resistance >1000 M at 500V DC
Contact Resistance 5m
Number of Pins 5 (Male)
Material Zinc Alloy Metal Shell with Nickel Plating

LP12 5A 5Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Supply Voltage AC or DC (up to 250V supported)
Frequency 50/60Hz
Input Solder Terminal (for cable connection)
Rated Voltage 250V AC
Features Waterproof, Dustproof, Corrosion Resistance, Durable Metal Shell
Thickness Standard Metal Shell (approx. 1.5mm)
Power Supply Electrical
Usage Cable/Device Connectivity
Function Power Connector
Size M12 Thread size (approx. 12mm diameter)
Weight Approx. 25g
Operating Temperature -40C to +85C
Components 5A 5-Pin Male Plug, Metal Shell, Solder Terminals
Color Silver (Metal Shell)
Capacity Rated for 5A current
Current Rating 5A
Power Source Electrical Cable/Device
Dimension (L*W*H) Approx. 55mm x 18mm x 18mm
Output 5 Pin Male
IP Rating IP67
Product Type Waterproof Power Connector
Application Outdoor Power, Industrial Equipment, LED Connections, Automation
Interface 5-pin Male, Solder Termination

Protection Level Completely protected from dust and water immersion up to 1m (IP67)
Flame Retardance UL94-V0
Mating Type Threaded Lock, Anti-Vibration
Mechanical Life > 500 Mating Cycles
Mounting Type Cable Mount
Cable Diameter Range 4mm to 6.5mm
Contact Material Copper Alloy, Gold-Plated
Insulation Resistance >1000 M at 500V DC
Contact Resistance 5m
Number of Pins 5 (Male)
Material Zinc Alloy Metal Shell with Nickel Plating

LP12 5A 5Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Copper needle model (panel fit size):12mm
Connecting Mode:Plug (Male pin)
Operating Voltage:250V
Withstanding Voltage:1500V
Mating Cycle:1700 times
Contact Dimension:Phi 1.0x2
Temperature and Humidity:-40+80C; 40C, 85%RH

Reliable Water and Dust Protection

Designed for demanding environments, the LP12 5A 5Pin Male Plug offers complete IP67 protection, ensuring it remains sealed against dust and capable of enduring immersion in water up to 1 meter. Its premium zinc alloy shell with nickel plating not only defends against corrosion and mechanical wear but also guarantees service in both indoor and outdoor settings.

Superior Electrical Performance and Safety

Engineered to support power requirements up to 250V AC and 5A, this connector boasts gold-plated copper alloy contacts for minimal resistance and high insulation values. With UL94-V0 flame retardant certification and operating temperatures from -40C to +85C, it delivers both safety and consistent performance in industrial and power supply scenarios.

Durable Construction and Easy Installation

Combining a robust metal shell and threaded locking mechanism, the LP12 connector resists vibration and mechanical shocks. The solder termination design allows for straightforward connection to compatible cables, fitting diameters from 4mm to 6.5mm. Its longevity is proven by a mechanical life spanning over 500 mating cycles.

FAQ's of LP12 5A 5Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal:

Q: How is the LP12 5A 5Pin Male Plug installed to cables?

A: The connector features solder terminals designed for secure wiring. To install, strip the cable as needed, solder each conductor to the corresponding terminal, and secure the connection by tightening the threaded lock for a reliable, anti-vibration fit.

Q: What environments or applications is this connector best suited for?

A: Thanks to its IP67 rating, robust metal shell, and flame retardance, the LP12 5A 5Pin Male Plug excels in outdoor power distribution, industrial machinery, LED lighting systems, and automation setups-especially where exposure to dust, water, or vibration is likely.

Q: When should I select a connector with an IP67 rating like this one?

A: Choose an IP67-rated connector when you need assured protection against dust and periodic immersion in water, such as in field installations, outdoor electrical equipment, or harsh industrial environments requiring reliable, safe power connectivity.

Q: Where can the LP12 5A 5Pin Male Plug be sourced in India?

A: This connector is available through electrical distributors, exporters, importers, manufacturers, traders, and wholesalers across India. It caters to a spectrum of professional users needing durable and high-performance connectivity solutions.

Q: What are the benefits of using a threaded lock and anti-vibration design in this connector?

A: The threaded lock ensures a firm and stable connection, minimizing the risk of accidental unplugging. Combined with its anti-vibration features, this design keeps your electrical connections secure even in environments with movement or mechanical stress.

Q: What is the process for achieving a waterproof and dustproof seal with this connector?

A: Properly mounting the cable within the specified diameter range (4mm to 6.5mm) and tightly securing the threaded lock results in a waterproof and dustproof seal, compliant with the IP67 standard to protect your connection from environmental hazards.
