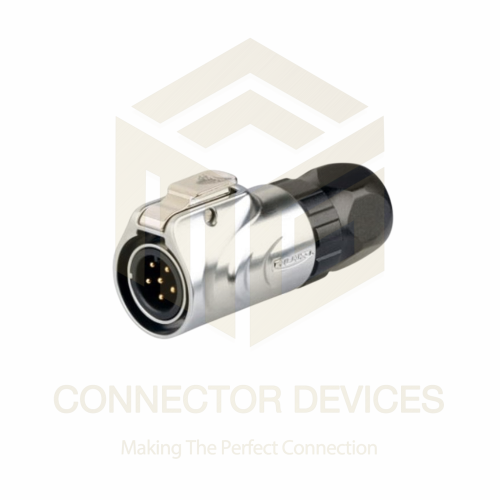

LP12 5A 6Pin Male Plug IP67 Waterproof Power Connector

775.0 INR/Piece

Get a Price/Quote

Product Details:

Output 6 Pin electrical contacts
Usage Outdoor and industrial equipment power connection
Input 6 Pin male interface
Components Male plug housing, 6-pin contacts, sealing ring
IP Rating IP67
Operating Temperature -20C to +85C
Power Source Wired electrical connection
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP12 5A 6Pin Male Plug IP67 Waterproof Power Connector Price And Quantity

Minimum Order Quantity 100 Piece
Price 775.0 INR/Piece

Waterproof Sealing Equipped with rubber O-ring
Mounting Style Inline / Cable mount
Flame Retardant Grade UL94-V0
Shell Material High quality nylon PA66
Insulation Resistance 500M at 500V DC
Mating Cycle Durability >500 times insertion/extraction
Locking Mechanism Threaded coupling
Connection Method Soldering or crimping
Cable Diameter Compatible 4.5mm-7mm
Contact Material Copper alloy with gold plating
Contact Resistance 5m

LP12 5A 6Pin Male Plug IP67 Waterproof Power Connector Product Specifications

Rated Voltage 250V AC
Supply Voltage Up to 250V (AC/DC)
Product Type Waterproof Power Connector
Dimension (L*W*H) Approx. 60mm (L) x 18mm (Diameter)
IP Rating IP67
Operating Temperature -20C to +85C
Input 6 Pin male interface
Size LP12 Series
Components Male plug housing, 6-pin contacts, sealing ring
Output 6 Pin electrical contacts
Usage Outdoor and industrial equipment power connection
Current Rating 5A
Application LED lighting, industrial automation, instrumentation, power supply connections
Weight Approx. 20g
Interface Screw terminal / Solder type (internal termination)
Power Supply Electrical
Frequency 50/60 Hz
Capacity 5A current handling per contact
Features Waterproof, dustproof, vibration resistant, corrosion resistant
Function Male Plug Power Connector for reliable electrical connection
Color Black
Thickness Standard (see dimensions)
Power Source Wired electrical connection

Waterproof Sealing Equipped with rubber O-ring
Mounting Style Inline / Cable mount
Flame Retardant Grade UL94-V0
Shell Material High quality nylon PA66
Insulation Resistance 500M at 500V DC
Mating Cycle Durability >500 times insertion/extraction
Locking Mechanism Threaded coupling
Connection Method Soldering or crimping
Cable Diameter Compatible 4.5mm-7mm
Contact Material Copper alloy with gold plating
Contact Resistance 5m

LP12 5A 6Pin Male Plug IP67 Waterproof Power Connector Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Copper needle model (panel fit size):12mm
Connecting Mode:Plug (Male pin)
Mating Cycle:1700 times
Contact Dimension:Phi 1.0x2
Temperature and Humidity:-40+80C; 40C, 85%RH
Wire Specification:UL2464 24AWGx2C

Rugged Design for Harsh Environments

Engineered with durable nylon PA66 and a UL94-V0 flame retardant grade, the LP12 connector withstands tough outdoor and industrial conditions. Its IP67 waterproof and dustproof capabilities ensure dependable performance in rain, dust, or vibration-prone settings, offering longevity and safety every time.

Versatile Applications and Easy Integration

With compatibility for 4.5mm to 7mm cable diameters and support for both solder and crimp connections, this 6-pin power connector suits diverse requirements. Whether used in LED lighting systems, instrumentation, or automation, installation remains straightforward thanks to the threaded locking mechanism.

Superior Electrical Performance

Delivering 5A current per contact with exceptionally low contact resistance (5m) and high insulation resistance (500M at 500V DC), the LP12 connector guarantees efficient and consistent power delivery. Its gold-plated copper contacts maintain reliable connections even after more than 500 mating cycles.

FAQ's of LP12 5A 6Pin Male Plug IP67 Waterproof Power Connector :

Q: How is the LP12 5A 6Pin Male Plug Connector installed?

A: The connector can be installed using either soldering or crimping for internal termination. The cable is inserted and secured, then the plug is locked in place using the threaded coupling mechanism to ensure a waterproof and vibration-resistant seal.

Q: What environments are suitable for using this power connector?

A: This connector is ideal for outdoor and industrial environments such as LED lighting, automation, and instrumentation. Its IP67 waterproof rating and robust build make it suitable for installations exposed to water, dust, or harsh conditions.

Q: When should I select this power connector over others?

A: Choose the LP12 connector when you require a compact, high-durability solution that can handle up to 5A per contact and 250V AC. It's especially beneficial where waterproofing, dust protection, and reliable repeated connections are critical.

Q: Where can this connector be used effectively?

A: The LP12 6Pin Male Plug is commonly used in power supply connections for outdoor LED installations, industrial automation systems, instrumentation setups, and other electrical equipment requiring stable and protected connections.

Q: What is the process for ensuring a waterproof connection with this plug?

A: To achieve IP67-grade waterproofing, make sure the cable diameter matches the connector specification (4.5mm-7mm), use the provided rubber O-ring, and tighten the threaded coupling fully. Proper assembly guarantees water and dust resistance.

Q: How does the connector ensure long-term durability and safety?

A: Constructed with flame-retardant nylon PA66 and gold-plated copper contacts, the plug maintains high conductivity, corrosion resistance, and fire safety. The robust shell and sealing design provide reliable operation through more than 500 mating cycles, even in harsh environments.
