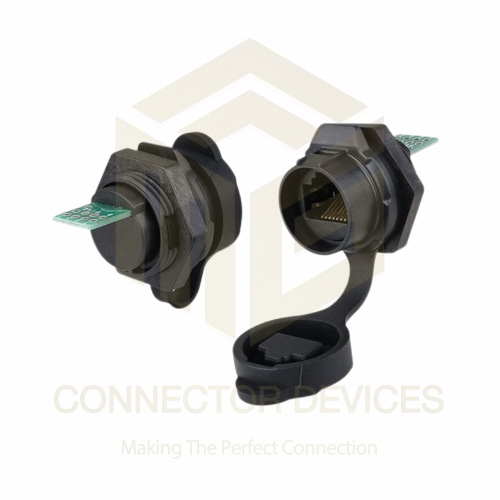

LP16 RJ45 Cat6 Female Socket IP67 Waterproof Ethernet Connector Panel Mount

299.0 INR/Piece

Get a Price/Quote

Product Details:

Usage Ethernet networking, outdoor and industrial data transmission
Interface RJ45 Cat6 Female Socket - 8P8C
IP Rating IP67
Input RJ45 Female Socket
Features Waterproof, dustproof, vibration resistant, panel mount, easy installation
Operating Temperature -25C to +85C
Output RJ45 Female Socket
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP16 RJ45 Cat6 Female Socket IP67 Waterproof Ethernet Connector Panel Mount Price And Quantity

Price 299.0 INR/Piece
Minimum Order Quantity 100 Piece

Cable Diameter Compatibility 5.5mm to 7.5mm
Mating Cycle Durability >500 cycles
Standard Complies with IEC 60603-7
Seal Material Silicone rubber gasket
Flame Retardant UL94-V0
Compliance RoHS Compliant
Mounting Type Panel Mount with threaded locking ring
Shielding Unshielded
Environmental Resistance UV Resistant, Corrosion Resistant
Connector Gender Female to Female (Coupler)
Protection Cap Included Yes
Contact Plating Gold-plated contacts
Material (Body) High quality plastic (PA66)

LP16 RJ45 Cat6 Female Socket IP67 Waterproof Ethernet Connector Panel Mount Product Specifications

IP Rating IP67
Application Industrial automation, outdoor network wiring, data communication
Output RJ45 Female Socket
Function Provides a protected RJ45 Cat6 Ethernet connection in harsh and outdoor environments
Features Waterproof, dustproof, vibration resistant, panel mount, easy installation
Components Panel mount socket, waterproof sealing cap, plastic enclosure
Input RJ45 Female Socket
Supply Voltage Up to 250V AC, 60V DC
Size M16 panel mount
Operating Temperature -25C to +85C
Rated Voltage AC 250V/DC 60V
Dimension (L*W*H) Connector body length approx. 45mm, diameter approx. 19mm (M16)
Usage Ethernet networking, outdoor and industrial data transmission
Weight Approx. 32g
Capacity Cat6 performance (up to 1 Gbps)
Interface RJ45 Cat6 Female Socket - 8P8C
Color Black/Gray
Product Type RJ45 Cat6 Panel Mount Socket Connector
Frequency Ethernet 250 MHz (Cat6)
Current Rating 1.5A Max

Cable Diameter Compatibility 5.5mm to 7.5mm
Mating Cycle Durability >500 cycles
Standard Complies with IEC 60603-7
Seal Material Silicone rubber gasket
Flame Retardant UL94-V0
Compliance RoHS Compliant
Mounting Type Panel Mount with threaded locking ring
Shielding Unshielded
Environmental Resistance UV Resistant, Corrosion Resistant
Connector Gender Female to Female (Coupler)
Protection Cap Included Yes
Contact Plating Gold-plated contacts
Material (Body) High quality plastic (PA66)

LP16 RJ45 Cat6 Female Socket IP67 Waterproof Ethernet Connector Panel Mount Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating voltage:42V
Working temperature:-2585C, 85%RH Max
Insulation Resistance:500Mohm
Contact Resistance:40mohm
Durability:750 cycles
Insertion force:22.25N Max
Standard:Cat6

Superior Waterproof and Durable Design

Engineered for extreme reliability, the LP16 RJ45 Cat6 socket features an IP67-rated enclosure, ensuring protection against water, dust, and vibration. Its high-quality PA66 plastic housing, coupled with a silicone rubber gasket seal, provides exceptional resistance to UV and corrosion, making it perfect for outdoor and industrial applications.

Easy Panel Mount Installation

Designed with convenience in mind, this Ethernet connector panel mount requires simple installation with a threaded locking ring. Whether setting up new systems or upgrading existing infrastructure, the panel mount design allows for secure attachment, while the included sealing cap ensures maximum environmental protection during downtime.

Optimized for High-Performance Networking

Delivering Cat6 performance at speeds up to 1 Gbps and a frequency of 250 MHz, this coupler ensures fast and stable network connections. Gold-plated contacts enhance signal integrity and reliability, supporting advanced industrial automation and mission-critical outdoor networking tasks.

FAQ's of LP16 RJ45 Cat6 Female Socket IP67 Waterproof Ethernet Connector Panel Mount:

Q: How do I install the LP16 RJ45 Cat6 Female Socket on a panel?

A: Installation is straightforward: insert the connector into a pre-drilled 19mm (M16) panel hole, and secure it using the supplied threaded locking ring. Ensure the silicone rubber gasket is positioned to maintain IP67 waterproof sealing, then connect your RJ45 cables for a secure network connection.

Q: What environments is this Ethernet connector suitable for?

A: This connector is ideal for outdoor and industrial environments where exposure to moisture, dust, UV rays, and vibration is expected. Its IP67 rating and robust materials ensure reliable performance in harsh conditions, such as industrial automation sites, outdoor network set-ups, and rugged data communication scenarios.

Q: When should I choose this panel mount Ethernet connector over standard sockets?

A: Opt for this panel mount solution whenever a protected and robust Ethernet connection is required, especially in environments exposed to water, dust, or frequent equipment movement. It offers superior durability, reliable sealing, and easy maintenance compared to standard sockets.

Q: Where can I use this RJ45 connector for maximum benefit?

A: Use this connector in outdoor network cabinets, industrial control panels, or machinery exposed to weather and contaminants. Its waterproof and corrosion-resistant design is especially well-suited for installations demanding high reliability and easy maintenance.

Q: What is the process for maintaining the LP16 RJ45 Cat6 socket?

A: To maintain optimal performance, keep the sealing cap on when not in use and periodically check the gasket for wear. Clean the contacts if necessary, and inspect for any physical damage to ensure ongoing IP67 protection and Cat6 performance.

Q: What are the main benefits of using this Ethernet connector?

A: The main advantages include IP67 waterproofing, simple panel mount installation, high-speed Cat6 data transmission, UV and corrosion resistance, and a robust construction that ensures long service life-even with frequent connection cycles.

Q: Does this connector provide shielding for electromagnetic interference?

A: This particular model is unshielded, but it still maintains signal integrity via gold-plated contacts and quality construction, making it suitable for most industrial and outdoor applications where shielding is not critical.
