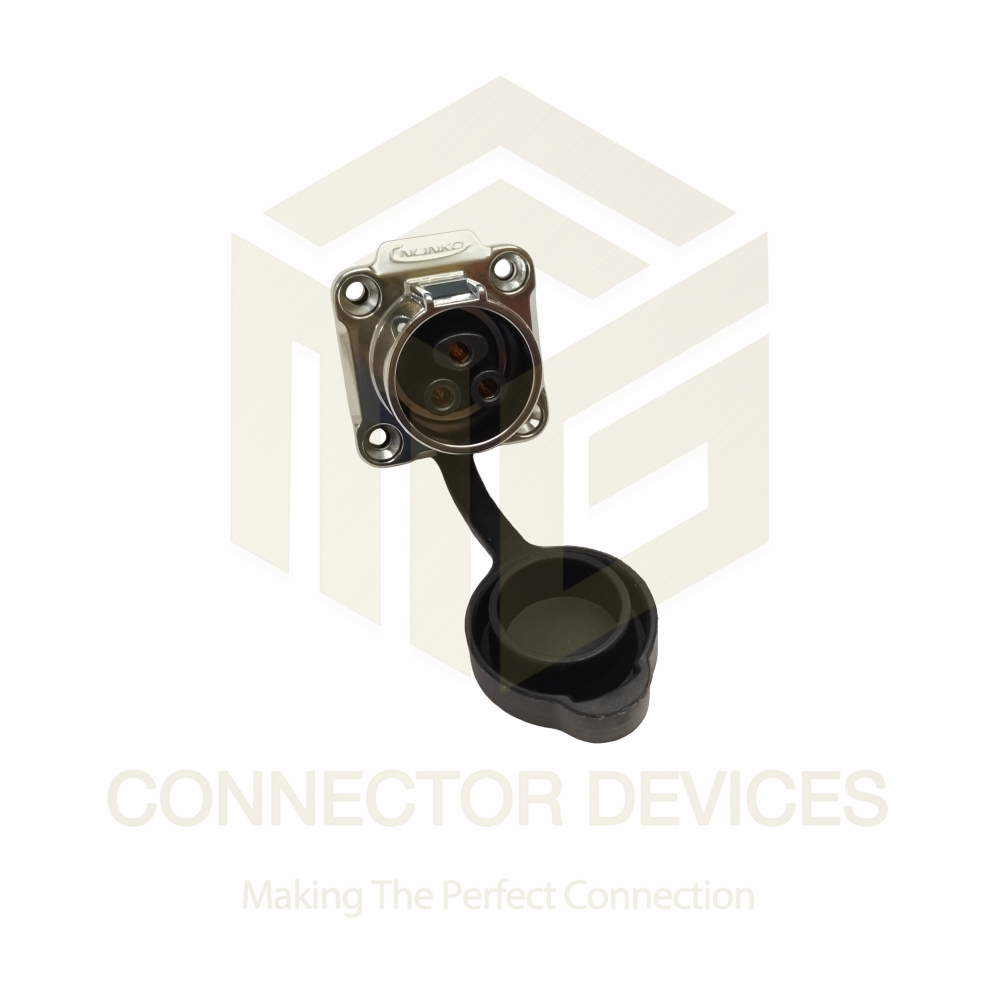

LP20 20A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Metal Shell Screw Terminal

Name: LP20 20A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Metal Shell Screw Terminal
Brand: CONNECTOR DEVICES
Price: 495 INR
Availability: InStock

495 INR/Piece

Get a Price/Quote

Product Details:

Power Source Wired Connection
Components Flange mount socket, metal shell, screw terminals
Interface 3 Pin Screw Terminal
Output 3 Pin Power Output
Power Supply AC/DC
Features Waterproof, dustproof, rugged metal shell, anti-vibration, screw lock
Input Panel Flange Mount Female Socket
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP20 20A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Metal Shell Screw Terminal Price And Quantity

Price 495 INR/Piece
Minimum Order Quantity 100 Piece

Mounting Type Panel Flange Mount with Four Hole Fixation
Mating Cycles >500 cycles
Locking System Screw Coupling
Shell Material Zinc Alloy with Nickel Plating
Environmental Protection UV-resistant, corrosion and salt spray resistant
Contact Material Brass with Gold Plating
Withstand Voltage 1500V AC/minute
Cable Diameter Range 6mm to 12mm
Insulation Resistance 2000M at 500V DC
Storage Temperature -40C to +85C
Connector Type Female Socket, Flange Mount
Contact Resistance 2.5m

LP20 20A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Metal Shell Screw Terminal Product Specifications

Usage Indoor/Outdoor Power Distribution, Industrial Equipment hookup
IP Rating IP67
Rated Voltage 500V AC
Product Type Waterproof Power Connector
Weight Approx. 65g
Operating Temperature -40C to +80C
Capacity 20A (per contact)
Interface 3 Pin Screw Terminal
Frequency 50/60 Hz
Current Rating 20A
Color Silver/Black
Features Waterproof, dustproof, rugged metal shell, anti-vibration, screw lock
Power Supply AC/DC
Power Source Wired Connection
Output 3 Pin Power Output
Dimension (L*W*H) Approx. 39.1 x 29.5mm (Mounting Flange diameter x Height)
Supply Voltage 250V to 500V
Application Audio, LED, Industrial, Automation, Machinery, Energy, Test Equipment
Input Panel Flange Mount Female Socket
Components Flange mount socket, metal shell, screw terminals
Size 20mm connector series
Function Electrical power and signal connection

Mounting Type Panel Flange Mount with Four Hole Fixation
Mating Cycles >500 cycles
Locking System Screw Coupling
Shell Material Zinc Alloy with Nickel Plating
Environmental Protection UV-resistant, corrosion and salt spray resistant
Contact Material Brass with Gold Plating
Withstand Voltage 1500V AC/minute
Cable Diameter Range 6mm to 12mm
Insulation Resistance 2000M at 500V DC
Storage Temperature -40C to +85C
Connector Type Female Socket, Flange Mount
Contact Resistance 2.5m

LP20 20A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Metal Shell Screw Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Number of Pins:4
Rated Current:20A
Operating Voltage:500V
Withstanding voltage:2500V
Mating cycle:1700 Times
Contact resistance:< 1.0mOhm
Temperature and humidity:-40+80C; 40C, 85%RH
Contact dimension:Phi 2.7x3

Robust and Weatherproof Construction

Engineered with a rugged metal shell and IP67 waterproof rating, the LP20 connector resists dust, water, UV exposure, and harsh environmental conditions. Its corrosion- and salt spray-resistant finish makes it dependable for industrial and outdoor use, ensuring gear stays operational in demanding settings.

Flexible Applications Across Industries

With support for both AC and DC power supply at voltages up to 500V and current ratings of 20A per contact, this socket is suitable for audio installations, LED lighting systems, automation, machinery, and energy applications. Its wide cable compatibility and secure flange mount make integration seamless in various industrial panels and equipment.

Integrated Safety and Durability Features

The screw coupling locking system, high insulation resistance, and gold-plated brass contacts provide reliable, low-loss connections while preventing accidental disconnects. The socket can endure more than 500 mating cycles, maintains stable performance from -40C to +80C, and features anti-vibration properties to enhance longevity.

FAQ's of LP20 20A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Metal Shell Screw Terminal:

Q: How is the LP20 20A 3-Pin Female Socket typically installed?

A: Installation involves panel flange mounting using four-hole fixation. Wires are connected through the screw terminals, and the secure screw coupling ensures a stable fit to the mating connector.

Q: What environments or industries is this connector most suitable for?

A: Its waterproof, dustproof, UV-resistant, and rugged design makes it perfect for both indoor and outdoor use in industrial automation, energy systems, machinery, test equipment, audio set-ups, and LED lighting applications.

Q: When should I use the LP20 connector over other types?

A: Choose the LP20 when you need a high current (20A), high voltage (up to 500V) connection with maximum environmental protection (IP67) and robust mechanical reliability in demanding industrial or outdoor conditions.

Q: Where should the LP20 socket be mounted for optimal performance?

A: For best performance, mount it on a stable panel or enclosure where the flange can be firmly secured using all four fixation holes, ensuring the cable diameter fits within the 6mm-12mm range.

Q: What is the process for connecting cables to the LP20 socket?

A: Strip the cable ends, insert them into the appropriate screw terminal positions, then tighten each screw to secure the connection. Ensure the cable fits the specified diameter and all terminals are firmly attached for reliable conductivity.

Q: How does the LP20 socket ensure long-term connection reliability?

A: Its gold-plated brass contacts prevent corrosion and maintain low contact resistance, while the metal shell, screw lock, and anti-vibration features sustain over 500 mating cycles even in harsh settings.

Q: What benefits does the IP67 rating provide for users of this connector?

A: The IP67 rating ensures complete protection against dust ingress and powerful water jets, which safeguards connections from environmental hazards and prolongs device lifespan in outdoor or wet industrial locales.
