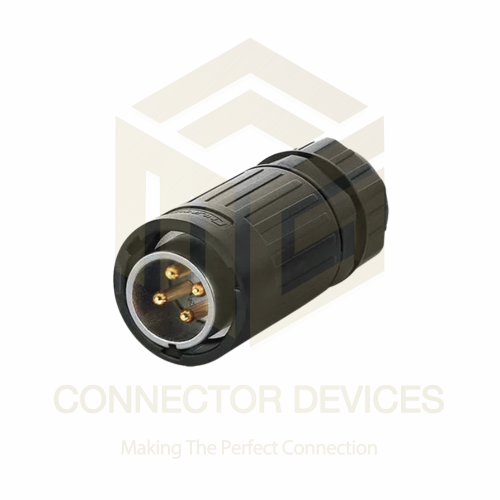

YA20 500V 20A 4Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

Name: YA20 500V 20A 4Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 454.0 INR
Availability: InStock

454.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature -40C to +80C
Output 4 pin connection to matching female connector
Power Source External AC/DC power supply
Interface 4-pin male plug
Power Supply AC/DC compatible
Usage Power transmission and distribution
Features Waterproof, dustproof, robust, corrosion-resistant, reliable connection
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YA20 500V 20A 4Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Price 454.0 INR/Piece
Minimum Order Quantity 100 Piece

Contact Material Copper alloy, tin plated
Mating Cycle Durability >500 times
Flame Retardancy UL94 V-0
Shell Material PC+PBT plastic with metal thread sleeve
Mounting Style Cable mount or panel mount with locking thread
Cable Diameter Range 6-12mm
Vibration Resistance IEC 60512-6-4 standard
Connection Method Solder terminals
Sealing Method Rubber gasket/O-ring included
Locking System Screw/threaded coupling
Pin Layout 4 pins, circular pattern
Ingress Protection Dust tight, submersible up to 1m

YA20 500V 20A 4Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Dimension (L*W*H) Approx. 85mm(L) x 38mm(D)
Weight Approx. 120g
IP Rating IP67
Components Plastic and metal shell, 4 solder terminals
Rated Voltage 500V
Current Rating 20A
Features Waterproof, dustproof, robust, corrosion-resistant, reliable connection
Input 4 pin male plug
Power Supply AC/DC compatible
Product Type Power connector plug
Capacity 20A current
Interface 4-pin male plug
Supply Voltage Up to 500V
Color Black and silver
Size 20mm shell size
Usage Power transmission and distribution
Frequency 50/60Hz compatible
Operating Temperature -40C to +80C
Thickness Shell thickness approx. 2.5mm
Application Automation, machinery, outdoor lighting, electrical panels
Power Source External AC/DC power supply
Function Waterproof 4-pin power connection for industrial and outdoor environments
Output 4 pin connection to matching female connector

Contact Material Copper alloy, tin plated
Mating Cycle Durability >500 times
Flame Retardancy UL94 V-0
Shell Material PC+PBT plastic with metal thread sleeve
Mounting Style Cable mount or panel mount with locking thread
Cable Diameter Range 6-12mm
Vibration Resistance IEC 60512-6-4 standard
Connection Method Solder terminals
Sealing Method Rubber gasket/O-ring included
Locking System Screw/threaded coupling
Pin Layout 4 pins, circular pattern
Ingress Protection Dust tight, submersible up to 1m

YA20 500V 20A 4Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Contact dimension:phi 2.7x4
Insertion and Extraction Force:8.0N Max
Temperature and humidity:-40+80C; 40C, 85%RH
Mating cycle:> 1700 Times
Screw torque:42-53(N.m) Torque wrench200(N.m)

Designed for Demanding Environments

Engineered for use in industrial automation, machinery, outdoor lighting, and electrical panel applications, the YA20 connector offers reliable performance even in harsh environments. Its robust shell, IP67 waterproofing, and corrosion-resistant construction guarantee long service life in challenging conditions.

Secure and Flexible Installation Options

The YA20 connector supports both cable and panel mounting with a secure threaded locking system. The included rubber gasket and O-ring enhance sealing, while the 6-12mm cable diameter range provides installation flexibility. The compact size and efficient design make integration straightforward and dependable.

FAQ's of YA20 500V 20A 4Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How does the YA20 4-pin plug ensure a waterproof and dustproof connection?

A: The YA20 4-pin plug is designed with an IP67 rating, featuring a rubber gasket and O-ring that provide a tight seal, making it dust tight and capable of being submerged up to 1 meter. Its sturdy plastic and metal shell further enhance protection against harsh environmental elements.

Q: What types of applications is this connector suitable for?

A: This connector is ideal for power transmission and distribution in automation systems, machinery, outdoor lighting, and electrical panels where dependable and safe connections are crucial. Its waterproof, dustproof, and vibration-resistant design suits demanding indoor and outdoor installations.

Q: When should I choose panel mounting versus cable mounting for installation?

A: Panel mounting is best when you need to attach the connector directly to control panels, distribution boxes, or equipment surfaces, while cable mounting is suitable for flexible power connections along cabling paths. Both options provide secure, vibration-resistant attachment with a screw-threaded system.

Q: Where can the YA20 connector be reliably used?

A: The YA20 connector can be used in both indoor and outdoor settings, including industrial sites, machinery, automation panels, and outdoor lighting systems. Its robust, waterproof, and flame-retardant construction withstands varied weather and operating conditions, from -40C to +80C.

Q: What is the process for wiring this 4-pin male plug?

A: Wiring involves preparing 6-12mm diameter cables, soldering each power line to the tin-plated copper alloy terminals, securing the connector by locking the threaded coupling, and ensuring the gasket is correctly seated for waterproofing. Always follow electrical safety guidelines during installation.

Q: How does this plug benefit industrial users?

A: Industrial users benefit from the plug's high current (20A) and voltage (500V) capacity, long mating cycle durability (>500 times), and resistance to harsh elements. It delivers stable, low-loss power connections for critical operations, increasing reliability and minimizing maintenance issues.
