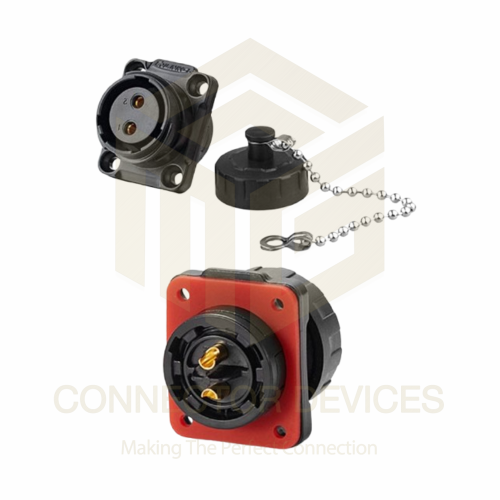

YM20 500V 20A 2Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal

Name: YM20 500V 20A 2Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 322.0 INR
Availability: InStock

322.0 INR/Piece

Get a Price/Quote

Product Details:

Usage Power Transmission
Output Solder Terminal
Interface Screw Lock Coupling
Features Waterproof, Dustproof, Anti-corrosion, Flame Retardant
Components Plastic Shell, Metal Contacts, Silicone Gasket
Power Source Wired Connection
Input 2 Pin Female Socket
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 500V 20A 2Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Price 322.0 INR/Piece
Minimum Order Quantity 100 Piece

Temperature Range -40C to +85C
Contact Material Copper Alloy with Silver Plating
Contact Resistance 5m
Mechanical Life > 500 Mating Cycles
Number of Pins 2 Pin
Sealing Gasket Silicone
Shell Material High-Strength Plastic (PA66 or Equivalent)
Cable Diameter Range 6 mm - 12 mm
Mounting Type Panel/Chassis Mount
Compliance RoHS, CE
Flame Retardancy UL94 V-0
Connector Type Female Socket
Insulation Resistance >= 2000 M at 500V DC
Voltage Withstand > 1500V(AC/min)

YM20 500V 20A 2Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Dimension (L*W*H) Approx. 26mm 26mm 65mm
Size YM20 standard (outer diameter approx. 26mm)
Thickness Shell thickness approx. 2mm
Input 2 Pin Female Socket
Capacity 20A Max Current
Color Black
Components Plastic Shell, Metal Contacts, Silicone Gasket
Power Source Wired Connection
Usage Power Transmission
Features Waterproof, Dustproof, Anti-corrosion, Flame Retardant
Weight Approx. 70g
Rated Voltage 500V
Current Rating 20A
Power Supply AC/DC
Application Industrial Power, Outdoor Equipment, Automation Systems
Interface Screw Lock Coupling
Output Solder Terminal
Function Waterproof Power Connection
Product Type Waterproof Power Connector
IP Rating IP67
Supply Voltage 500V Max

Temperature Range -40C to +85C
Contact Material Copper Alloy with Silver Plating
Contact Resistance 5m
Mechanical Life > 500 Mating Cycles
Number of Pins 2 Pin
Sealing Gasket Silicone
Shell Material High-Strength Plastic (PA66 or Equivalent)
Cable Diameter Range 6 mm - 12 mm
Mounting Type Panel/Chassis Mount
Compliance RoHS, CE
Flame Retardancy UL94 V-0
Connector Type Female Socket
Insulation Resistance >= 2000 M at 500V DC
Voltage Withstand > 1500V(AC/min)

YM20 500V 20A 2Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Contact dimension:Phi 2.7*2
Temperature and humidity:-4080C; 40C, 85%RH
Operating Voltage:500V
Withstanding voltage:2500V
Screw torque:42-53 (N.m)
Insertion and extraction force:4.0N Max
Mating cycle:1700 Times

Industrial-Grade Waterproof Power Connection

Engineered for demanding environments, the YM20 female socket delivers waterproof power connection with an IP67 rating, making it suitable for outdoor and industrial use. Its silicone gasket and high-strength PA66 plastic shell create a reliable seal against moisture, dust, and corrosion, while supporting both AC and DC power supply.

Secure and Safe Operation

With screw lock coupling, UL94 V-0 flame retardancy, and over 1500V withstand voltage capability, this connector ensures secure mechanical and electrical connections. The design supports insulation resistance of over 2000M at 500VDC, ensuring user safety and long-lasting operation.

Easy Installation and Versatile Application

Designed for panel or chassis mount with a straightforward solder terminal output, the YM20 socket fits cable diameters from 6mm to 12mm and has a mechanical life expectancy exceeding 500 mating cycles. Its versatility makes it an excellent choice for distributors, exporters, manufacturers, and system integrators across multiple industries.

FAQ's of YM20 500V 20A 2Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How do I install the YM20 2Pin Female Socket on my equipment?

A: The YM20 socket is designed for panel or chassis mounting. Simply cut an appropriately sized hole in your panel, secure the socket using the screw lock coupling, and solder your power cables to the terminals. Ensure that cable diameters range between 6mm and 12mm for the best fit.

Q: What types of environments is the YM20 2Pin connector suitable for?

A: This connector is ideal for outdoor and industrial environments due to its IP67 waterproof rating, high-strength PA66 plastic shell, and dustproof, anti-corrosive features. It functions reliably in temperatures ranging from -40C to +85C, making it perfect for power transmission in challenging conditions.

Q: When should I consider using this connector over other types?

A: Use the YM20 2Pin Female Socket when you need a robust, waterproof, flame-retardant connection capable of handling up to 500V and 20A in harsh environments. Its mechanical durability and safety compliance make it advantageous for applications requiring secure and long-lasting connections.

Q: What benefits does the silver-plated copper alloy contact material provide?

A: Silver-plated copper alloy offers superior electrical conductivity and corrosion resistance. This ensures efficient power transmission, low contact resistance (5m max), and an extended service life, particularly beneficial in demanding industrial or outdoor settings.

Q: Where can the YM20 2Pin Female Socket be used?

A: It is versatile for use in industrial power distribution, outdoor machinery, automation systems, and various applications requiring reliable panel-mounted connectors. It's suitable for both AC and DC power up to 500V and 20A, making it popular among exporters, manufacturers, and other industry professionals in India and globally.

Q: What is the installation process for safe and efficient use?

A: Begin by preparing the mounting panel or chassis with the correct cutout. Insert the connector, fasten using the screw lock system, and connect cables by soldering to terminals. Make sure to check insulation, sealing, and proper cable diameter for optimal sealing and safety.
