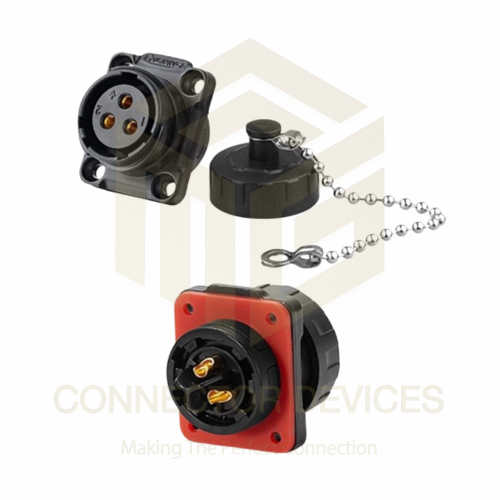

YM20 500V 20A 3Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal

Name: YM20 500V 20A 3Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 369.0 INR
Availability: InStock

369.0 INR/Piece

Get a Price/Quote

Product Details:

Power Source Connection to external power
IP Rating IP67
Usage Outdoor and industrial power connections
Operating Temperature -40C to +85C
Components Connector body, internal terminals, sealing ring
Power Supply AC/DC Compatible
Input 3-pin female connection
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 500V 20A 3Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 369.0 INR/Piece

Number of Pins 3
Contact Type Solder Terminal
Shell Material High-strength plastic
Cable Diameter Range 6mm - 12mm
Mounting Type Panel mount
Contact Material Copper alloy with nickel plating
Withstand Voltage 1500V AC/minute
Flame Retardant Grade UL94-V0
Ingress Protection Waterproof and dustproof to IP67 standard
Locking Mechanism Bayonet locking
Insulation Resistance >2000M @ 500VDC
Mating Cycle Durability >1000 cycles

YM20 500V 20A 3Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Size YM20 series standard
Features Waterproof, dustproof, robust plastic shell, easy installation, anti-corrosion
Capacity 20A
Dimension (L*W*H) Approx. 80mm (L) x 30mm (Diameter)
Product Type Waterproof Power Connector
Interface 3-pin socket (female)
Weight Approx. 80g
Frequency 50/60Hz
Output To compatible 3-pin male plug
IP Rating IP67
Current Rating 20A
Rated Voltage 500V
Power Source Connection to external power
Color Black
Thickness Approx. 3 mm shell thickness
Power Supply AC/DC Compatible
Input 3-pin female connection
Application LED lighting, industrial equipment, marine, outdoor installations
Components Connector body, internal terminals, sealing ring
Operating Temperature -40C to +85C
Supply Voltage Up to 500V
Function Waterproof power connection for electrical equipment
Usage Outdoor and industrial power connections

Number of Pins 3
Contact Type Solder Terminal
Shell Material High-strength plastic
Cable Diameter Range 6mm - 12mm
Mounting Type Panel mount
Contact Material Copper alloy with nickel plating
Withstand Voltage 1500V AC/minute
Flame Retardant Grade UL94-V0
Ingress Protection Waterproof and dustproof to IP67 standard
Locking Mechanism Bayonet locking
Insulation Resistance >2000M @ 500VDC
Mating Cycle Durability >1000 cycles

YM20 500V 20A 3Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Contact dimension:Phi 2.7*3
Temperature and humidity:-4080C; 40C, 85%RH
Withstanding voltage:2500V
Insertion and extraction force:6.0N Max
Screw torque:42-53 (N.m)
Mating cycle:1700 Times

Exceptional Waterproof and Dustproof Performance

Designed with an ingress protection rating of IP67, the YM20 3-pin female socket offers superior waterproof and dustproof capabilities. Its durable sealing ensures uninterrupted operation in harsh weather and industrial environments, safeguarding both equipment and user safety. This makes it an excellent choice for applications where moisture, rainfall, or dust exposure is a frequent concern.

Long-lasting Durability and Easy Installation

The socket features a strong plastic shell with a thickness of approximately 3mm and a secure bayonet locking mechanism. With more than 1,000 mating cycles and high-grade copper alloy contacts, the connector withstands frequent use while maintaining solid electrical connections. Its panel-mount design and straightforward solder terminals make installation quick and reliable for professionals.

FAQ's of YM20 500V 20A 3Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How do I install the YM20 3Pin Female Socket for my equipment?

A: Install the YM20 socket by mounting it onto a suitable panel cutout, inserting the cable (6mm-12mm diameter), and soldering the wires onto the terminal contacts. The bayonet locking mechanism ensures a fast and secure connection with the matching 3-pin male plug.

Q: What type of power applications is this connector suitable for?

A: The YM20 3Pin Female Socket is designed for outdoor and industrial power connections, including LED lighting, industrial machinery, marine equipment, and other installations requiring up to 500V and 20A. Its robust construction makes it suitable for high-demand scenarios.

Q: When should I choose an IP67-rated connector like this one?

A: Select an IP67-rated connector, such as the YM20, when you need protection against dust ingress and temporary immersion in water. It's ideal for situations where environmental exposure could compromise standard connectors, ensuring reliable performance outdoors.

Q: Where can I use the YM20 socket for optimal performance?

A: The connector is best used in environments exposed to dust, moisture, or rain, such as outdoor lighting installations, marine settings, or on industrial equipment panels. Its rugged design withstands challenging conditions typical in these areas.

Q: What is the process for ensuring a waterproof connection with this socket?

A: To achieve a waterproof seal, ensure the cable diameter is within the 6mm-12mm range and assemble the sealing ring tightly. Proper panel mounting and secure bayonet locking with a compatible male plug ensure the IP67 protection is maintained.

Q: What are the primary benefits of using this 3-pin female socket?

A: Key benefits include high electrical capacity (20A/500V), excellent environmental protection (IP67 and flame retardant), durability through over 1,000 mating cycles, resistance to corrosion, and reliable power transfer in outdoor or industrial applications.
