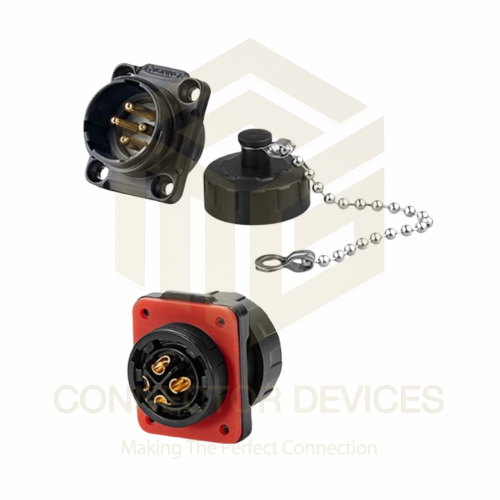

YM20 500V 20A 4Pin Male Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal

Name: YM20 500V 20A 4Pin Male Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 330.0 INR
Availability: InStock

330.0 INR/Piece

Get a Price/Quote

Product Details:

Power Source Electrical
Power Supply AC/DC
Components Plastic Shell, Solder Contact Pins
Operating Temperature -25C to +85C
Interface 4 Pin Solder
Usage Outdoor Electrical Connections
Features Waterproof, Dustproof, Corrosion Resistant
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 500V 20A 4Pin Male Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 330.0 INR/Piece

Mounting Type Panel Mount
Waterproof Level IP67 (Mated Condition)
Flame Retardant Level UL94 V-0
Number of Pins 4
Contact Resistance 5 m
Shell Material High Grade Plastic
Connection Method Solder
Insulation Resistance >2000 M
Cable Diameter Range 6-12mm
Mechanical Life >500 Mating Cycles
Contact Material Copper Alloy with Nickel Plating

YM20 500V 20A 4Pin Male Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Current Rating 20A
Size YM20
Power Supply AC/DC
Capacity 20A
Components Plastic Shell, Solder Contact Pins
Application Automation Equipment, LED, Power Distribution
Rated Voltage 500V
Power Source Electrical
Weight Approx. 60g
Features Waterproof, Dustproof, Corrosion Resistant
Usage Outdoor Electrical Connections
Operating Temperature -25C to +85C
Dimension (L*W*H) 68 mm x 28 mm x 28 mm
Interface 4 Pin Solder
Function Power Connector
IP Rating IP67
Color Black
Frequency 50/60Hz
Thickness Standard
Input 4 Pin Male Socket
Supply Voltage 500V
Product Type Waterproof Power Connector
Output Solder Terminal

Mounting Type Panel Mount
Waterproof Level IP67 (Mated Condition)
Flame Retardant Level UL94 V-0
Number of Pins 4
Contact Resistance 5 m
Shell Material High Grade Plastic
Connection Method Solder
Insulation Resistance >2000 M
Cable Diameter Range 6-12mm
Mechanical Life >500 Mating Cycles
Contact Material Copper Alloy with Nickel Plating

YM20 500V 20A 4Pin Male Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Insertion and extraction force:8.2N Max
Mating cycle:1700 Times
Screw torque:42-53 (N.m)
Temperature and humidity:-4080C; 40C, 85%RH

Superior Waterproofing for Outdoor Reliability

Engineered with an IP67-rated plastic shell and sealed construction, the YM20 connector offers complete protection against dust and water ingress when mated. Its reliability in wet, outdoor, or challenging industrial settings makes it ideal for equipment exposed to rain, dust, or humidity. The waterproof feature ensures continued performance with minimal maintenance, reducing downtime and repair costs.

Robust Electrical Performance and Safety

With a rated voltage of 500V and a current capacity of 20A, the YM20 is built for demanding power applications. Insulated with high-grade plastic and featuring copper alloy contacts with nickel plating, it provides excellent insulation resistance and low contact resistance, enhancing operational safety and signal integrity. The UL94 V-0 flame retardant level offers an added layer of safety.

Easy Installation and Versatile Application

This panel-mount connector utilizes solder terminals for strong, lasting connections. Its broad cable diameter support (6-12mm) and compact dimensions (68 x 28 x 28 mm) make it versatile for various installations. Whether used in automation, LED setups, or distributed power solutions, the YM20 is straightforward to install, fitting seamlessly into different industrial and commercial systems.

FAQ's of YM20 500V 20A 4Pin Male Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How is the YM20 4Pin Male Socket installed?

A: The YM20 connector is a panel-mount type and is installed by securing it to a panel using the built-in mounting features. Electrical conductors are attached by soldering wires to the 4-pin solder terminals, ensuring stable and secure contacts.

Q: What are the main benefits of using an IP67 waterproof connector like the YM20?

A: The IP67 rating protects the connector from dust and immersion in water up to 1 meter depth, making it highly reliable for outdoor and harsh environments. This reduces maintenance requirements and prevents electrical failures caused by moisture ingress.

Q: Where can the YM20 4Pin Male Socket be effectively used?

A: This connector is suitable for outdoor electrical connections in power distribution systems, automation equipment, LED installations, and industrial machinery, particularly where exposure to water, dust, or corrosive environments is a concern.

Q: What is the mechanical life of the YM20 connector, and how does it impact usage?

A: The connector is rated for over 500 mating cycles. This means it can be connected and disconnected multiple times without significant wear, supporting long-term, repeatable use in maintenance-intensive applications.

Q: How does the YM20 ensure safe electrical performance under high voltage and current?

A: The YM20 is designed for up to 500V and 20A. It features UL94 V-0 flame retardant plastic and contacts made from copper alloy with nickel plating, delivering high insulation resistance (>2000 M) and low contact resistance (5 m), which safeguard against electrical malfunctions.

Q: What cable diameters can the YM20 accommodate, and why is this important?

A: The connector supports cable diameters from 6mm to 12mm. This wide range allows compatibility with various cable sizes, enhancing its versatility for different wiring requirements and reducing installation constraints.
