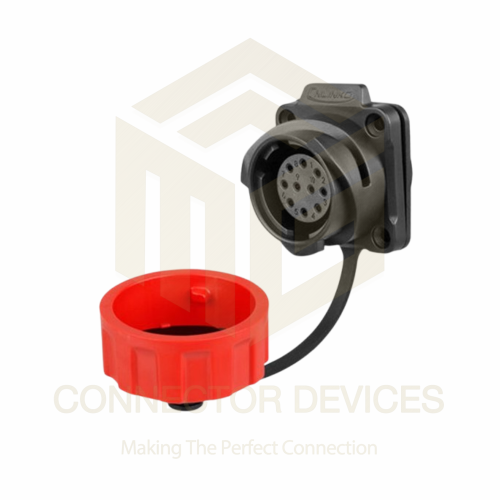

YM24 10A 10Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal

Name: YM24 10A 10Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 885.0 INR
Availability: InStock

885.0 INR/Piece

Get a Price/Quote

Product Details:

Interface Solder terminal
Usage Waterproof outdoor power distribution, industrial equipment
Operating Temperature -40C to +85C
IP Rating IP67
Components Plastic shell, Solder pin terminals, IP67 sealing gasket
Power Source External electrical supply
Power Supply Electric
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM24 10A 10Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Price And Quantity

Price 885.0 INR/Piece
Minimum Order Quantity 100 Piece

Environmental Protection UV resistant
Storage Temperature -40C to +85C
Contact Resistance 5m
Mating Cycle 500 cycles
Number of Pins 10
Surface Treatment Nickel-plated contacts
Mechanical Locking Bayonet locking mechanism
Contact Material Copper alloy, gold-plated
Insulation Resistance >=2000M (at 500V DC)
Withstanding Voltage 1500V AC/min
Connector Gender Female
Flame Resistance UL94-V0
Sealing Type Rubber gasket
Termination Type Solder terminal
Mount Type Flange mount (Panel mount)
Shell Material Plastic engineering material (PA66 or equivalent)

YM24 10A 10Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Product Specifications

Output Up to 10-pin / up to 10A output via solder terminals
Application Industrial, Automation, Power Equipment, Lighting
IP Rating IP67
Capacity 10A Max per contact
Operating Temperature -40C to +85C
Features Waterproof, Dustproof, Flange mount, Plastic shell, Easy installation
Frequency Not frequency dependent (Power)
Weight Approx. 30g
Product Type Female Socket Power Connector
Dimension (L*W*H) Flange diameter ~36mm; Depth ~45mm
Input Up to 10-pin / up to 10A input via solder terminals
Supply Voltage 500V AC
Function Power Connector for electrical connection
Current Rating 10A per pin
Color Black (Shell)
Power Supply Electric
Size YM24 Standard (Outer Diameter ~24mm)
Rated Voltage 500V AC
Components Plastic shell, Solder pin terminals, IP67 sealing gasket
Power Source External electrical supply
Usage Waterproof outdoor power distribution, industrial equipment
Interface Solder terminal

Environmental Protection UV resistant
Storage Temperature -40C to +85C
Contact Resistance 5m
Mating Cycle 500 cycles
Number of Pins 10
Surface Treatment Nickel-plated contacts
Mechanical Locking Bayonet locking mechanism
Contact Material Copper alloy, gold-plated
Insulation Resistance >=2000M (at 500V DC)
Withstanding Voltage 1500V AC/min
Connector Gender Female
Flame Resistance UL94-V0
Sealing Type Rubber gasket
Termination Type Solder terminal
Mount Type Flange mount (Panel mount)
Shell Material Plastic engineering material (PA66 or equivalent)

YM24 10A 10Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting mode:latching lock
Contact diameter:phi 3.0x3
Operating voltage(AC.V.rms):500V
Withstand voltage(AC.V)1min:2500V
Temperature and humidity:-4080C, 40C, 85%RH
Mating cycle:1700 times

Industrial-Grade Performance

Engineered for rugged environments, this connector's flame-retardant PA66 shell and gold-plated copper alloy contacts withstand mechanical stress and high voltages. Its IP67 rating ensures complete protection against dust and water ingress, making it a dependable choice for outdoor and industrial power applications.

Flexible Installation & Secure Locking

The flange mount design enables efficient panel installation with minimal effort, while the bayonet locking mechanism provides a secure and vibration-resistant connection. Its solder terminal interface supports straightforward wiring, streamlining your workflow and reducing installation time.

Reliable & Durable Electrical Solution

Rated for up to 500V AC and 10A per pin, this connector ensures consistent performance across multiple applications. The nickel-plated contacts, combined with UV resistance and an operating temperature range of -40C to +85C, make it suitable for long-term, high-reliability deployments.

FAQ's of YM24 10A 10Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal:

Q: How is the YM24 10A 10Pin Female Socket installed?

A: The connector is designed for flange (panel) mounting using its outer flange. Simply prepare the mounting surface with appropriate holes, secure the connector using screws, and solder your wires to the solder terminal pins according to your wiring diagram.

Q: What environments is this connector suitable for?

A: Thanks to its IP67 waterproof and dustproof rating, flame resistance (UL94-V0), and UV protection, the YM24 socket is suitable for outdoor, industrial, and harsh environments where reliability and environmental sealing are critical.

Q: When should I use a connector with solder terminals?

A: Use solder terminals when you need a secure, vibration-resistant electrical connection with minimal contact resistance. Soldered joints are ideal for permanent or semi-permanent installations typical in power, automation, and lighting equipment.

Q: Where can this connector be used in my setup?

A: It is ideal for panel-mount applications in outdoor power distribution, industrial machinery, lighting installations, and automation systems where you need to connect up to 10 circuits in a compact, waterproof form factor.

Q: What benefit does the bayonet locking mechanism provide?

A: The bayonet locking system offers a fast, reliable connection that resists accidental disconnection and mechanical vibration, ensuring your power link remains secure even in high-motion or outdoor environments.

Q: How does the IP67 rating benefit my application?

A: An IP67 rating means the connector is entirely dust-tight and protected against immersion in water up to 1 meter for 30 minutes. This ensures dependable operation in rain, wash-down, or high-humidity conditions.

Q: What is the process for wiring the contacts?

A: To wire the connector, strip your wire ends, insert them into the appropriate solder terminal pins, and solder them in place. Ensure correct pin mapping based on your system requirements, then verify all connections before installing the connector into the panel.
