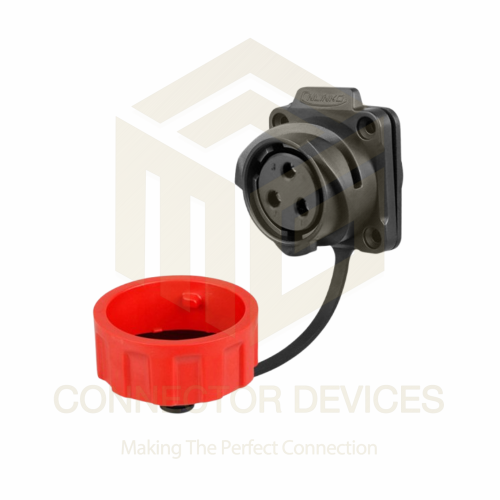

YM24 45A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal

Name: YM24 45A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 999.0 INR
Availability: InStock

999.0 INR/Piece

Get a Price/Quote

Product Details:

Output Connector Interface
Components Plastic Shell, Solder Terminals, Flange Mount
Input 3-Pin Female
Interface 3-Pin Flange Mount Female Socket
Operating Temperature -40C to +105C
Features Waterproof, Dustproof, Durable, Easy Maintenance, Solder Connect
Power Supply Solder Terminal
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM24 45A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 999.0 INR/Piece

Salt Spray Resistance 500 hours
Vibration Resistance IEC 60512-6-4
Shell Material High-Strength Thermoplastic (PA66)
Locking System Bayonet Coupling
Flame Retardant Grade UL94-V0
Contact Material Copper Alloy with Silver Plating
Connector Gender Female
Number of Pins 3
Ingress Protection Time 30 mins @ 1m under water
RoHS Compliant Yes
Cable Diameter Range 9mm - 14mm
Insulation Resistance >2000 M at 500VDC
Dielectric Withstand Voltage 1500V AC/minute
Mounting Type Panel / Flange Mount
Connector Standard YM24 Series

YM24 45A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Product Specifications

Power Source Wired
IP Rating IP67
Color Black
Thickness Shell thickness approx. 2.0mm
Application Industrial Equipment, Power Distribution, Outdoor Lighting, Automation
Frequency 50/60Hz
Size YM24 Form Factor
Usage Outdoor/Indoor Waterproof Power Connections
Capacity 45A Max Current
Power Supply Solder Terminal
Weight Approx. 89g
Features Waterproof, Dustproof, Durable, Easy Maintenance, Solder Connect
Function Power Connection
Operating Temperature -40C to +105C
Dimension (L*W*H) 65mm x 34mm x 34mm (without mounting flange)
Rated Voltage 500V AC/DC
Interface 3-Pin Flange Mount Female Socket
Current Rating 45A
Input 3-Pin Female
Supply Voltage Up to 500V
Components Plastic Shell, Solder Terminals, Flange Mount
Output Connector Interface
Product Type Waterproof Power Connector Socket

Salt Spray Resistance 500 hours
Vibration Resistance IEC 60512-6-4
Shell Material High-Strength Thermoplastic (PA66)
Locking System Bayonet Coupling
Flame Retardant Grade UL94-V0
Contact Material Copper Alloy with Silver Plating
Connector Gender Female
Number of Pins 3
Ingress Protection Time 30 mins @ 1m under water
RoHS Compliant Yes
Cable Diameter Range 9mm - 14mm
Insulation Resistance >2000 M at 500VDC
Dielectric Withstand Voltage 1500V AC/minute
Mounting Type Panel / Flange Mount
Connector Standard YM24 Series

YM24 45A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting mode:latching lock
Contact diameter:phi 3.0x3
Operating voltage(AC.V.rms):500V
Withstand voltage(AC.V)1min:2500V
Temperature and humidity:-4080C, 40C, 85%RH
Mating cycle:1700 times

Robust Waterproof Performance

This connector delivers IP67 waterproof protection, allowing safe operation even when submerged up to 1 meter for 30 minutes. Its high-strength thermoplastic shell further enhances moisture, dust, and corrosion resistance, making it suitable for both indoor and outdoor installations.

High Current and Voltage Handling

With a capacity to handle up to 45A of current and rated at 500V AC/DC, this connector is engineered for demanding power applications. It is RoHS compliant and flame retardant (UL94-V0), providing added safety in high-load industrial and automation setups.

Easy and Secure Panel Mounting

Featuring a flange mount and bayonet coupling locking system, installation is quick, stable, and maintenance-friendly. The solder terminal configuration ensures reliable electrical contact, while the wide cable diameter accommodation (9mm - 14mm) enables flexible wiring options.

FAQ's of YM24 45A 3Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal:

Q: How do I install the YM24 45A 3Pin Female Socket on a panel or enclosure?

A: To install the YM24 connector, position the flange mount socket on the panel cutout, secure it using the provided mounting holes, and solder your power wires (9mm-14mm cable diameter) to the terminal pins. Ensure the bayonet coupling is properly engaged for a waterproof seal.

Q: What applications are suitable for using this connector?

A: This connector is designed for use in industrial equipment, automation systems, power distribution panels, and outdoor lighting. Its IP67 rating and flame retardancy make it particularly suitable for harsh or wet environments where reliable, safe power connections are crucial.

Q: When should I choose this socket over other connector types?

A: Select this socket when you require a panel-mount, high-current (up to 45A), waterproof (IP67), and flame-retardant (UL94-V0) solution. Its durability and resistance to vibration, salt spray, and chemicals suit demanding outdoor or industrial uses.

Q: What are the benefits of the bayonet coupling locking system?

A: The bayonet coupling provides a quick and secure connection that prevents accidental disconnection and ensures the IP67 waterproofing is maintained. It also facilitates easy maintenance and reliable operation, particularly in environments subject to vibration.

Q: Can I use this connector for both AC and DC power supply?

A: Yes, the YM24 45A 3Pin Female Socket supports both AC and DC voltages up to 500V, making it versatile for various power supply arrangements in industrial and automation projects.

Q: Where is this connector commonly distributed and manufactured?

A: This connector is available through distributors, exporters, importers, manufacturers, traders, and wholesalers across India, serving industrial and commercial markets that require robust, waterproof power connections.
