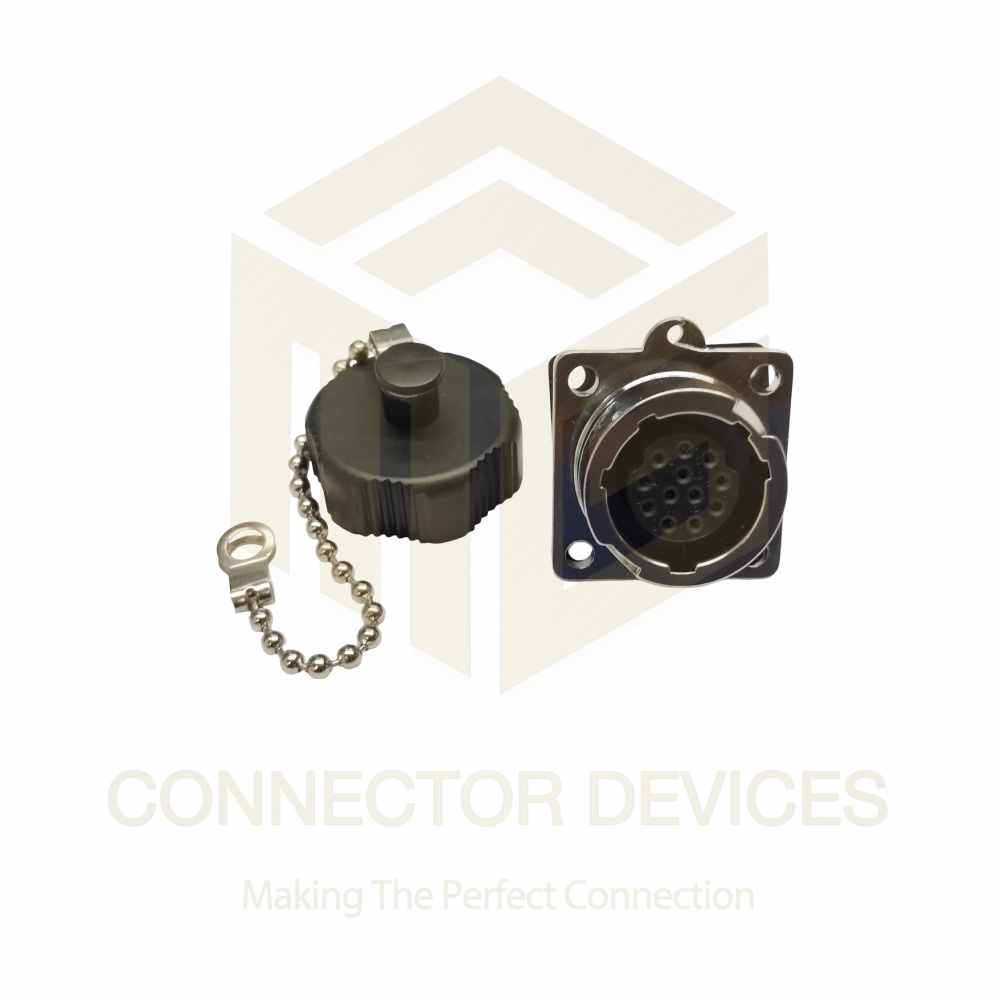

YZ20 500V 20A 12Pin Female Socket IP67 Metal Shell Waterproof Power Connector Solder Terminal

600 INR/Piece

Get a Price/Quote

Product Details:

Power Supply Electrical
Features Waterproof, Dustproof, Metal Shell, Solder Terminal, Corrosion Resistant
Operating Temperature -40C to +80C
Input Solder Terminal Input
Interface Panel Mount Solder Terminal
IP Rating IP67
Usage Industrial equipment, automation, outdoor power connection
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YZ20 500V 20A 12Pin Female Socket IP67 Metal Shell Waterproof Power Connector Solder Terminal Price And Quantity

Price 600 INR/Piece
Minimum Order Quantity 100 Piece

Pollution Degree 3
Mating Cycle Durability >500 cycles
Wire Gauge Supported AWG 14-18
Seal Type Silicone rubber O-ring
Contact Resistance 5m
Flame Retardant Level UL94 V-0
Shell Material Zinc alloy with nickel plating
Connector Style Circular
Dielectric Strength 2000VAC for 1 minute
Standards CE, RoHS compliant
Mounting Type Panel mount, circular
Insulation Resistance 2000M
Locking Mechanism Threaded coupling
Number of Pins 12 (Female)
Connector Gender Female
Contact Material Copper alloy, silver plated

YZ20 500V 20A 12Pin Female Socket IP67 Metal Shell Waterproof Power Connector Solder Terminal Product Specifications

Function Power transmission and waterproof connection
Output Solder Terminal Output
Components 12 Contacts, Metal Shell, Sealing Gasket, Lock Nut
Power Source Mains/Electrical
Frequency 50/60Hz
Weight Approx. 200g
Supply Voltage 500V AC/DC
Product Type Female Socket
Size 20 Series
Color Silver/Grey
Application Outdoor power connection, machinery, control panels
Capacity 20A per pin
Features Waterproof, Dustproof, Metal Shell, Solder Terminal, Corrosion Resistant
Rated Voltage 500V AC
Power Supply Electrical
Current Rating 20A
Dimension (L*W*H) Approx. 75mm x 38mm x 38mm
Interface Panel Mount Solder Terminal
Usage Industrial equipment, automation, outdoor power connection
IP Rating IP67
Operating Temperature -40C to +80C
Input Solder Terminal Input
Thickness Metal shell thickness approx. 1 mm

Pollution Degree 3
Mating Cycle Durability >500 cycles
Wire Gauge Supported AWG 14-18
Seal Type Silicone rubber O-ring
Contact Resistance 5m
Flame Retardant Level UL94 V-0
Shell Material Zinc alloy with nickel plating
Connector Style Circular
Dielectric Strength 2000VAC for 1 minute
Standards CE, RoHS compliant
Mounting Type Panel mount, circular
Insulation Resistance 2000M
Locking Mechanism Threaded coupling
Number of Pins 12 (Female)
Connector Gender Female
Contact Material Copper alloy, silver plated

YZ20 500V 20A 12Pin Female Socket IP67 Metal Shell Waterproof Power Connector Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Number of Pins:3
Rated Current:20A
Operating Voltage:500V
Withstanding voltage:2500V
Mating cycle:1700 Times
Contact resistance:< 1.0mOhm
Temperature and humidity:-40+80C; 40C, 85%RH
Contact dimension:Phi 2.7x3

Rugged Waterproof Design for Demanding Environments

The YZ20 connector's robust zinc alloy shell, silicone O-ring, and threaded locking mechanism ensure a watertight IP67 seal for reliable use in outdoor and industrial environments. The corrosion-resistant finish enhances durability, making it ideal for installations exposed to dust, water, or extreme weather conditions.

High Electrical Performance and Safety

Designed for up to 500V AC/DC and 20A per pin, this connector excels in high-power transmission. With silver-plated contacts, low contact resistance, and high insulation resistance, the YZ20 ensures safe, efficient operation. The connector is certified to CE and RoHS and meets UL94 V-0 flame retardancy, maintaining your safety standards.

Versatile Panel Mounting and Easy Installation

The circular panel mount design, complete with a lock nut and panel sealing gasket, allows secure and straightforward installation in control panels or outdoor junction boxes. Solder terminals support AWG 14-18 wires, offering a reliable and secure connection for a wide range of electrical and automation projects.

FAQ's of YZ20 500V 20A 12Pin Female Socket IP67 Metal Shell Waterproof Power Connector Solder Terminal:

Q: How do I install the YZ20 12Pin Female Socket connector?

A: To install, create a suitable panel cutout for the connector. Secure the socket using the included lock nut and gasket for a watertight seal. Solder AWG 14-18 wires to the terminals, ensuring correct pin alignment, then thread the mating male connector using the locking mechanism for a secure connection.

Q: What environments or applications is the YZ20 connector suited for?

A: This connector is designed for outdoor power distribution, industrial automation, machinery, and control panels where waterproofing and durability are critical. Its IP67 rating and robust construction make it ideal for use in wet, dusty, or harsh industrial conditions.

Q: What are the benefits of the zinc alloy metal shell and silver-plated contacts?

A: The zinc alloy shell provides excellent mechanical strength and corrosion resistance, while the nickel plating enhances longevity. Silver-plated copper alloy contacts offer superior electrical conductivity and lower contact resistance, ensuring stable power transmission and minimal signal loss.

Q: When should I use a 12-pin, 20A per pin connector like the YZ20?

A: Use the YZ20 when you need to transmit high current (up to 20A per pin) and require multiple circuits-perfect for complex machinery, control panels, and outdoor installations where performance and watertight connections are necessary.

Q: What safety standards does the YZ20 connector comply with?

A: The YZ20 meets CE and RoHS certifications for safety and environmental compliance. It is flame retardant to UL94 V-0 standards and features high insulation resistance (2000M) and dielectric strength (2000VAC), ensuring operational and user safety in industrial applications.

Q: How does the threaded coupling benefit the YZ20 connector's usage?

A: The threaded coupling offers a secure and vibration-resistant connection, ideal for environments subject to movement or impact. It ensures the connector stays locked in place, maintaining a waterproof and dustproof seal throughout its operational life.
