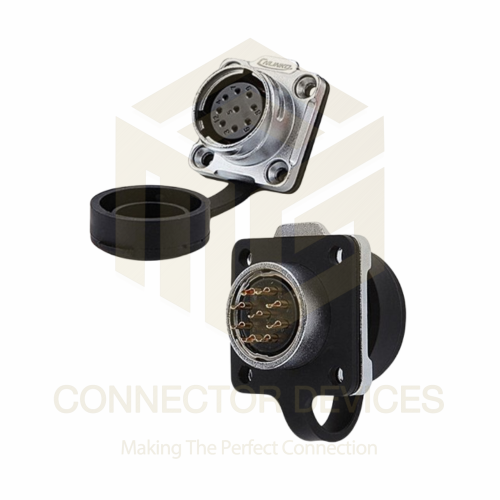

DH20 250V 5A 9Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal

Name: DH20 250V 5A 9Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 430.0 INR
Availability: InStock

430.0 INR/Piece

Get a Price/Quote

Product Details:

Usage Outdoor and industrial electrical equipment
Operating Temperature -40C to +85C
Power Source External Power
IP Rating IP67
Input Up to 9 wire connections
Interface 9 Pin Female Solder Terminal
Features Waterproof, Dustproof, Corrosion-resistant, Sturdy Metal Shell
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH20 250V 5A 9Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 430.0 INR/Piece

Mounting Type Panel mount
Locking Mechanism Threaded coupling with sealing ring
Mating Cycle Durability 500 cycles
Contact Material Copper alloy with silver-plated finish
Standards Compliance CE, RoHS
Cable Diameter Supported 6-8mm
Shell Material Zinc alloy, nickel-plated
Number of Pins 9 pins
Sealing Performance IP67 rated for liquid and dust ingress

DH20 250V 5A 9Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Capacity 5A per pin max
Supply Voltage 220-250V
Usage Outdoor and industrial electrical equipment
Product Type Waterproof Metal Power Connector Socket
Thickness Shell thickness approx. 1-2 mm (metal)
Size DH20 Series
Features Waterproof, Dustproof, Corrosion-resistant, Sturdy Metal Shell
Interface 9 Pin Female Solder Terminal
Application LED, Automation, Industrial controls, Power supply
Current Rating 5A max
Input Up to 9 wire connections
Rated Voltage 250V AC
IP Rating IP67
Power Source External Power
Operating Temperature -40C to +85C
Output Up to 9 wire connections
Weight Approx. 35g
Power Supply AC Power
Color Metallic Silver
Function Electrical power and signal connection
Components Shell, Female Solder Terminals, Sealing Pad, Lock Nut
Frequency 50/60Hz
Dimension (L*W*H) Approx. 47mm x 25mm

Mounting Type Panel mount
Locking Mechanism Threaded coupling with sealing ring
Mating Cycle Durability 500 cycles
Contact Material Copper alloy with silver-plated finish
Standards Compliance CE, RoHS
Cable Diameter Supported 6-8mm
Shell Material Zinc alloy, nickel-plated
Number of Pins 9 pins
Sealing Performance IP67 rated for liquid and dust ingress

DH20 250V 5A 9Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:250V
Temperature and humidity:-4080C; 40C, 85%RH
Wire Gauge:0.340.75mm/2220AWG
Withstand voltage(AC.V)1min:2500V
Mating Cycle:1700 Times

Exceptional Waterproof and Dustproof Performance

Engineered to IP67 standards, this power connector provides total protection against dust and powerful water jets. Its sealing ring and sturdy threaded coupling prevent ingress, making it an excellent option for harsh outdoor and industrial settings. The nickel-plated metal shell resists corrosion, ensuring longevity even in exposed locations.

Reliable, High-Quality Connectors for Industrial Applications

Featuring 9-pin copper alloy contacts with a silver-plated finish, the DH20 female socket supports both electrical power and signal transmissions. Its 5A-per-pin capacity and 250V AC rating match the needs of demanding applications such as automation, LED systems, and machinery. All components comply with CE and RoHS guidelines for safety and environmental responsibility.

FAQ's of DH20 250V 5A 9Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal:

Q: How is the DH20 9Pin Female Socket typically installed?

A: This socket is designed for panel mounting. Simply align the connector with the panel cutout, insert it, and secure it using the included lock nut. The threaded coupling and sealing ring ensure a tight, waterproof fit.

Q: What environments are suitable for using the DH20 socket?

A: The DH20 socket is ideal for outdoor and industrial settings where dust and water exposure are concerns. Its IP67 waterproof rating and corrosion-resistant shell make it perfect for LED lighting, automation systems, industrial controls, and outdoor power supplies.

Q: When should I choose this connector over other types?

A: Opt for this connector when you need a reliable, high-capacity solution for environments that require resistance to water, dust, vibration, and corrosion-especially where panel mounting and secure connections are needed.

Q: What process is involved in wiring this connector?

A: Wiring involves soldering up to nine wires onto the female solder terminals. After soldering, ensure wires are properly insulated and routed through the sealing pad for optimal protection.

Q: What advantages does the silver-plated copper alloy contact material offer?

A: Silver-plated copper alloy provides excellent electrical conductivity and reduces resistance, minimizing signal loss while ensuring stable power delivery. It also offers superior corrosion resistance for long-term reliability.

Q: How does the DH20 connector maintain its waterproof capability?

A: The connector relies on a combination of a precision-threaded coupling, a sealing ring, and robust panel-mount hardware to achieve an IP67 rating, reliably protecting against both liquid and dust ingress during operation.
