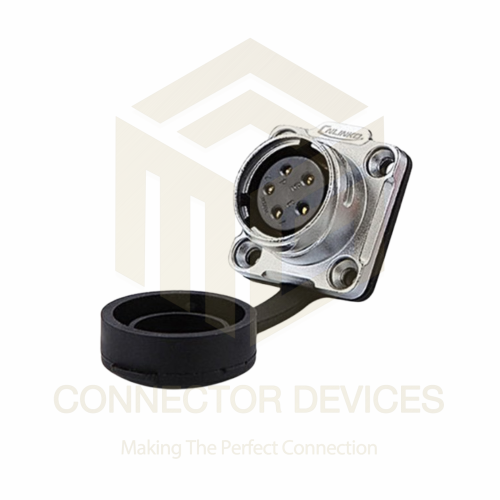

DH20 500V 10A 5Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal

Name: DH20 500V 10A 5Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 502.0 INR
Availability: InStock

502.0 INR/Piece

Get a Price/Quote

Product Details:

Interface 5 Pin Female Circular Connector
Output 5 Pin Female Socket
Usage Industrial, Outdoor, Equipment Power Supply
Power Supply AC/DC
IP Rating IP67
Operating Temperature -40C to +80C
Components Metal Shell, Solder Terminals, Silicone Seal
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH20 500V 10A 5Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 502.0 INR/Piece

Cable Diameter Range 8-12mm
Flammability Rating UL94 V-0
Contact Material Copper Alloy with Gold Plating
Contact Resistance 5m
Number of Pins 5 Pins
Mating Cycle >500 times
Shell Material Zinc Alloy with Nickel Plating
Wire Connection Type Solder Terminal
Connector Type Female Socket
Sealing Method Silicone Rubber Gasket
Insulation Resistance >1000M (500V DC)
Mounting Type Panel Mount (Flange Type)

DH20 500V 10A 5Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Thickness Shell thickness approx. 1.0 mm
Input Solder Terminal Connection
Dimension (L*W*H) Diameter 26mm x Length 58mm (approx.)
Size DH20 Series
Color Silver (Metallic)
Capacity 10A
Components Metal Shell, Solder Terminals, Silicone Seal
Operating Temperature -40C to +80C
Power Source Cable, Electrical Panel
Features Waterproof, Dustproof, Durable Metal Shell
Usage Industrial, Outdoor, Equipment Power Supply
Weight Approx. 45g
Rated Voltage 500V
Frequency 50/60Hz
Application Power Distribution, Automation Equipment, Outdoor Lighting
Current Rating 10A max
Power Supply AC/DC
Function Electrical power and signal connection
IP Rating IP67
Product Type Waterproof Power Connector
Supply Voltage 500V
Interface 5 Pin Female Circular Connector
Output 5 Pin Female Socket

Cable Diameter Range 8-12mm
Flammability Rating UL94 V-0
Contact Material Copper Alloy with Gold Plating
Contact Resistance 5m
Number of Pins 5 Pins
Mating Cycle >500 times
Shell Material Zinc Alloy with Nickel Plating
Wire Connection Type Solder Terminal
Connector Type Female Socket
Sealing Method Silicone Rubber Gasket
Insulation Resistance >1000M (500V DC)
Mounting Type Panel Mount (Flange Type)

DH20 500V 10A 5Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Reserve the extraordinary DH20 500V 10A 5Pin Female Socket now for reliable and versatile power connections. Marvelous in design, this IP67 waterproof metal connector features a virtuoso zinc alloy shell with nickel plating, a robust copper alloy contact with gold coating, and a silicone rubber gasket ensuring maximum sealing. Engineered for panel mount applications, it supports up to 10A at 500V, standing strong under harsh industrial environments. Affordable, durable, and easy to install, get it now and power up your automation, lighting, and distribution with confidence.

Applications & Features of DH20 5Pin Female Socket

The DH20 500V 10A 5Pin Female Socket is ideal for industrial power distribution, automation equipment, and outdoor lighting systems. Its IP67-rated waterproof, dustproof, and flame-retardant (UL94 V-0) metal shell ensures safety and longevity. Effortlessly mount it on panels or flanges to support reliable power and signal connections in demanding settings. It is suitable for diverse surfaces, making it perfect for electrical panels, industrial equipment, and external installations where robust performance is non-negotiable.

Sample Dispatch, Transport & Indian Market Reach

Sample dispatching of the DH20 500V 10A 5Pin Female Socket is available for customers seeking to verify quality before large purchases. Our goods transport system guarantees secure and swift delivery to your location, using FOB ports across India. Prompt arrival of your order is ensured, backed by a vast domestic distribution network catering to manufacturers, traders, and wholesalers nationwide. Experience seamless shipment and reliable supply, with India as our primary market focus.

FAQ's of DH20 500V 10A 5Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal:

Q: How is the DH20 5Pin Female Socket installed?

A: The DH20 5Pin Female Socket is designed for easy panel mount (flange type) installation. Simply solder your wires to the terminal, secure the connector onto the panel, and enjoy a reliable connection.

Q: What areas can the DH20 5Pin Connector be used in?

A: It is ideally suited for industrial power distribution, automation systems, outdoor lighting, and equipment installations where waterproofing and durability are required.

Q: When can I expect the sample or order to arrive?

A: Once dispatched, goods are shipped promptly via reliable transport channels, typically through FOB ports in India. Delivery times depend on your location, ensuring timely arrival.

Q: Where does DH20 5Pin Connector excel in performance?

A: Its robust IP67 metal shell and silicone gasketing make it excel in harsh outdoor or industrial settings, providing a secure, waterproof electrical connection on various metallic and panel surfaces.

Q: What are the benefits of the metal shell and gold-plated contacts?

A: The zinc alloy shell with nickel plating offers exceptional durability and rust resistance, while the gold-plated copper alloy contacts provide superior conductivity and corrosion protection, resulting in long-term reliable operation.

Q: How does the waterproof feature enhance reliability?

A: IP67 sealing with a silicone rubber gasket protects the electrical contacts from water, dust, and harsh weather, guaranteeing stable operation even in challenging environments.
