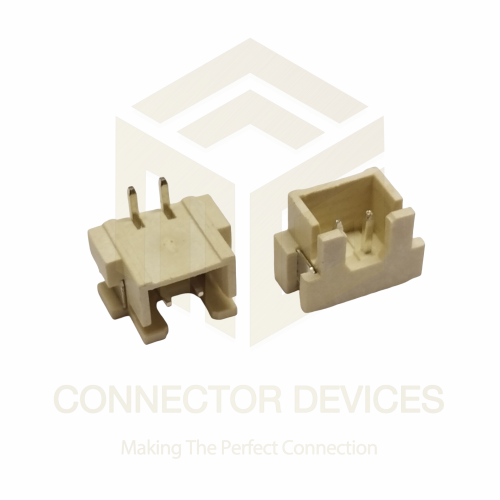

2515 Male SMT Top Entry

12 INR/Piece

Get a Price/Quote

Product Details:

Output Signal transfer to PCB circuit
Input Male pin header connection
Usage PCB mounting for electronic devices
Components Plastic housing, metal contacts
Features Top entry, compact size, SMT mount, high reliability
Operating Temperature -40C to +105C
Interface SMT (Surface Mount Technology)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

2515 Male SMT Top Entry Price And Quantity

Price 12 INR/Piece
Minimum Order Quantity 100 Piece

2515 Male SMT Top Entry Product Specifications

Interface SMT (Surface Mount Technology)
IP Rating Not rated
Features Top entry, compact size, SMT mount, high reliability
Function Wire-to-board connection
Size 2mm pitch
Supply Voltage 250V AC/DC (max)
Operating Temperature -40C to +105C
Weight Approx. 0.25g (per piece)
Application Consumer electronics, PCBs, Industrial control
Dimension (L*W*H) As per manufacturer datasheet
Usage PCB mounting for electronic devices
Input Male pin header connection
Capacity Single to multiple pin options
Current Rating 2A AC/DC
Components Plastic housing, metal contacts
Color Black
Product Type Male SMT Top Entry Connector
Rated Voltage 250V AC/DC
Output Signal transfer to PCB circuit

Number of Positions 2-12 pins (as per variant)
Contact Plating Tin-plated over nickel
Flammability Rating UL94V-0
Material High-temperature thermoplastic, Phosphor bronze contacts
Profile Low profile (ideal for compact designs)
Mounting Type Surface Mount (SMT)
Durability 30 cycles min.
Insulation Resistance >= 1000M at 500V DC
Withstanding Voltage 800V AC/minute
Packaging Type Tape and reel for automated assembly
Contact Resistance 20m

2515 Male SMT Top Entry Trade Information

Delivery Time 7 Days

Product Description

Explore the remarkable 2515 Male SMT Top Entry connectors, now available at a special clearance offer! Designed with inestimable quality, this world-class wire-to-board solution features high-temperature thermoplastic housing and robust phosphor bronze contacts, ensuring excellent reliability under demanding conditions. With a low-profile design and 2mm pitch, it's ideal for compact PCB assemblies in consumer electronics, industrial control, and more. Enjoy superior electrical properties, tin-plated contacts, and an impressive 250V AC/DC capacity. Take advantage of tape-and-reel packaging for efficient automated assembly. Available in multiple positions for versatile applications.

Standout Features & Specialized Uses of the 2515 Male SMT Top Entry

The 2515 Male SMT Top Entry connector boasts a compact form, UL94V-0 flammability rating, and exceptional durability of 30 cycles minimum. Its high insulation and contact resistance offer reliable performance in PCBs for consumer electronics and industrial control. Engineered for SMT mounting, its top entry and low-profile design maximize space efficiency. The connector is suitable for signal transfer to PCB circuits, providing inestimable advantages in applications with limited space and high reliability requirements.

Supply Advantage, Shipping, and Certification of 2515 Male SMT Top Entry

Our 2515 Male SMT Top Entry connectors demonstrate consistent supply capability for bulk and customized requirements. Swift goods transport is achieved through reliable freight partners, ensuring timely exchange and delivery nationwide. Each item is cataloged and handled with precision for seamless logistics. The product carries a UL94V-0 flammability rating, assuring compliance and safe usage. Depend on us for on-time dispatch and carefully managed shipping processes, backed by well-established distribution and export systems.

FAQ's of 2515 Male SMT Top Entry:

Q: How does the 2515 Male SMT Top Entry connector differ from other SMT connectors?

A: The 2515 Male SMT Top Entry distinguishes itself with its low-profile design, high-temperature thermoplastic, tin-plated contacts, and wide pin count options, making it ideal for compact and demanding electronic applications.

Q: What are the specific usage benefits of a top-entry, surface mount connector?

A: A top-entry SMT connector allows for easier automated assembly on PCBs, saves board space, supports high-density layouts, and improves reliability by minimizing mechanical stress during the soldering process.

Q: Where can the 2515 Male SMT Top Entry connectors be applied?

A: These connectors are well-suited for consumer electronics, industrial control panels, and various PCB applications where reliable signal transfer and compact design are required.

Q: What is the process for exchanging goods or returning defective items?

A: We follow a straightforward exchange and return policy. Please notify us with product and batch details, and our support team will coordinate goods transport and freight arrangements for swift resolution.

Q: How does the tape-and-reel packaging benefit automated assembly?

A: Tape-and-reel packaging streamlines the pick-and-place process in automated SMT assembly lines, ensuring efficient handling, consistent placement, and reduced downtime.

Q: When can customers expect delivery after placing an order for the 2515 Male SMT Top Entry connector?

A: Delivery times typically depend on order quantity and shipping location, but we prioritize prompt dispatch through established freight and logistics channels, striving for timely fulfillment throughout India.
