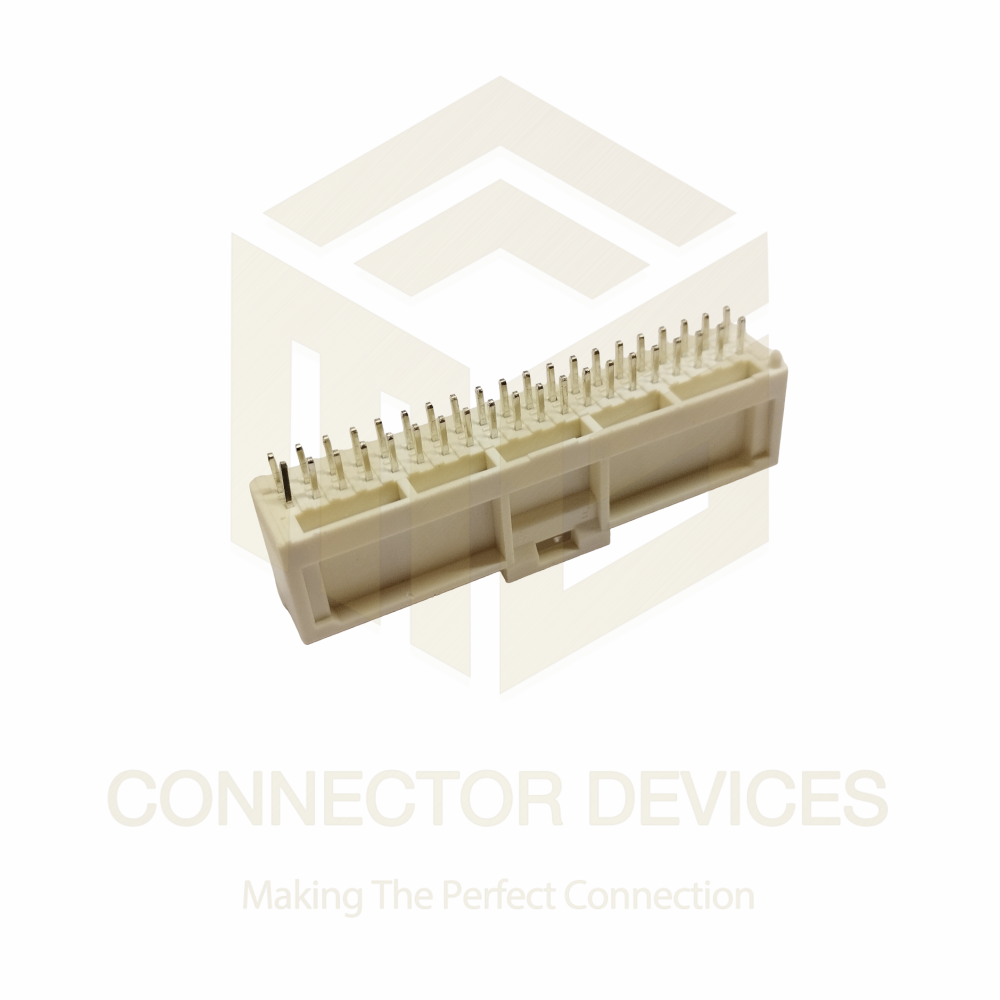

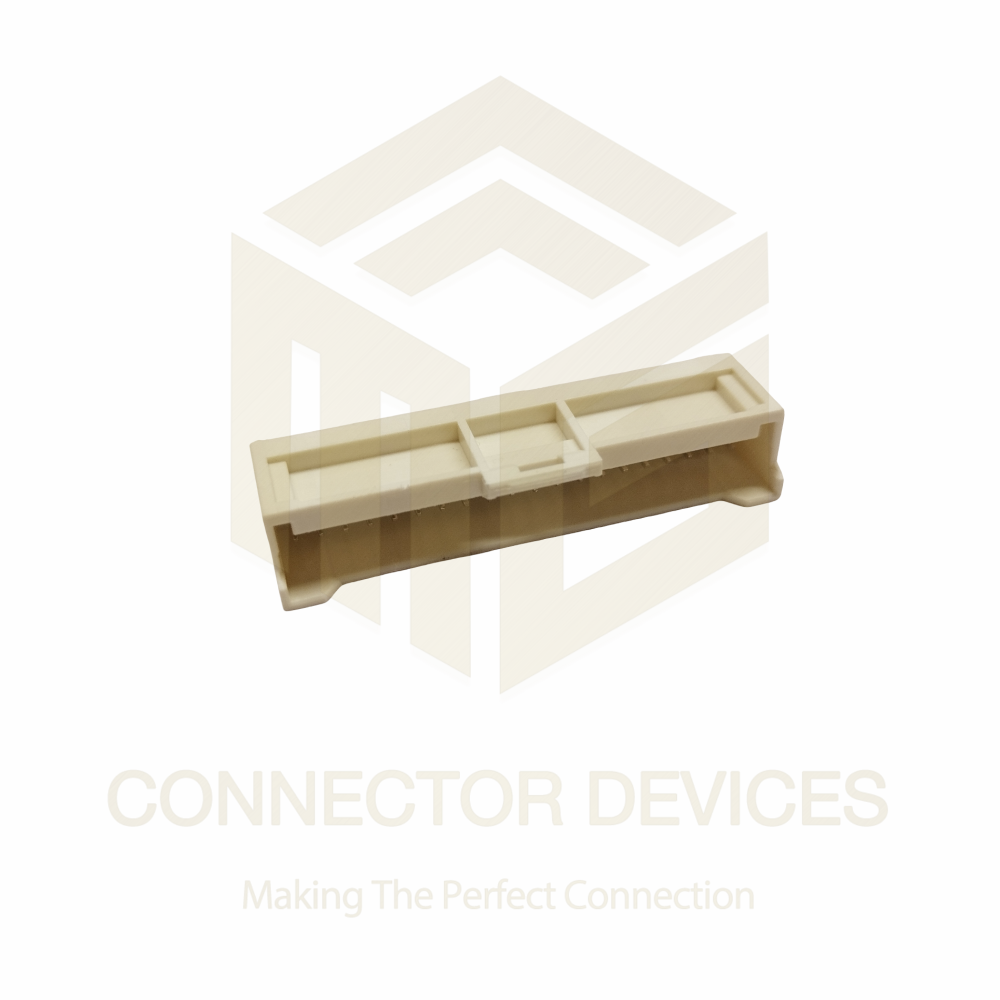

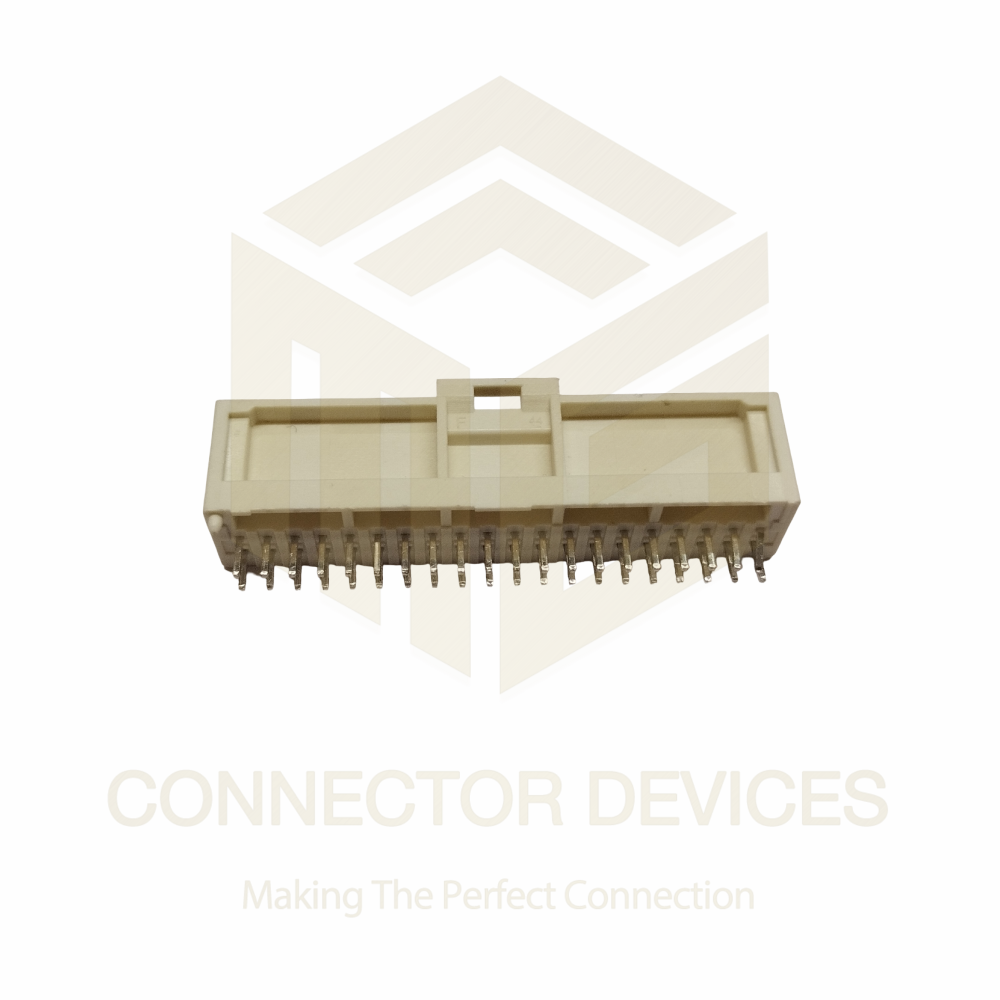

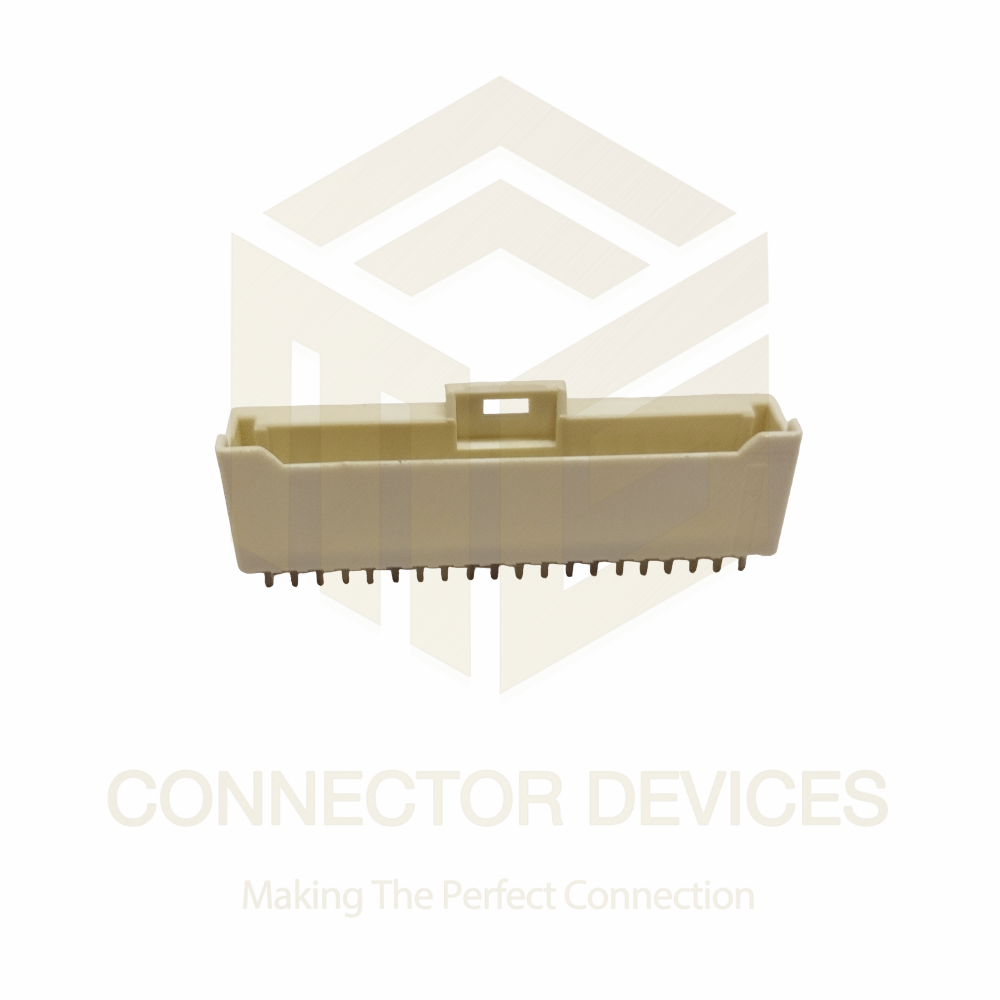

40 Pin PHD Male Lock type ST 2x20 (2mm)

Name: 40 Pin PHD Male Lock type ST 2x20 (2mm)
Brand: CONNECTOR DEVICES
Price: 00240027 INR
Availability: InStock

00240027 INR/Piece

Get a Price/Quote

Product Details:

Sealed Unsealed
Cable Diameter N/A (Panel/PCB Mount)
Surface Treatment Tin/Gold Plated Contacts
Thickness Standard 2mm Pitch
Product Type Rectangular Connector, 40 Pin PHD Male
Material Insulator: High Temperature Plastic (UL 94V-0), Pin: Phosphor Bronze, Tin/Gold Plated
Application Data/Power Transmission in Electronic Devices
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

40 Pin PHD Male Lock type ST 2x20 (2mm) Price And Quantity

Minimum Order Quantity 100 Piece
Price 00240027 INR/Piece

40 Pin PHD Male Lock type ST 2x20 (2mm) Product Specifications

Sealed Unsealed
Weight Approx. 6-10 grams
Style Straight (ST)
Material Insulator: High Temperature Plastic (UL 94V-0), Pin: Phosphor Bronze, Tin/Gold Plated
Rated Voltage 250V AC/DC
Diameter Pin Diameter - 0.4mm
Terminal Socket Male
Thickness Standard 2mm Pitch
Product Type Rectangular Connector, 40 Pin PHD Male
Insulation Resistance 1000 M at 500V DC
Cable Diameter N/A (Panel/PCB Mount)
Surface Treatment Tin/Gold Plated Contacts
Application Data/Power Transmission in Electronic Devices
Contact Resistance 20 m
Color Beige
Fittings Lock Type

Current Rating 1A per contact
Flammability Rating UL 94V-0
Number of Rows 2 (2x20)
Pitch 2.0mm
Mating Cycles 500 minimum
Operating Temperature -40C to +105C
Mounting Type Through Hole
Insertion Force 30N max
Number of Pins 40
Withstanding Voltage 500V AC for 1 minute
PCB Mount Height Approx. 8.5mm
RoHS Compliance Yes

Product Description

Discover the scarce and heroic 40 Pin PHD Male Lock Type ST 2x20 (2mm), engineered with renowned precision for your electronic needs. With its soaring demand in industrial and commercial domains, this connector features instant checkout and seamless purchase options. Boasting 2 rows (2x20 pins), 2.0mm pitch, and through-hole mounting, it excels in data and power transmission. Its robust lock type fitting and high current rating of 1A per contact make it ideal for secure and enduring connections. RoHS-compliant and UL 94V-0 rated, it withstands -40C to +105C, ensuring reliability even in harsh environments. Suitable for distributors, exporters, importers, manufacturers, traders, and wholesalers across India.

Versatile Solution for General and Specific Electronic Applications

The 40 Pin PHD Male Lock Type ST 2x20 (2mm) is tailored for seamless data and power transmission in a variety of electronics. Its design accommodates general use in industrial automation, computer motherboards, and consumer electronics, as well as specific applications like instrumentation and communication devices. With robust construction and reliable performance, it is a trusted connector for OEMs, R&D labs, PCB assemblies, and manufacturers seeking dependable connectivity in their innovations.

Certifications, Sampling, and Packaging Details for Trusted Delivery

Our sample policy ensures clients can assess the 40 Pin PHD Male Lock Type ST 2x20 (2mm) before bulk purchase at a competitive rate. Certified RoHS-compliant and meeting UL 94V-0 standards, it guarantees safety and environmental care. Products are meticulously packaged to prevent transit damage, with transport services available for both domestic and international logistics. Request a list price or quote for your desired quantity and benefit from our reliable export packaging and swift dispatch services.

FAQ's of 40 Pin PHD Male Lock type ST 2x20 (2mm):

Q: How does the 40 Pin PHD Male Lock Type ST 2x20 (2mm) enhance electronic device connectivity?

A: Its dual-row, through-hole design provides stable and reliable connections for data and power transmission, making it suitable for a wide array of devices ranging from consumer electronics to industrial control units.

Q: What applications are most suitable for the 40 Pin PHD Male Lock Type connector?

A: This connector is ideal for use in PCB assemblies, automation systems, computer motherboards, instrumentation, R&D labs, and any electronic device requiring efficient data or power transfer.

Q: When can I request a sample, and how is it shipped?

A: Samples can be requested prior to bulk ordering. Each sample is securely packed according to our standard policy and dispatched through reputed transport services, ensuring safe and timely delivery.

Q: Where is this connector manufactured and distributed from?

A: We manufacture, distribute, and supply this connector in India, efficiently serving other countries through our robust export network to meet global requirements.

Q: What certifications and quality standards does the product meet?

A: The 40 Pin PHD Male Lock Type ST 2x20 (2mm) is RoHS compliant and carries a UL 94V-0 flammability rating, assuring customers of its safety, non-toxicity, and reliable performance in various environments.
