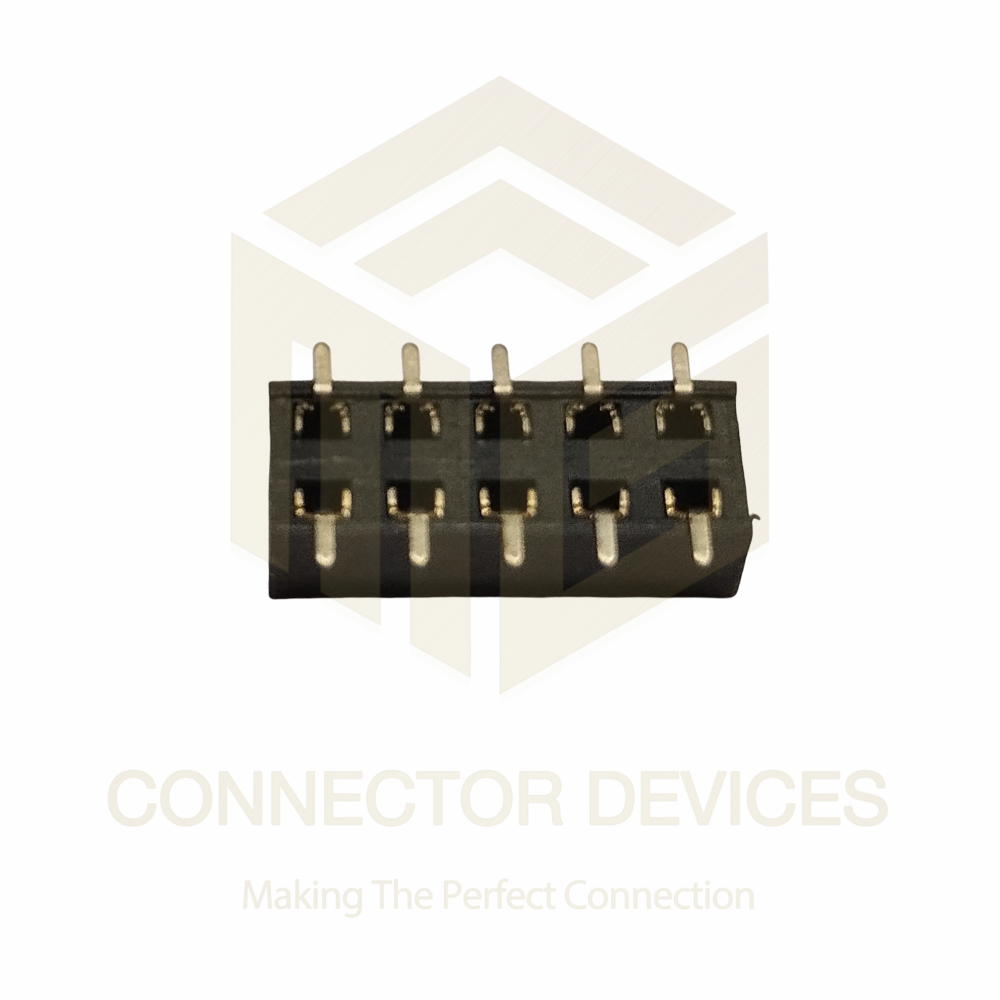

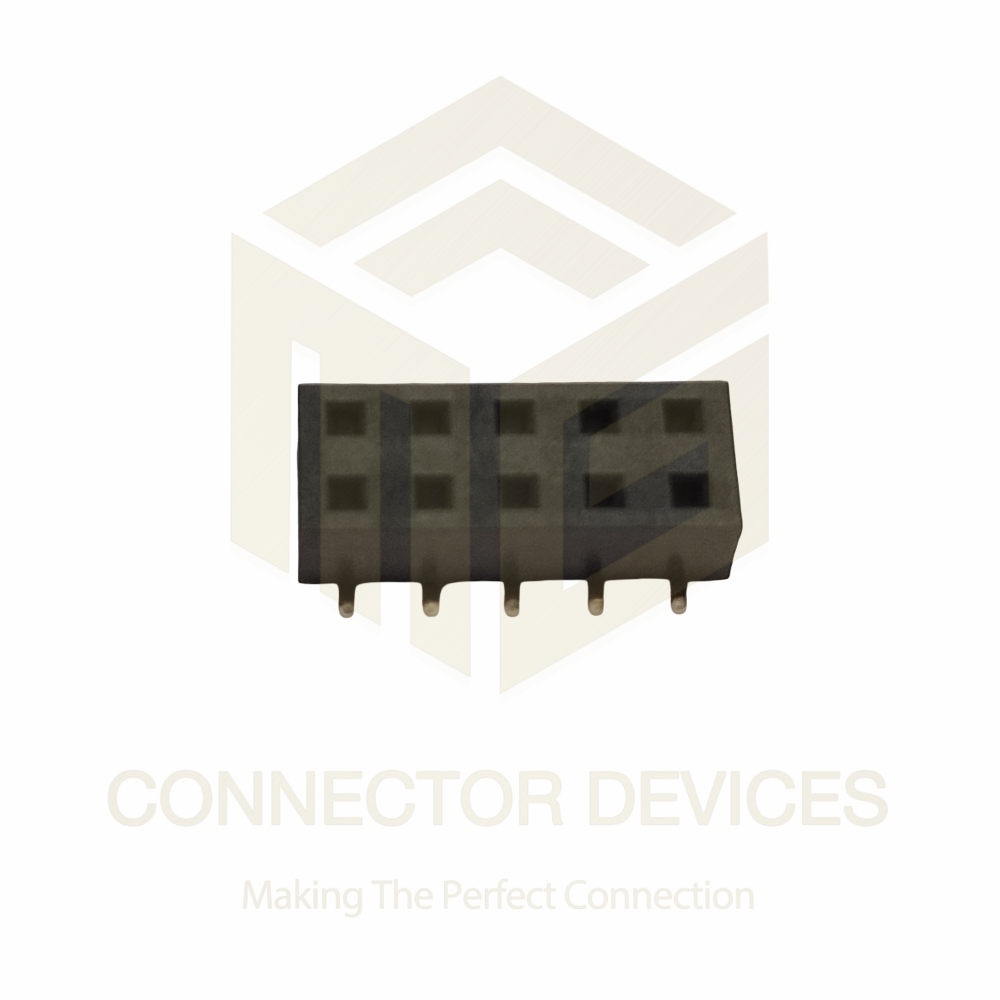

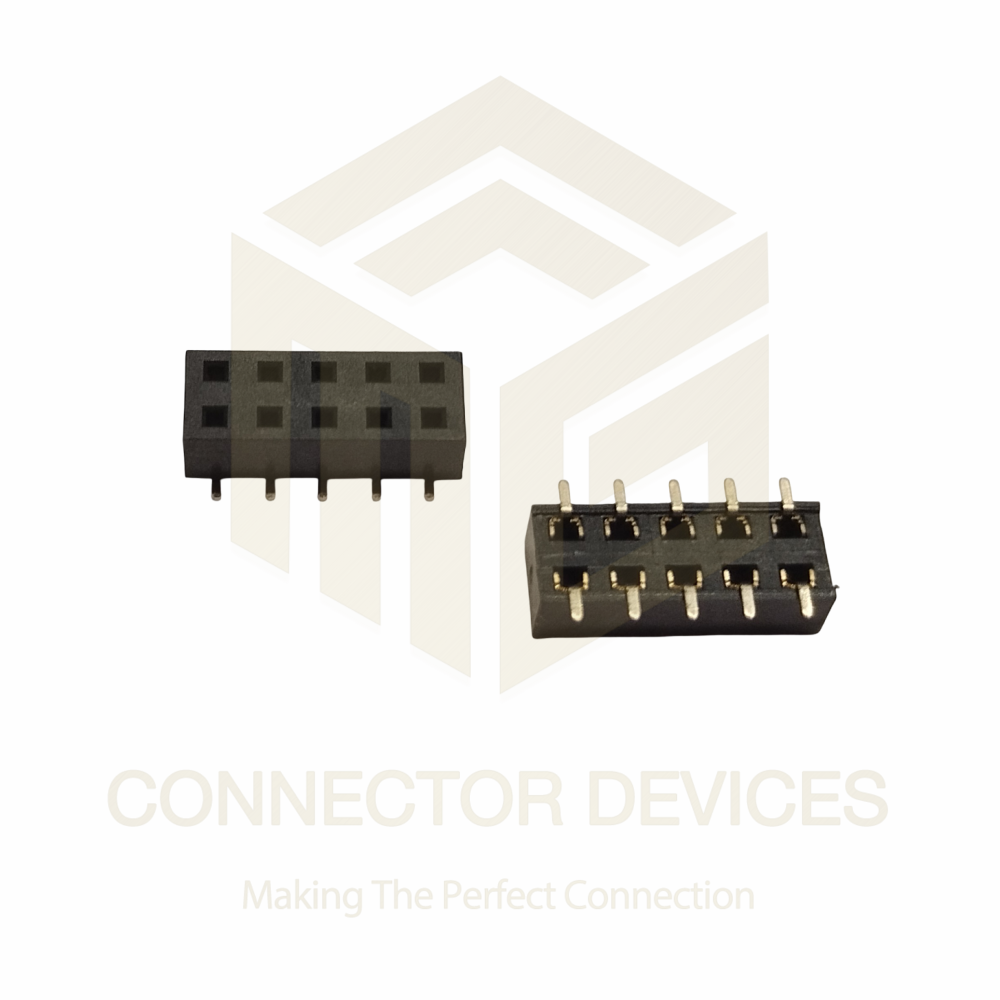

5x2 Flow solder SMD 3.5mm Height
Product Details:
- Output Electrical signal
- IP Rating Not rated
- Input Electrical signal
- Components High reliability plastic, metal contacts
- Power Supply Not applicable (passive component)
- Usage PCB mount for SMD applications
- Power Source Not applicable (passive device)
- Click to View more
X
5x2 Flow solder SMD 3.5mm Height Price And Quantity
- 100 Piece
5x2 Flow solder SMD 3.5mm Height Product Specifications
- 5A
- PCB mount for SMD applications
- Electrical connectivity for SMD circuits
- Approx. 0.5g
- Not applicable (passive component)
- 5x2
- 3.5mm (Height)
- High reliability plastic, metal contacts
- Electrical signal
- DC to 1GHz
- Not rated
- SMD Flow Solder Connector
- Electrical signal
- 50V AC/DC
- 50V Max
- -40C to +85C
- Black
- 5A
- 6.5mm x 5.7mm x 3.5mm
- Consumer electronics, telecom, industrial PCB
- Not applicable (passive device)
- High solderability, compact size, RoHS compliant
- SMD (Surface Mount Device)
- Phosphor bronze with gold or tin plating
- SMT/Flow solderable
- 2.54mm
- -40C to +85C
- Tape and reel suitable for automatic placement
- Complies with J-STD-002
- 10 (5x2 configuration)
- <20 m
- UL94V-0 standard
- >100 cycles
- >1000 M @ 500V DC
- 500V AC/minute
Product Description
Introducing the new release 5x2 Flow Solder SMD connector-an uncommon, meritorious solution designed for towering performance in modern PCB mounting. Featuring phosphor bronze contacts with gold or tin plating and a compact 3.5mm height, these connectors provide superior reliability. Complying with UL94V-0 flammability standards, its scarcity in the market makes it a must-add to cart. With a robust 5A current rating and exceptional insulation, this connector offers high solderability and unmatched durability for consumer electronics, telecom, and industrial applications.
Advantages & Applications of 5x2 Flow Solder SMD 3.5mm Height
The 5x2 Flow Solder SMD, with its innovative application method of surface mounting via flow soldering, ensures swift and secure PCB integration. Its towering insulation resistance and superior contact reliability make it ideal for demanding environments. Frequently used in consumer electronics, telecom, and industrial PCBs, this component excels in space-constrained designs. The compact size and tape-and-reel packing enable seamless automatic placement, providing an uncommon blend of functionality and dependability across a variety of SMD circuit applications.
FOB Port, Delivery, and Payment Rates for 5x2 Flow Solder SMD 3.5mm
Our 5x2 Flow Solder SMD connectors are available for dispatch from major Indian FOB ports. Expect delivery times from 7 to 15 days, depending on order rate and geographic exchange requirements. Each component is carefully packed in tape and reel, ensuring secure transit and minimal handling. Flexible payment terms cater to both exporters and domestic traders, streamlining transaction processes and supporting efficient procurement. Inquire today for customized packing and swift dispatch to suit your operational timelines.
Advantages & Applications of 5x2 Flow Solder SMD 3.5mm Height
The 5x2 Flow Solder SMD, with its innovative application method of surface mounting via flow soldering, ensures swift and secure PCB integration. Its towering insulation resistance and superior contact reliability make it ideal for demanding environments. Frequently used in consumer electronics, telecom, and industrial PCBs, this component excels in space-constrained designs. The compact size and tape-and-reel packing enable seamless automatic placement, providing an uncommon blend of functionality and dependability across a variety of SMD circuit applications.
FOB Port, Delivery, and Payment Rates for 5x2 Flow Solder SMD 3.5mm
Our 5x2 Flow Solder SMD connectors are available for dispatch from major Indian FOB ports. Expect delivery times from 7 to 15 days, depending on order rate and geographic exchange requirements. Each component is carefully packed in tape and reel, ensuring secure transit and minimal handling. Flexible payment terms cater to both exporters and domestic traders, streamlining transaction processes and supporting efficient procurement. Inquire today for customized packing and swift dispatch to suit your operational timelines.
FAQ's of 5x2 Flow solder SMD 3.5mm Height:
Q: How can the 5x2 Flow Solder SMD connector be mounted onto a PCB?
A: The 5x2 Flow Solder SMD connector is designed for Surface Mount Technology (SMT) and is compatible with flow soldering, allowing for easy integration onto PCBs through automatic placement using tape and reel packaging.Q: What are the main advantages of using phosphor bronze contacts in this component?
A: Phosphor bronze contacts, available with gold or tin plating, ensure enhanced conductivity, corrosion resistance, and prolonged durability, which are essential for meritorious electrical performance and reliability in diverse applications.Q: Where is this SMD connector commonly used?
A: This connector is widely implemented in consumer electronics, telecommunications equipment, and industrial PCB assemblies, where reliable electrical connectivity and compact design are necessary.Q: What makes the 5x2 Flow Solder SMD an uncommon choice for electronic assemblies?
A: Its scarcity is due to its unique blend of compact size, high current capacity (5A), soaring insulation resistance, and compliance with rigorous reliability and safety standards such as UL94V-0 and RoHS.Q: How does the product packaging facilitate the assembly process?
A: The connectors are supplied in tape-and-reel packaging, suitable for automatic pick-and-place machines, making the assembly process efficient and reducing the chances of manual handling errors.Q: What is the rated voltage and current for safe operation?
A: The connector is rated for up to 50V AC/DC and supports a maximum current of 5A, making it safe for a wide range of signal and power PCB applications.Tell us about your requirement
