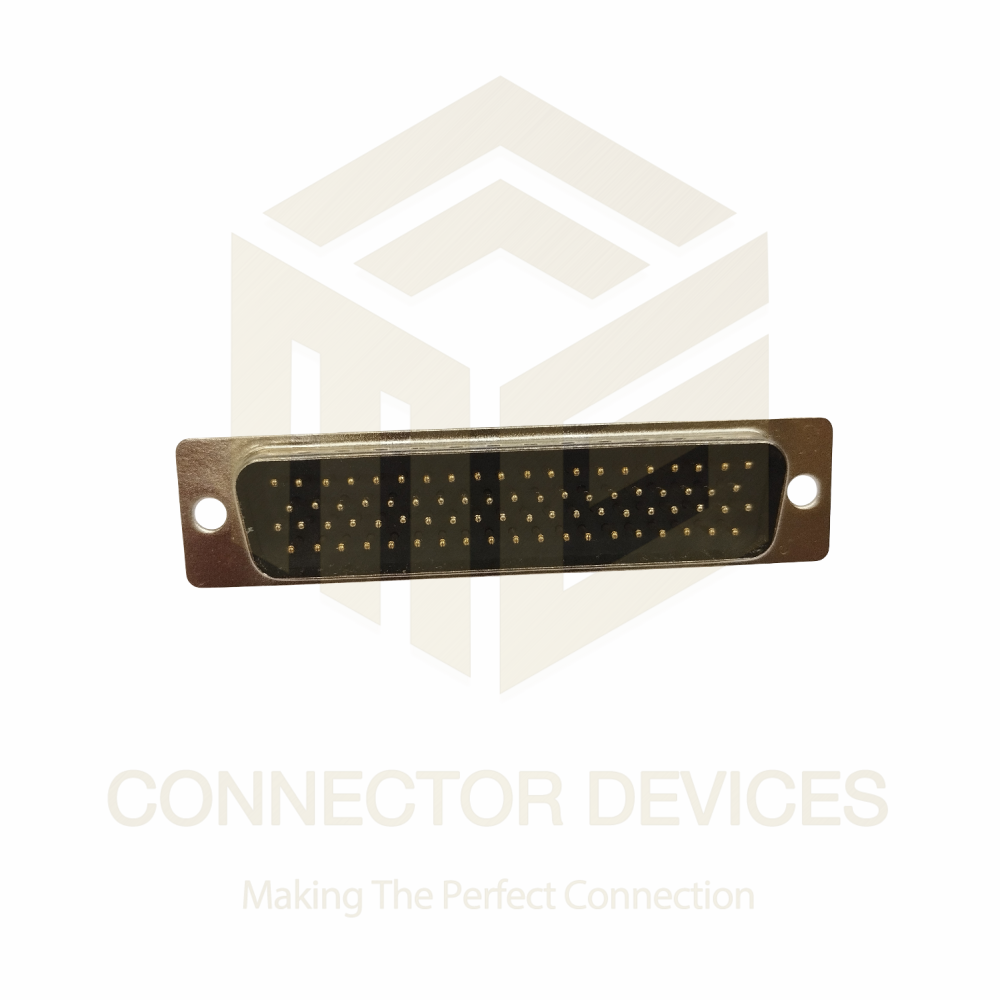

78 Pin VGA Male and Female Solder type

78 Pin VGA Male and Female Solder type Price And Quantity

• Minimum Order Quantity 100 Piece

78 Pin VGA Male and Female Solder type Product Specifications

• Display Type Analog RGB signal
• Power Supply Not applicable (passive connector)
• Resolution Supports up to UXGA (1600 x 1200) or higher depending on cable and system
• Size Standard 78 pin D-sub size
• Input VGA analog signal
• Weight Approx. 55g (per connector)
• Current Rating 5A max. per pin
• Capacity 78 signal lines
• Rated Voltage 300V AC max.
• Product Type VGA Connector, 78 Pin, Solder Type
• IP Rating IP20 (non-waterproof)
• Function Connect analog video signals between device and display.
• Frequency Up to 300 MHz (bandwidth dependent on cable)
• Color Blue (Shell), Silver (Contacts)
• Components Metal shell, 78 pin contacts, plastic insulator, solder cups
• Thickness Standard VGA casing thickness, ~8mm
• Output VGA analog signal
• Features High pin count for custom video interfaces, robust metal shell, solder type for secure connections
• Operating Temperature -25C to +85C
• Application Computers, Monitors, Projectors, Video Cards, Industrial control
• Interface 78 Pin VGA Male and Female, Solder type
• Usage VGA video signal transmission
• Response Time Not applicable (depends on device)
• Dimension (L*W*H) Approx. 90mm x 22mm x 35mm

• RoHS Compliance Yes
• Termination Style Solder cup
• Connector Type D-Sub, High Density
• Contact Resistance 20m
• Gender Male and Female available
• Material Nickel-plated steel shell, gold-plated copper contacts
• Mounting Type Panel mount (screw holes)
• Insulation Resistance 1000M at 500V DC
• Shielding 360 EMI/RFI shielding
• Storage Temperature -40C to +105C
• Dielectric Withstand Voltage 1000V RMS for 1 minute
