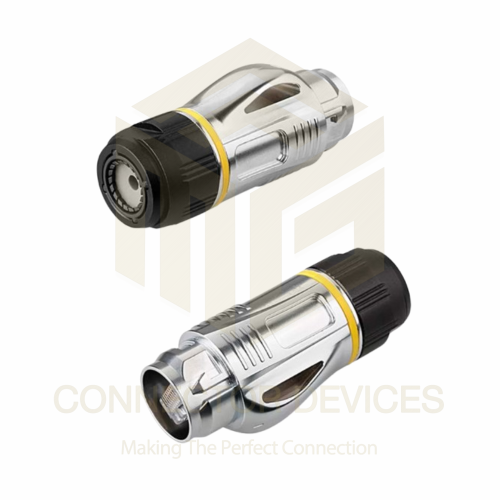

BD24-RJ45 Series RJ45 Male Plug IP67 Metal Shell Waterproof Ethernet Connector

Name: BD24-RJ45 Series RJ45 Male Plug IP67 Metal Shell Waterproof Ethernet Connector
Brand: CONNECTOR DEVICES
Price: 723.0 INR
Availability: InStock

723.0 INR/Piece

Get a Price/Quote

Product Details:

Interface RJ45 (8P8C)
Usage Industrial, Outdoor, and Harsh Environment Ethernet Connections
Features Waterproof, Dustproof, EMI shielding, Vibration resistant, Corrosion resistant, Robust metal housing
Operating Temperature -40C to +85C
Power Source N/A (passive device)
Output RJ45 Interface (Ethernet Signals)
Components Metal shell, sealing ring, RJ45 core, strain relief clamp
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

BD24-RJ45 Series RJ45 Male Plug IP67 Metal Shell Waterproof Ethernet Connector Price And Quantity

Minimum Order Quantity 100 Piece
Price 723.0 INR/Piece

BD24-RJ45 Series RJ45 Male Plug IP67 Metal Shell Waterproof Ethernet Connector Product Specifications

Features Waterproof, Dustproof, EMI shielding, Vibration resistant, Corrosion resistant, Robust metal housing
Components Metal shell, sealing ring, RJ45 core, strain relief clamp
IP Rating IP67
Supply Voltage N/A (signals only)
Input RJ45 Male Plug
Application IP67 Outdoor Network Installations, Automation, Surveillance, Marine Communication, IoT
Weight Approx. 45g
Product Type RJ45 Waterproof Ethernet Connector
Dimension (L*W*H) 67mm x 23mm x 23mm (approximate)
Frequency Ethernet: Up to 500 MHz (Cat6)
Operating Temperature -40C to +85C
Power Source N/A (passive device)
Power Supply N/A (passive network component)
Output RJ45 Interface (Ethernet Signals)
Rated Voltage AC 125V/DC 50V
Function Network connection (Ethernet data transfer)
Color Silver/Metallic
Capacity 8 contacts, Cat5e/Cat6 compatible
Interface RJ45 (8P8C)
Current Rating 2A Max
Size Standard RJ45 module with metal shell
Thickness Shell thickness 2mm (typical)
Usage Industrial, Outdoor, and Harsh Environment Ethernet Connections

Storage Temperature -40C to +85C
Number of Ports 1
Cable Diameter Supported 6mm to 8mm
Mounting Type Cable mount
Shielding 360 full metal shielding
Compatible Standards IEEE 802.3, Cat5, Cat5e, Cat6
Material Zinc alloy metal shell with nickel plating
Insertion Force 50N
Contact Resistance 30 m max
Flame Retardant UL94V-0 rated insulator
Withdrawal Force 20N
Compliance RoHS, CE, and Reach compliant
Sealing Method O-ring with threaded locking mechanism
Insulation Resistance >500 M at 500V DC
Mating Cycles 750 cycles
Contact Material Gold-plated copper contacts

BD24-RJ45 Series RJ45 Male Plug IP67 Metal Shell Waterproof Ethernet Connector Trade Information

Delivery Time 7 Days

Product Description

Get the BD24-RJ45 Series RJ45 Male Plug IP67 Metal Shell Waterproof Ethernet Connector and elevate your network installations to a first-class industrial standard. Crafted with a rare blend of rugged zinc alloy-finished in lustrous nickel plating-this connector features monumental 360 full metal shielding and gold-plated copper contacts for optimal signal quality. Its robust O-ring and threaded locking system ensure waterproof, dustproof performance, making it perfect for outdoor, marine, or industrial settings. Add to Cart now to access premium connectivity trusted by professionals, compliant with stringent RoHS, CE, and Reach standards.

Ultimate Protection and Application Excellence

The BD24-RJ45 Series RJ45 Male Plug is engineered for effortless field assembly with its cable mount design and threaded locking mechanism. This makes installation straightforward in outdoor and industrial environments. Enjoy competitive advantages such as flame retardant UL94V-0 insulator, corrosion resistance, and vibration-proof capacity. Special features include IP67 waterproof rating, EMI shielding, and compatibility with Cat5e/Cat6 standards, making this a reliable choice for automation, marine, IoT, and surveillance networks.

Seamless Delivery and Market Coverage

Handed over at prominent Indian FOB ports, the BD24-RJ45 Series ensures swift delivery for your business needs. With an extensive export footprint to Asia, Africa, the Middle East, and Europe, this product is also estimated for rapid domestic delivery across all major Indian markets. Its trusted performance and wide distribution channels make it an ideal solution for importers, wholesalers, and manufacturers seeking reliability and speed.

FAQ's of BD24-RJ45 Series RJ45 Male Plug IP67 Metal Shell Waterproof Ethernet Connector:

Q: How do I install the BD24-RJ45 Series RJ45 Male Plug in outdoor applications?

A: The connector is designed for easy installation using its cable mount style and threaded locking mechanism. Simply insert your cable (6mm-8mm), secure the strain relief clamp, then tighten the shell to engage the O-ring seal for robust, waterproof performance.

Q: What are the benefits of the IP67 rating on this RJ45 Ethernet Connector?

A: The IP67 rating ensures the connector is both waterproof and dustproof, providing reliable operation in harsh environments such as industrial automation, marine communications, and outdoor surveillance systems.

Q: Where can I use the BD24-RJ45 Series Ethernet Connector?

A: It is ideal for applications in industrial, outdoor, marine, and IoT environments that require secure, high-performance Ethernet connections, including automation, surveillance, and other mission-critical installations.

Q: What makes this connector stand out from conventional RJ45 plugs?

A: The BD24-RJ45 combines 360 full metal shielding, gold-plated contacts, and a flame retardant insulator for superior durability, EMI protection, and data integrity, setting it apart from standard connectors.

Q: How does the competitive advantage of corrosion and vibration resistance benefit users?

A: Corrosion and vibration resistance ensure long-term reliability and safe data transfer, even in challenging settings, reducing maintenance needs and extending equipment lifespan.

Q: What export markets is this connector available in?

A: The BD24-RJ45 Series is widely exported across Asia, Africa, the Middle East, and Europe, making it accessible for international distributors and integrators.
