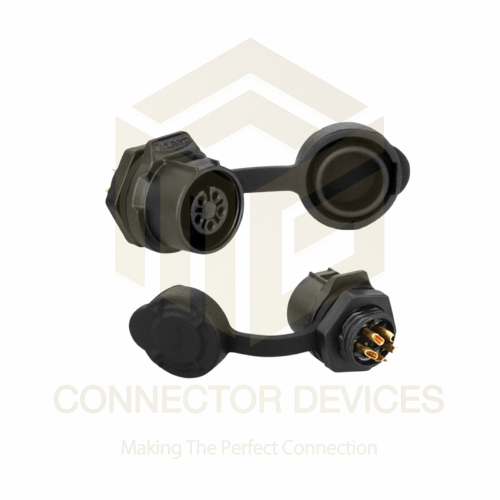

LP12 125V 5A 5Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal

234.0 INR/Piece

Get a Price/Quote

Product Details:

Usage Device-to-device electrical connection
Input Solder terminal pins
Output 5-pin female connection
Power Supply Electric
IP Rating IP67
Components Plastic shell, 5 solder pins, mounting nut
Operating Temperature -20C to +85C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP12 125V 5A 5Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 234.0 INR/Piece

Connector Type Solder terminal
Insulation Resistance 500M at 500V DC
Contact Material Copper alloy, gold plated
Shell Material Engineering plastic
Cable Range 6mm (not included)
Sealing Silicone rubber gasket
Mounting Type Panel mount with threaded lock nut
Withstand Voltage 1500V AC/minute
Pin Arrangement 5 pins, circular layout
Gender Female
Standards Compliance RoHS compliant
Contact Resistance 5m
Flame Retardant Shell rated for flame retardancy
Mechanical Life >500 cycles

LP12 125V 5A 5Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Capacity 5A max current
Dimension (L*W*H) Approx. 49mm (L)
Power Source Wired/Electrical connection
Product Type Panel Mount Connector
Supply Voltage 125V
Operating Temperature -20C to +85C
Frequency 50/60 Hz (AC) compatible
IP Rating IP67
Components Plastic shell, 5 solder pins, mounting nut
Current Rating 5A
Features Waterproof, dustproof, plastic housing, easy installation, solder terminals
Color Black
Interface 5 Pin Female Socket
Application Industrial equipment, LED lighting, outdoor electrical systems, automation
Function Power connection, secure waterproof electrical interface
Weight 18g (approx.)
Usage Device-to-device electrical connection
Output 5-pin female connection
Power Supply Electric
Rated Voltage 125V AC/DC
Input Solder terminal pins
Size 12mm mounting hole diameter

Connector Type Solder terminal
Insulation Resistance 500M at 500V DC
Contact Material Copper alloy, gold plated
Shell Material Engineering plastic
Cable Range 6mm (not included)
Sealing Silicone rubber gasket
Mounting Type Panel mount with threaded lock nut
Withstand Voltage 1500V AC/minute
Pin Arrangement 5 pins, circular layout
Gender Female
Standards Compliance RoHS compliant
Contact Resistance 5m
Flame Retardant Shell rated for flame retardancy
Mechanical Life >500 cycles

LP12 125V 5A 5Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting mode:Easy locking type
Insertion and extraction force:1.5N Max
Wire specification:UL2464 24AWG*2C
Rated Current:5A
Contact dimension:Phi 1.0x5
Temperature and humidity:-4080C, 40C, 85%RH
Mating cycle: 1700 times

Rugged and Reliable Power Connectivity

Built for challenging outdoor and industrial scenarios, this connector's IP67 rating makes it highly resistant to dust and water ingress. Its robust construction ensures a long service life and secure electrical interfaces, while the mechanical life exceeds 500 cycles for repeatable, stable connections.

Easy Panel Installation with Threaded Lock Nut

This female socket features a panel mount design and a threaded lock nut that guarantees a firm and straightforward installation. The solder terminals are readily accessible, allowing professionals to achieve secure wiring for power supply and control circuits across various devices.

FAQ's of LP12 125V 5A 5Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How is the LP12 5-pin female socket installed on a panel?

A: The socket is mounted by drilling a 12mm hole in the panel, inserting the connector, and securing it with the threaded lock nut. The solder terminals make wiring simple and robust, ensuring a stable contact for each connection.

Q: What applications is this waterproof connector suitable for?

A: It is designed for industrial equipment, LED lighting, outdoor electrical systems, and automation projects where waterproof, dustproof, and reliable power connections are essential.

Q: When should I choose this IP67 connector over other types?

A: Choose this connector when you need superior protection against water and dust ingress, such as in outdoor or high-humidity environments, or when frequent, secure connections and disconnections are required.

Q: Where can this 5-pin socket be used effectively?

A: It performs exceptionally well in both indoor and outdoor installations, including control panels, electrical enclosures, lighting units, and automation control systems requiring safe, secure power delivery.

Q: What is the process for wiring this connector?

A: Attach your wires to the 5 solder terminals inside the socket, ensuring each is securely soldered. The cable is then routed through the panel, and the connector is locked in place using the threaded nut and gasket for a sealed result.

Q: What are the benefits of its engineering plastic shell and gold-plated contacts?

A: The flame-retardant plastic shell adds safety in demanding applications, while gold-plated contacts reduce contact resistance and enhance electrical conductivity, improving reliability over time.
