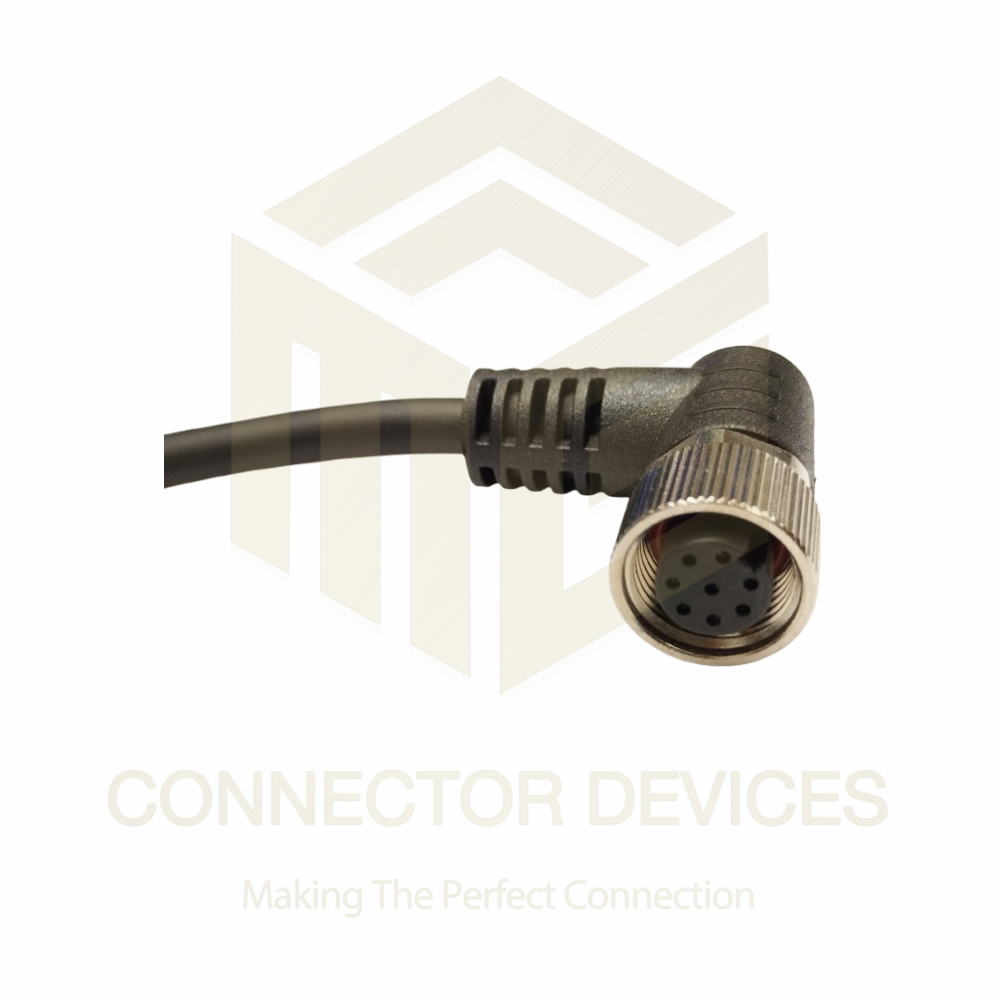

M12 8 Pin Female Right angle with cable

M12 8 Pin Female Right angle with cable Price And Quantity

• Minimum Order Quantity 100 Piece
• Price 1800.0 INR/Piece

M12 8 Pin Female Right angle with cable Product Specifications

• Pairs 4 Pair (8 Pin)
• Material Brass (nickel plated housing), copper alloy contacts
• Color Black
• Wire Gauge 24 AWG
• Cable Length 1m, 2m, 3m, 5m, 10m, or custom
• Flame Resistance Level UL 94V-0
• Length Customizable (Standard 1m, 2m, 3m, etc.)
• Sheild Yes, overall shielded
• Connector Type Solder/Crimp type, M12 coding (A-coded)
• Insulation PVC or PUR
• Male End Type Cable Open End / Custom (optional)
• Female End Type Right Angle M12 Female
• Application Industrial Automation, Sensor Connection, Fieldbus systems
• Jacket Material PVC or PUR
• Capacity Standard signal or power transmission
• Outer Diameter 6.0-7.5 mm (depending on cable type)
• Cable Type PVC/PUR, Multi-core Cable
• Number of Conductor 8 Conductors
• Connector M12 8 Pin Female Right Angle
• Voltage Rating Max 250V AC/DC
• Temperature -40C to +85C

• Current Rating Max 4A
• Contact Resistance 5m
• RoHS Compliance Yes
• Packaging Individually packed or bulk as required
• Shield Coverage Tinned copper braid, >80% coverage
• Contact Plating Gold plated
• Mounting Type Free hanging, in-line connection
• Wire Insulation Material Polyethylene/Polypropylene depending on type
• Cable Structure Stranded copper wire
• Operation Frequency up to 500 MHz (for signal)
• IP Rating IP67 (when mated)
• Bend Radius Min. 5x cable diameter (dynamic)
• Termination Type Pre-wired, ready-to-use
• Insulation Resistance >=100M at 500V DC
