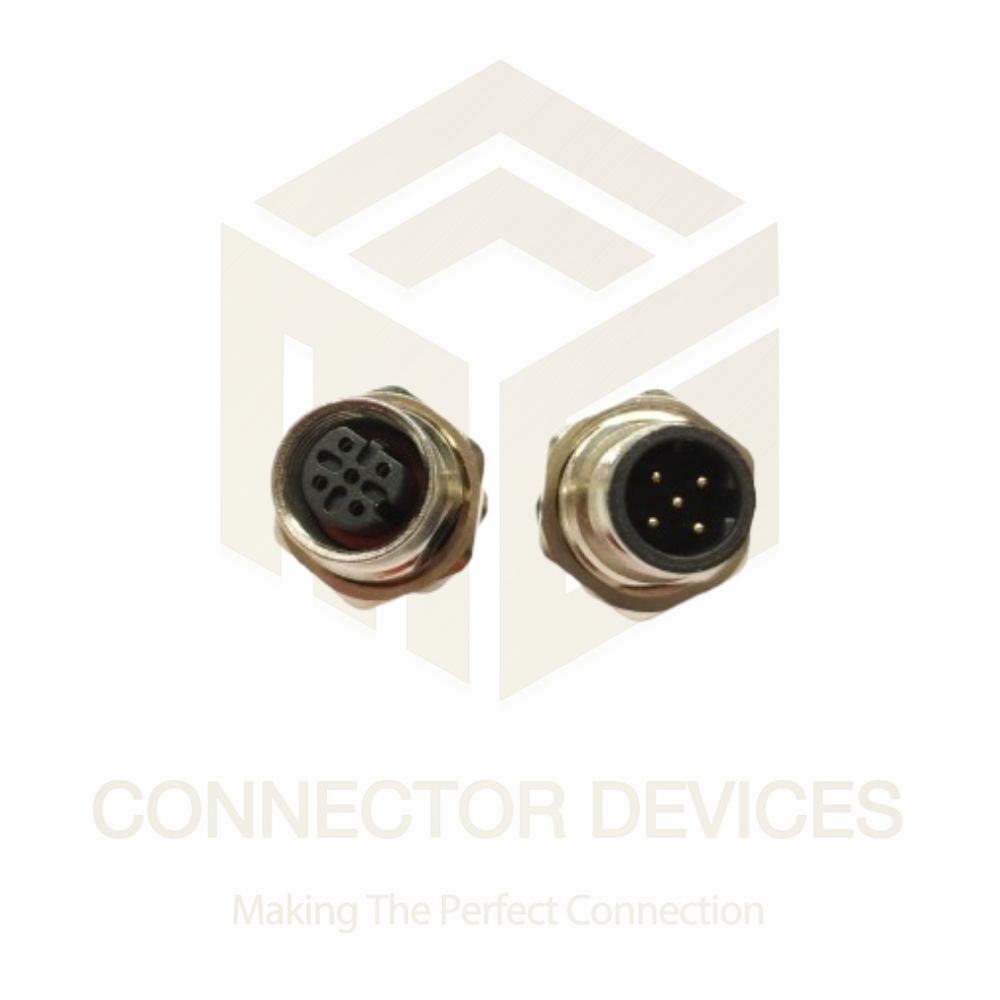

M12 D coded Bulkhead

Get a Price/Quote

Product Details:

Connector Type M12 D-coded (IEC 61076-2-101)
Female End Type M12 D-coded female panel mount
Male End Type N/A - usually panel mount only
Temperature -25C to +85C (operational)
Voltage Rating 60V AC/DC
Pairs 2 pairs (4-pin D-coding)
Material Brass (contacts), PA66 (shell), Nickel-plated
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

M12 D coded Bulkhead Price And Quantity

Minimum Order Quantity 100 Piece

M12 D coded Bulkhead Product Specifications

Material Brass (contacts), PA66 (shell), Nickel-plated
Capacity Up to 100 Mbps (Fast Ethernet)
Voltage Rating 60V AC/DC
Sheild Yes, 360 EMC shielding
Application Ethernet, PROFINET, Industrial Networking
Pairs 2 pairs (4-pin D-coding)
Flame Resistance Level UL 94 V-0
Wire Gauge 22 AWG
Connector M12 D-coded bulkhead
Female End Type M12 D-coded female panel mount
Color Black (jacket), Grey (connector body)
Jacket Material PUR or PVC
Temperature -25C to +85C (operational)
Male End Type N/A - usually panel mount only
Cable Type CAT5e, 4x2x22AWG shielded, PUR/PVC jacket
Insulation High-grade PVC insulation
Outer Diameter 5.9 mm 0.2 mm
Cable Length Available per order/specification
Connector Type M12 D-coded (IEC 61076-2-101)
Length Customizable: 0.3m, 1m, 2m, 5m, 10m or as specified
Number of Conductor 4 conductors

Mechanical Life >100 mating cycles
Current Rating Maximum 4A per contact
Ingress Protection IP67 rated (dust-tight, water immersion)
Contact Resistance 5 m
Contact Plating Gold plated contacts
Housing Colour Nickel-plated (silver grey)
Coding D-coded for Ethernet signal integrity
Insulation Resistance >100 M at 500V DC
Mounting Type Front or rear panel mounting (M16x1.5 thread)

Product Description

Unlock robust connectivity with the M12 D-coded Bulkhead, designed for unassailable performance in demanding industrial environments. Procure a sublime solution featuring IP67 ingress protection, ensuring it is dust-tight and withstands grandiose water immersion. Utilise gold-plated contacts for reliable Ethernet and PROFINET signal transmission at speeds up to 100 Mbps. Offering customisable lengths, high-grade PVC insulation, and 360 EMC shielding, this connector surpasses expectations. Its mechanically resilient structure, front or rear mounting options, and flame-resistant construction make it an unrivalled asset for modern networking.

Versatile Applications & Competitive Edge

The M12 D-coded Bulkhead is ideally suited for industrial networking, Ethernet, and PROFINET applications in factories, automation lines, and heavy machinery. Its design excels in harsh settings, such as transportation systems and outdoor telecom equipment. Competitive advantages include customisable cable lengths, robust flame resistance, secure EMC shielding, and nickel-plated housing. Its grandiose durability and sublime signal integrity consistently deliver reliable performance, positioning it as the preferred choice for demanding environments.

Export Markets, Packaging, and Payment Valuation

Our M12 D-coded Bulkhead enjoys high valuation across global markets, with main exports spanning Europe, America, Asia, and the Middle East. Each shipment is meticulously packaged to ensure unassailable delivery integrity and dispatched promptly. Payment terms offer flexibility with options such as advance payment, T/T, or L/C, streamlining the procurement process for distributors, importers, traders, and manufacturers throughout India and abroad.

FAQ's of M12 D coded Bulkhead:

Q: How does the M12 D-coded Bulkhead ensure signal integrity for Ethernet applications?

A: The connector utilises gold-plated contacts and 360 EMC shielding for unassailable protection against interference, supporting stable Ethernet and PROFINET data transmission up to 100 Mbps.

Q: What are the recommended usage environments for this bulkhead connector?

A: It is designed for harsh industrial settings, including factory automation, outdoor telecommunications, and transportation systems, owing to its IP67 dust-tight and water immersion resistance.

Q: When should I opt for customizable cable lengths?

A: Customisable cable lengths are ideal when precise installation requirements or unique application layouts demand tailored connectivity solutions, enhancing both efficiency and performance.

Q: Where can M12 D-coded Bulkhead connectors be mounted?

A: These connectors can be front or rear mounted on panels using the M16x1.5 thread, providing versatile installation in various equipment and enclosures.

Q: What is the procurement process and export service like?

A: Orders are processed and dispatched efficiently, with detailed packaging ensuring safe global delivery. Flexible payment terms accommodate diverse business needs, streamlining procurement for Indian and international distribution.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Sensor Connector' category

M12 To Rj45 Adapter Minimum Order Quantity : 100 Material : Other , Copper (core), PVC (jacket) Application : Industrial Ethernet, Fieldbus system, Network connection Temperature : 20C to +80C Color : Black Connector : M12 Acoded to RJ45 male plug Number of Conductor : 8 Flame Resistance Level : UL94V0 Wire Gauge : 24 AWG Pairs : 4 Voltage Rating : 30 V AC/DC Sheild : Yes, overall shielded Capacity : 10/100 Mbps Ethernet Male End Type : RJ45 8P8C male Cable Type : other, Cat5e FTP Jacket Material : PVC Female End Type : M12 Acoded 8 pin female Length : 0.3 Meter Cable Length : 30 cm Connector Type : Other, Straight Outer Diameter : 6.0 mm Insulation : HDPE

Send Inquiry

M12 Sensor Connectors 6 Pin Minimum Order Quantity : 100 Material : Other , Nickelplated Brass (Connector), PVC (Cable) Application : Industrial automation, sensors, actuators Temperature : 25C to +80C Color : Black Connector : M12 Circular, threaded Number of Conductor : 6 Flame Resistance Level : UL94V0 Wire Gauge : AWG 22 Pairs : Single pair; 6 individual wires Voltage Rating : 250 V AC/DC Sheild : Yes, full tinned copper braiding Capacity : Up to 4A per contact Male End Type : M12 Male, Acoded, straight or angled Cable Type : other, Shielded multicore cable Jacket Material : PVC Female End Type : M12 Female, Acoded, straight or angled Length : Customizable, typically 1 m, 2 m, 5 m Cable Length : Available in 1 m, 2 m, 5 m, custom lengths Connector Type : Other, M12, 6 Pin, Acoded Outer Diameter : 6.2 mm Insulation : PVC/PE Insulation

Send Inquiry

M12 SENSOR CONNECTORS FULL METAL A CODED Price : 900.00 INR/Piece Minimum Order Quantity : 10 Material : Metal Application : Industrial Temperature : 40c to +70 Celsius (oC) Color : White Connector : MALE Number of Conductor : 3

Send Inquiry

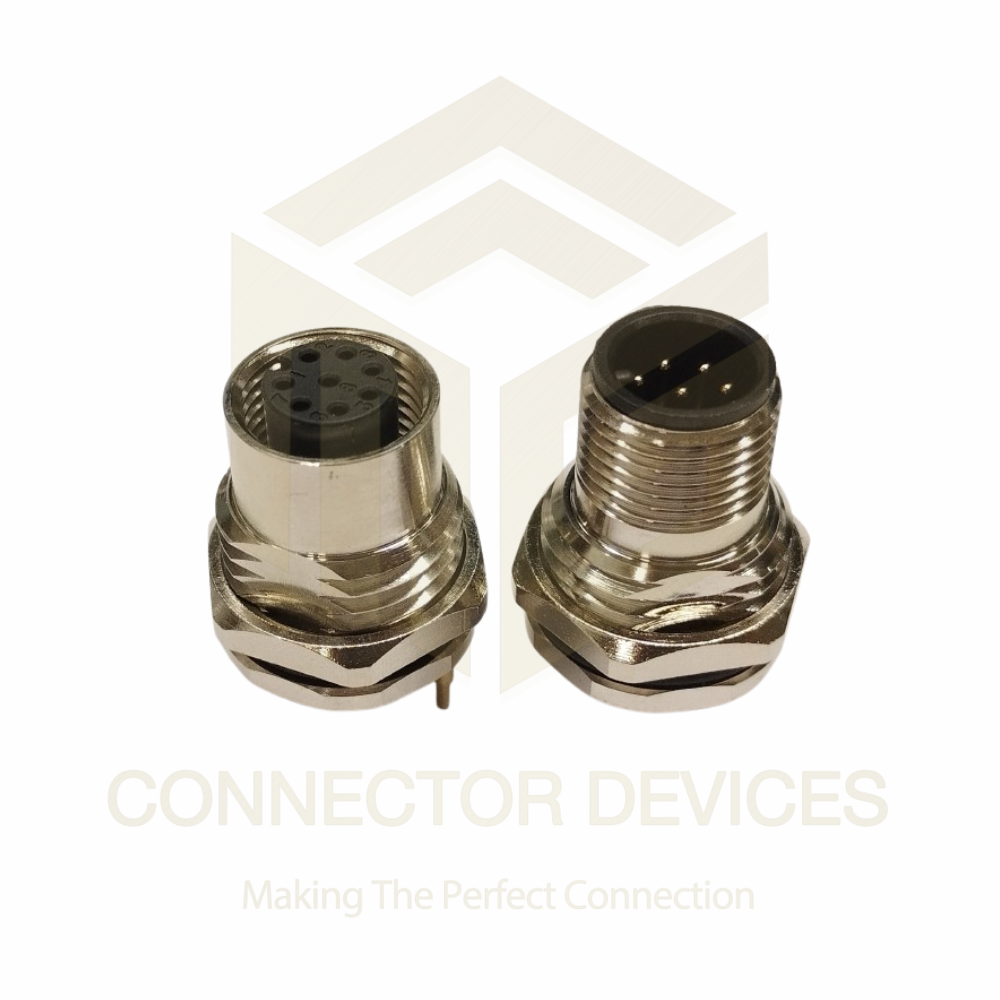

M12 Bulkhead PCB Mount front nut with supporting leg Price : 00240027 INR/Piece Minimum Order Quantity : 100
