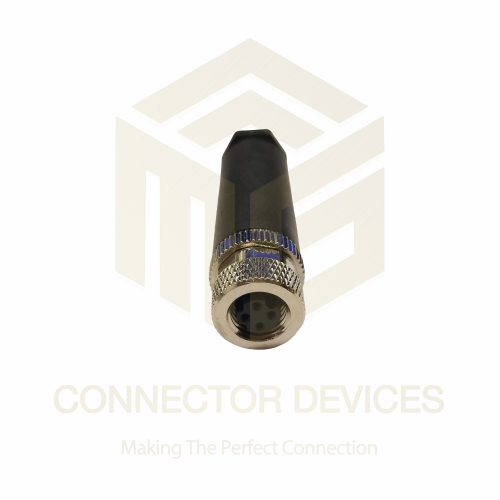

M8 4 Pin Female D Coded

Name: M8 4 Pin Female D Coded
Brand: CONNECTOR DEVICES
Price: 1000 INR
Availability: InStock

1000 INR/Piece

Get a Price/Quote

Product Details:

Male End Type M8 D-coded 4 pin male (on cable or panel)
Voltage Rating 30V AC/DC
Temperature -25C to +80C
Application Ethernet, Industrial automation, sensor connectivity
Pairs 1
Capacity Up to 100 Mbps (Fast Ethernet)
Connector M8 4 Pin Female D-Coded
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

M8 4 Pin Female D Coded Price And Quantity

Minimum Order Quantity 100 Piece
Price 1000 INR/Piece

M8 4 Pin Female D Coded Product Specifications

Insulation PVC insulation
Male End Type M8 D-coded 4 pin male (on cable or panel)
Flame Resistance Level UL 94V-0
Length Customizable (typically 1m, 2m, 5m)
Number of Conductor 4
Sheild Yes, overall shielding (braided metal) for EMI/RFI protection
Cable Type Industrial Ethernet patch cable
Color Black
Outer Diameter 5.5 mm (typical)
Application Ethernet, Industrial automation, sensor connectivity
Voltage Rating 30V AC/DC
Cable Length Available from 0.5m to 10m, or custom
Capacity Up to 100 Mbps (Fast Ethernet)
Pairs 1
Wire Gauge 24 AWG
Jacket Material PUR (Polyurethane) or PVC
Temperature -25C to +80C
Material Copper (conductors), PA66 GF (housing)
Female End Type M8 D-coded 4 pin female (screw locking)
Connector Type D-coded (T568B standard) Ethernet / Profinet
Connector M8 4 Pin Female D-Coded

Shielding Type Foil and braid
Maximum Current 4A per contact
Cable Shield Material Tinned copper braid (85% coverage)
Contact Plating Gold over nickel-plated brass
Standards Compliance IEC 61076-2-114
Ingress Protection IP67 waterproof, dustproof
Halogen Free Optional halogen-free models available
Impedance 100 Ohms (for data pairs)
Mounting Style Panel-mount (for panel version), overmolded (for cable version)
Mechanical Operation Cycle life > 100 mating cycles

Product Description

Experience the acclaimed M8 4 Pin Female D Coded connector, renowned across India for its illustrious performance and unwavering reliability. This industrial Ethernet patch cable stands out with its inestimable durability-courtesy of gold-over-nickel-plated brass contacts and an IP67 rating for enviable protection against water and dust. Boasting a lofty cycle life of over 100 mating cycles, it meets IEC 61076-2-114 standards and enjoys favorable reviews for mechanical robustness. Obtain the lowest prices through our direct distribution network-ideal for manufacturers and wholesalers seeking quality without compromise.

Unmatched Advantages & Versatile Applications

The M8 4 Pin Female D Coded delivers primary competitive advantages such as overall braided shielding for EMI/RFI protection, optional halogen-free models, and robust flame resistance (UL 94V-0). Its dependable performance strengthens Ethernet, industrial automation, and sensor connectivity setups. Suitable for harsh environments and customizable in length, it's trusted for flexible deployment across robotics, machinery, and process control. Distributors, exporters, and manufacturers in India value its reliability and wide compatibility.

Efficient Sample Policy, Certifications & Delivery

Samples of the M8 4 Pin Female D Coded are delivered promptly, accompanied by all relevant certifications for worry-free quality assurance. Our quick dispatch ensures you receive your examples or bulk orders on time, with drop-off available at multiple FOB ports in India. Seamless service flows from sampling to large-scale commitments, supporting rapid project starts and compliance with IEC 61076-2-114 and UL 94V-0 standards.

FAQ's of M8 4 Pin Female D Coded:

Q: How does the M8 4 Pin Female D Coded connector ensure reliable signal transmission in industrial environments?

A: The connector features gold-over-nickel-plated contacts, multilayer shielding (foil and braid), and an IP67 rating for waterproof and dustproof protection, ensuring stable performance and reduced signal interference.

Q: What is the typical cycle life of the M8 4 Pin Female D Coded connector?

A: It is engineered for a lofty mechanical operation, supporting more than 100 mating cycles for prolonged and dependable use in industrial settings.

Q: Where can the M8 4 Pin Female D Coded cable be used effectively?

A: It is ideal for Ethernet networks in industrial automation, machinery, robotics, and sensor connectivity, where durability and secure, shielded connections are critical.

Q: What is the process for obtaining samples of the M8 4 Pin Female D Coded cable?

A: Send a sample request through our distributor channels in India; samples are delivered quickly, backed by required certifications and direct drop-off at major FOB ports.

Q: How does the optional halogen-free model benefit specific applications?

A: The halogen-free variant is beneficial in environments where reduced toxic emissions are required, such as public spaces or sensitive manufacturing zones, enhancing overall safety compliance.
