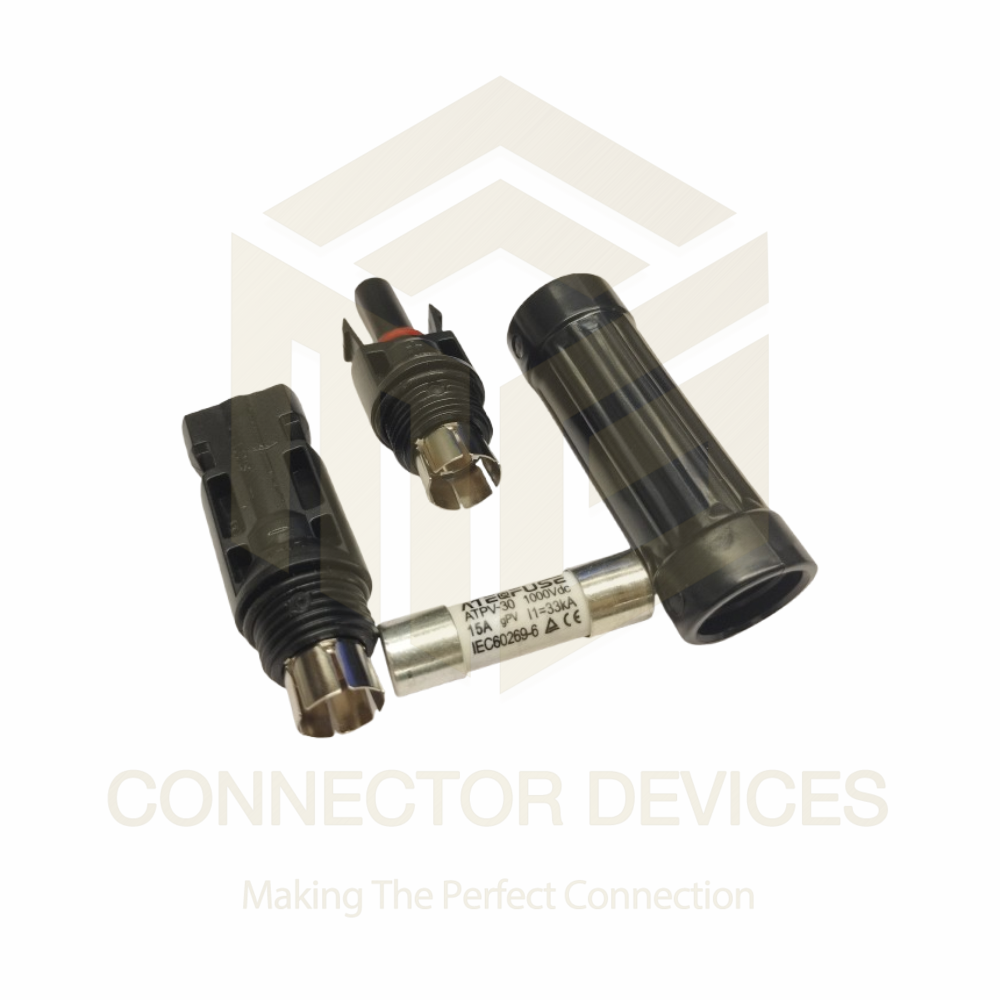

MC4 with Fuse 15A

Get a Price/Quote

Product Details:

Power Source Through solar PV panel connection
Output MC4 female connector
Operating Temperature -40C to +85C
Charging Voltage Up to 1000V DC
IP Rating IP67
Power Supply Solar panel circuit
Usage Overcurrent protection in PV string connections
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

MC4 with Fuse 15A Price And Quantity

Minimum Order Quantity 100 Piece

MC4 with Fuse 15A Product Specifications

Frequency DC, not applicable
Rated Voltage 1000 V DC
Output MC4 female connector
Power Source Through solar PV panel connection
Weight 23 g
Supply Voltage up to 1000 V DC
Operating Temperature -40C to +85C
Current Rating 15 A
Color Black (housing), transparent (fuse holder)
Usage Overcurrent protection in PV string connections
Input MC4 male connector
Power Supply Solar panel circuit
Dimension (L*W*H) Approx. 951818 mm
IP Rating IP67
Capacity 15A Current Rating
Charging Voltage Up to 1000V DC
Size Standard MC4 size
Product Type MC4 with inline fuse
Thickness Standard MC4 profile
Function DC inline fuse protection for photovoltaic (solar PV) systems
Features Tool-free plug connection, UV resistant, high current capacity, quick replacement fuse
Application Photovoltaic solar system (DC connection protection)
Components MC4 compatible housing, 15A cartridge fuse
Response Time Instantaneous (as per fuse)
Interface MC4 type male & female

Cable Cross Section Supported 2.5-6.0 mm2
Connector Locking System Snap-in locking
Fuse Type Cylindrical glass cartridge fuse
Connector Type MC4 compatible
Insulation Material PPO (Polyphenylene Oxide)
Contact Resistance 0.5 m
Rated Surge Voltage 8 kV
Flammability Class UL94-V0
Maximum Conductor Diameter 5.5 mm
Standards Compliance TUV, CE certified
Removable Fuse Yes, easy replacement
Contact Material Copper (Tin plated)

Product Description

Upgrade your solar PV systems with our Elite MC4 with Fuse 15A. This grand connector boasts a reduced price and superlative quality, ensuring terrific overcurrent protection with its cylindrical glass cartridge fuse. Featuring a snap-in locking system, copper (tin-plated) contacts, and robust PPO insulation, this MC4 is both safe and reliable. Rated for 1000V DC, surge up to 8kV, and 15A capacity, it guarantees instant response and easy, tool-free fuse replacement. Fully TUV and CE certified, UV resistant, and IP67 rated, it ensures long-lasting performance in any installation. Shop now to power your system with confidence!

Application and Use of MC4 with Fuse 15A

The MC4 with Fuse 15A is tailored for photovoltaic solar system applications, providing DC inline fuse protection in solar PV string connections. Commonly used by solar installers, technicians, and system integrators, this connector is ideal for both residential and commercial solar panel setups. To use, simply connect the MC4 male interface to the input and the female to the output within the PV circuit, offering immediate and reliable overcurrent protection.

Markets Served and Packaging Details

Our MC4 with Fuse 15A enjoys strong demand in the main domestic market of India and significant export presence worldwide. Each shipment is managed for prompt delivery and secure packaging to protect product integrity, minimizing expenditure due to damages during transit. Whether ordered in bulk by wholesalers or individually by distributors, every order is prepared with careful attention to ensure client satisfaction from purchase to installation.

FAQ's of MC4 with Fuse 15A:

Q: How do I install the MC4 with Fuse 15A in a photovoltaic system?

A: Installation is straightforward; simply connect the MC4 male side to your solar PV panel input and the female side to the output connection. The snap-in locking system ensures a secure, tool-free fit.

Q: What level of overcurrent protection does this fuse offer?

A: The MC4 with Fuse 15A provides reliable overcurrent protection for up to 15 amps and 1000V DC, safeguarding your PV string connections from potential circuit damage.

Q: Where can I use the MC4 with Fuse 15A?

A: This connector is suitable for use in various solar photovoltaic applications, including residential, commercial, and industrial solar panel systems requiring robust DC connection protection.

Q: What is the process for replacing the fuse?

A: The fuse is easily removable-simply open the transparent fuse holder for quick, tool-free replacement, ensuring minimal downtime for maintenance.

Q: What benefits does the MC4 with Fuse 15A offer compared to standard connectors?

A: It combines superlative safety features such as IP67 weather protection, UV resistance, and certification to TUV and CE standards, ensuring a reliable, long-lasting solution for solar system protection.
