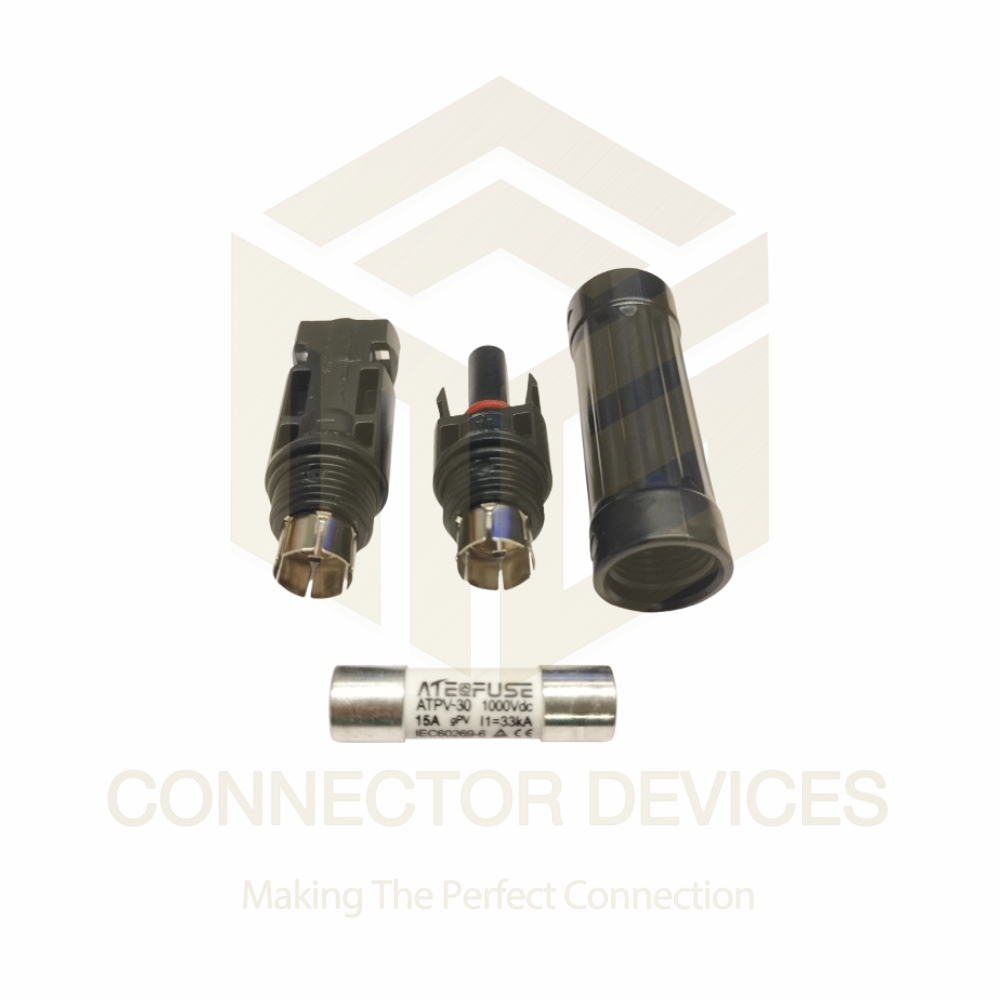

MC4 with Fuse 30A

Get a Price/Quote

Product Details:

Interface MC4 compatible
IP Rating IP67
Features UV resistant, Waterproof, Flame retardant, Locking mechanism, Easy installation, Removable fuse
Operating Temperature -40C to +85C
Charging Voltage 1000V DC max
Usage Solar panel and array connection
Power Supply Photovoltaic (Solar PV)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

MC4 with Fuse 30A Price And Quantity

Minimum Order Quantity 100 Pole

MC4 with Fuse 30A Product Specifications

Application Solar power systems, PV Module String Protection
Current Rating 30A
Capacity 30A
Charging Voltage 1000V DC max
Usage Solar panel and array connection
Weight Approx. 45g
Function Circuit protection for photovoltaic systems
Dimension (L*W*H) 95mm x 18mm x 18mm (approx.)
Operating Temperature -40C to +85C
Interface MC4 compatible
IP Rating IP67
Features UV resistant, Waterproof, Flame retardant, Locking mechanism, Easy installation, Removable fuse
Power Source Solar panels
Response Time Instant
Components MC4 connector, in-line fuse
Color Black
Product Type MC4 with Fuse
Output MC4 male/female connector
Rated Voltage 1000V DC
Size Standard MC4 size
Frequency DC only
Supply Voltage 1000V DC max
Power Supply Photovoltaic (Solar PV)
Input MC4 male/female connector

Replacement User replaceable fuse
Mounting In-line, tool-free connection
Fuse Type In-line cylindrical fuse
Humidity Range 0~100% RH
Max Voltage Drop 0.5V
Wire Size Range 2.5~6mm2 (14AWG~10AWG)
Material PPO Insulation,Copper Tin-plated contacts
Connector Type MC4 male and female
Flame Class UL94-V0
Mechanical Life >50 mating cycles
Contact Resistance 0.5 m

Product Description

Discover the potent MC4 with Fuse 30A, now on Sale-Ending Soon! Order Today to secure this ravishing in-line cylindrical fuse solution, purpose-built for photovoltaic systems. Crafted with PPO insulation and copper tin-plated contacts, it ensures a polished, reliable connection with ultra-low contact resistance of 0.5 m. With a robust flame class of UL94-V0, IP67 waterproof rating, and UV resistance, this connector offers unparalleled circuit protection. User-replaceable, tool-free installation and a secure locking mechanism make it the ideal choice for professional solar installers.

Advanced Solar Circuit Protection with MC4 30A Fuse

Apply the MC4 with Fuse 30A by simply integrating it in-line with your solar panel string-its tool-free, locking connectors support wire sizes from 2.5 to 6mm2. Featuring instant response time, a removable fuse, and IP67 waterproofing, it excels in all weather. Suitable for photovoltaic arrays, this MC4 delivers flame retardant, UV-resistant, and foolproof performance, making it perfect for plant and field installations.

Domestic Reach, Supply Offer, Delivery Estimate

The MC4 with Fuse 30A is available across the Indian domestic market, supported by consistent supply from reliable distributors and manufacturers. We offer fast delivery times and efficient logistics, with lead times and shipping charges estimated based on order size and location. Order with confidence; our robust network ensures your photovoltaic protection needs are efficiently met, with professional customer service before and after your purchase.

FAQ's of MC4 with Fuse 30A:

Q: How is the MC4 with Fuse 30A installed in a solar panel system?

A: The MC4 with Fuse 30A is designed for rapid tool-free, in-line installation; simply connect the male and female MC4 ends between your photovoltaic modules or array strings to enable circuit protection.

Q: What makes this MC4 with Fuse 30A connector particularly suitable for solar power applications?

A: Its UV-resistant PPO insulation, flame retardancy, IP67 waterproof rating, and robust 30A fuse make it ideal for outdoor, high-current solar panel and array connections, ensuring longevity and reliable protection.

Q: When should the fuse in the MC4 be replaced?

A: Replace the fuse whenever it has responded to a circuit fault or overcurrent event. The user-replaceable design allows for immediate maintenance without specialized tools.

Q: Where is this MC4 with Fuse 30A commonly used?

A: This connector is used in solar PV module string protection, array connections, and other photovoltaic system applications in residential, commercial, and utility-scale projects.

Q: What are the main benefits of using this MC4 with Fuse 30A in a PV installation?

A: The key benefits include fast installation, enhanced safety, minimal voltage drop, weatherproof durability, and instant overcurrent protection for your solar energy investments.

Q: What is the estimated delivery time and charge for orders in India?

A: Delivery times typically range from a few days to a week, with shipping charges estimated based on order volume and location within India. Please contact us for an exact offer.
