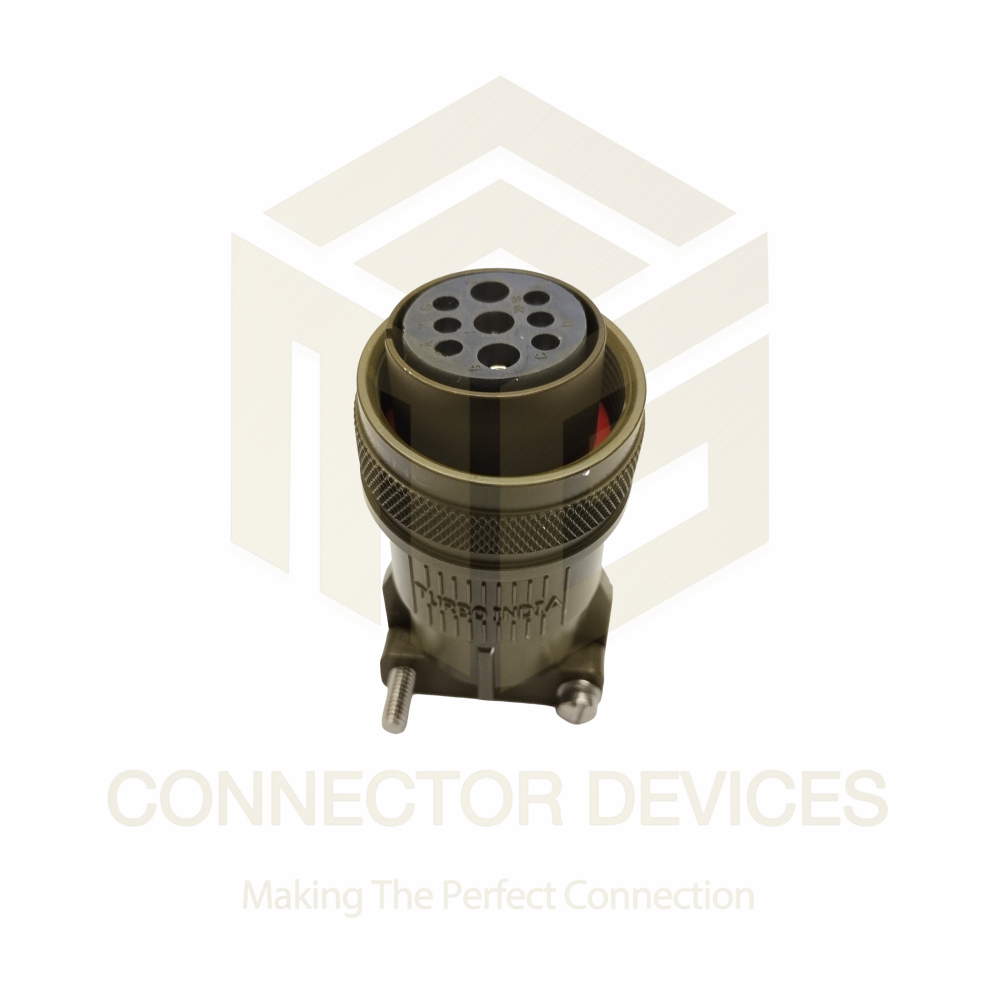

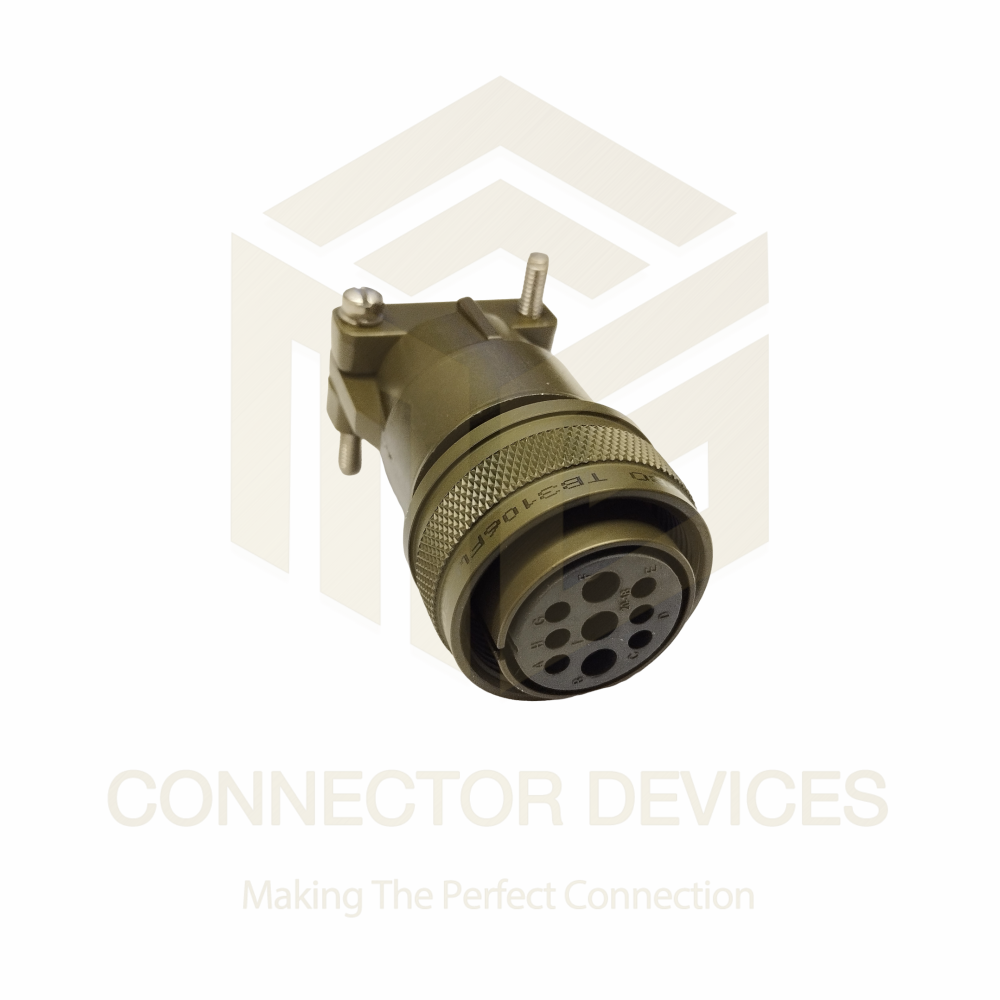

Military Connector TB3108FW-20-18SNC Female Plug

Military Connector TB3108FW-20-18SNC Female Plug

Get a Price/Quote

Product Details:

Female End Type Socket (Female)
Application Military, Aerospace, Industrial Equipment
Connector Threaded Coupling Plug
Temperature -55C to +125C
Voltage Rating 500V AC
Connector Type Circular, MIL-DTL-5015
Pairs Single
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Military Connector TB3108FW-20-18SNC Female Plug Price And Quantity

Minimum Order Quantity 100 Inch

Military Connector TB3108FW-20-18SNC Female Plug Product Specifications

Voltage Rating 500V AC
Insulation High-Grade Insulation
Outer Diameter Standard size (inquire for details)
Pairs Single
Connector Type Circular, MIL-DTL-5015
Jacket Material Thermoplastic Elastomer
Sheild EMI/RFI Shielded
Number of Conductor 18 Contacts
Female End Type Socket (Female)
Application Military, Aerospace, Industrial Equipment
Capacity Up to 18 circuits
Flame Resistance Level MIL-STD-202 compliant
Color Olive Drab
Male End Type Pin (Male, mates with TB3106 type)
Cable Length Customizable
Length As per requirement
Material Aluminum Alloy Body, Gold-plated Contacts
Cable Type Shielded Multi-core
Connector Threaded Coupling Plug
Wire Gauge 20 AWG
Temperature -55C to +125C

Contact Plating Gold over Nickel
Standards Compliance MIL-DTL-5015, MIL-STD-202
Ingress Protection IP67 (mated)
Shell Size 20
Mounting Style Cable Plug (Straight)
Durability > 500 mating cycles
Current Rating 13A per contact
Locking Mechanism Screw Lock
Mating Style Threaded coupling

Product Description

Product Name : Military Connector TB3108FW-20-18SNC Female Plug
Brand Name : Turbo India
No. of Pins : 9 Pin
Contact Material : Copper Alloy
Operating Temperature : -55 Degree to 125 Degree

Rugged Performance for Critical Applications

This connector is engineered for missions where reliability and performance are non-negotiable. With over 500 mating cycles, robust olive drab aluminum alloy housing, and gold-plated contacts, it thrives in military, aerospace, and industrial equipment installations. Its EMI/RFI shielded design and IP67 ingress protection ensure electrical integrity under the most demanding conditions.

Flexible Solutions to Meet Your Requirements

The TB3108FW-20-18SNC offers customizable cable lengths and supports shielded multi-core cable configurations. Its mounting style (straight cable plug) and optional wire gauge accommodate diverse setup needs. Flame resistance and wide temperature tolerance ensure suitability for a broad range of operational environments.

FAQ's of Military Connector TB3108FW-20-18SNC Female Plug:

Q: How is the TB3108FW-20-18SNC female plug installed and connected?

A: The TB3108FW-20-18SNC uses a threaded coupling (screw lock) and is mounted as a straight cable plug. Female sockets are provided for connection to a matching TB3106 male pin, ensuring secure and vibration-resistant installations typical in military and industrial applications.

Q: What are the main benefits of using gold-over-nickel contacts in this connector?

A: Gold-over-nickel contact plating offers excellent conductivity, resists corrosion, and ensures minimal contact resistance over time. This results in stable performance across more than 500 mating cycles, even under harsh environmental conditions.

Q: When should this connector be used in my project?

A: This connector is ideal for applications demanding high durability, secure coupling, reliable protection against dust and water ingress (IP67 mated), and compatibility with shielded multi-core cables. It is widely used in military, aerospace, and demanding industrial equipment.

Q: Where can the TB3108FW-20-18SNC be sourced in India?

A: The connector is available through multiple channels in India, including distributors, exporters, importers, manufacturers, traders, and wholesalers. Contact your preferred supplier for customization and details.

Q: What is the process for specifying cable length and wiring options?

A: Cable lengths and wiring arrangements are customizable according to your project needs. When ordering, specify the required cable length and confirm compatibility with 20 AWG shielded multi-core cables; manufacturers or distributors will guide you through the selection and assembly process.

Q: How does the connector ensure protection against electrical interference?

A: The connector's EMI/RFI shielded design-along with the use of high-grade insulation and thermoplastic elastomer jacketing-minimizes external electrical noise and interference, ensuring signal integrity in electronic and communication systems.
