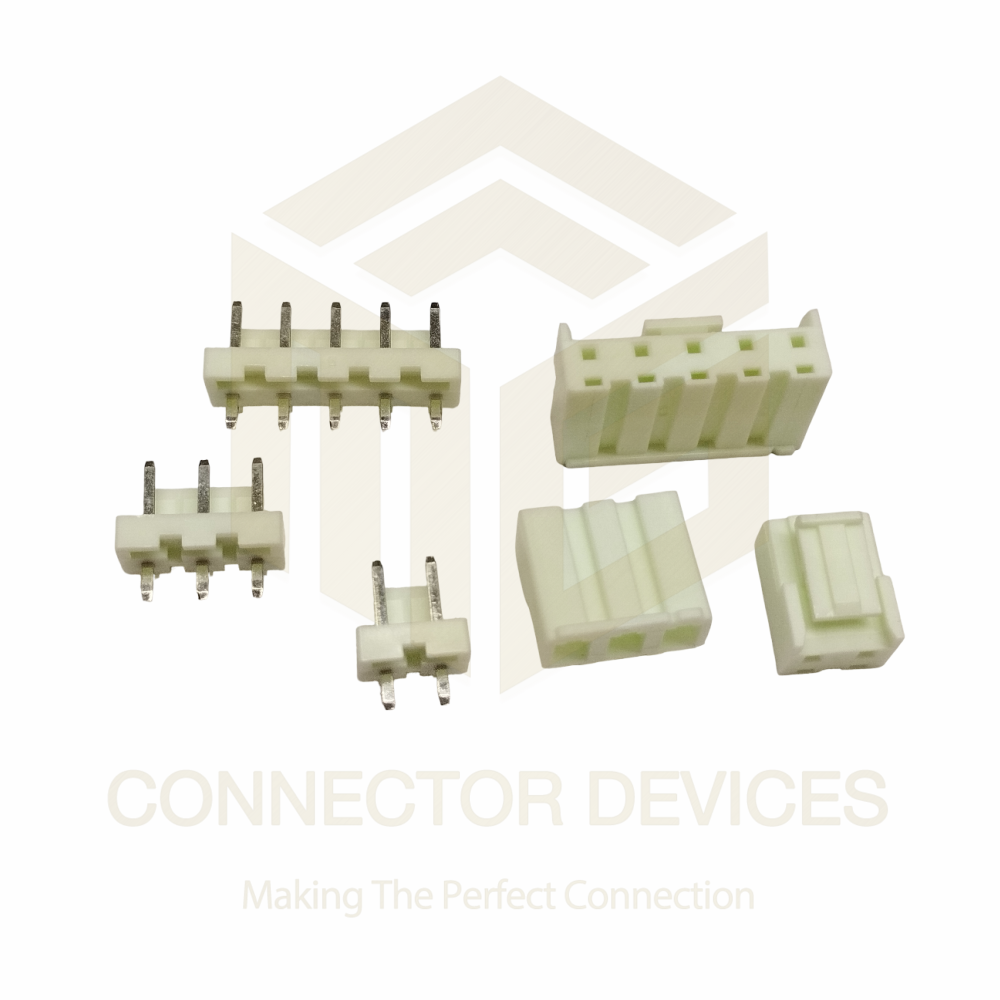

NV Series CPU Connector 5.08mm

Get a Price/Quote

Product Details:

Components Housing, Terminal Pins
Output Plug-in Terminal to CPU
Input Cable/Terminal Input
Features High reliability, Ease of mounting, Vibration resistant, Finger safe
IP Rating IP20
Operating Temperature -40C to +105C
Interface Screw Type/Spring Clamp
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

NV Series CPU Connector 5.08mm Price And Quantity

Minimum Order Quantity 100 Piece

NV Series CPU Connector 5.08mm Product Specifications

Color Green
Usage Industrial Automation, Circuit Board Connection
Size 5.08mm Pitch
Product Type CPU Connector
Weight Approximately 10g
Supply Voltage 250V AC/DC
Rated Voltage 250V AC/DC
Thickness Standard 5.08mm Pitch
Current Rating 16A max
Features High reliability, Ease of mounting, Vibration resistant, Finger safe
Operating Temperature -40C to +105C
Application Panel Mounting, PCB Mounting, Electrical Connections
Interface Screw Type/Spring Clamp
Output Plug-in Terminal to CPU
Input Cable/Terminal Input
Components Housing, Terminal Pins
Dimension (L*W*H) Varies by pin count, typical 5.08mm x number of poles
Function CPU Connector for NV Series PLCs and Automation Equipment
IP Rating IP20
Capacity Multiple Pin Configurations
Frequency 50/60 Hz

Wire Size 0.2mm2 - 2.5mm2 (AWG 24-12)
Contact Material Copper Alloy, Tin/Gold Plated
Number of Pins 2 to 24 Poles (Modular)
Mounting Type Panel/PCB Mount
Material High-grade Polyamide (PA66) UL 94V-0
Insulation Resistance >=500M at 500V DC
Mating Cycles >=50 cycles
Lock Mechanism Screw/snap locking
Contact Resistance 20m
Dielectric Strength >2,000V AC (1 min)

Product Description

Hot deal alert! The sought-after NV Series CPU Connector 5.08mm is now available with limited stock-act fast to enjoy exclusive savings. Celebrated for ineffable dependability, this modular connector supports 2-24 poles, crafted from high-grade PA66 (UL 94V-0) for excellent safety and durability. The copper alloy contacts are tin/gold plated, ensuring exceptional conductivity with minimal resistance. Designed for versatility, it boasts screw/snap locking, high current rating (16A), vibration resistance, and finger-safe housing-ideal for panel or PCB mounting in industrial automation and circuit board connections across India. Elevate your automation with trusted, high-performance connectors.

NV Series CPU Connector 5.08mm: Enhanced Features & Application

This NV Series connector delivers superior commercial utility, supporting a broad range of pin configurations for tailored solutions. Extra features include screw/snap locking mechanisms, high vibration resistance, and finger-safe design. Its modular nature allows quick panel or PCB mounting, catering to diverse automation and circuit board applications. For optimal use, select the appropriate pin count, mount securely using the provided interface, and connect your input cables for robust CPU integration in industrial equipment.

Order Processing & Export Markets for NV Series CPU Connector 5.08mm

Order processing is streamlined, with stock ready to meet both sample requests and bulk requirements. Delivery times are swift, emphasizing efficiency for Indian and global customers. Samples are available for initial assessment, supporting confident purchasing decisions. The NV Series CPU Connector serves main export markets across Asia, the Middle East, and Europe, with reliable logistics ensuring timely dispatch and satisfaction for distributors, exporters, and manufacturers worldwide.

FAQ's of NV Series CPU Connector 5.08mm:

Q: How do I install the NV Series CPU Connector 5.08mm for panel or PCB applications?

A: To install the NV Series CPU Connector, choose your desired pin configuration, then fix the connector securely onto a panel or PCB using the screw or snap locking mechanism. Connect your input cables and ensure all contacts are properly aligned.

Q: What commercial and industrial uses does this connector support?

A: The NV Series CPU Connector is ideal for industrial automation, circuit board connections, and CPU interfaces, widely used in PLCs, automation equipment, and electrical control panels due to its robust design and reliability.

Q: When is the NV Series CPU Connector available for purchase, and is sample testing possible?

A: The connector is available for immediate purchase with stock ready for order processing. Samples can be provided on request for customer evaluation before bulk orders.

Q: Where can this sought-after connector be exported or sourced from?

A: It is distributed, exported, and available for import across major Indian cities and for export to Asia, the Middle East, Europe, and other key international markets through authorized suppliers.

Q: What are the main benefits of choosing the NV Series CPU Connector?

A: Key benefits include high reliability, ease of mounting, finger-safe construction, vibration resistance, and support for multiple pin configurations, delivering performance and safety for critical industrial applications.

Q: How does the locking mechanism contribute to operational safety and stability?

A: The screw and snap locking features secure the connector in position, preventing accidental disconnection or loose contact, which is vital for stable industrial automation processes.
