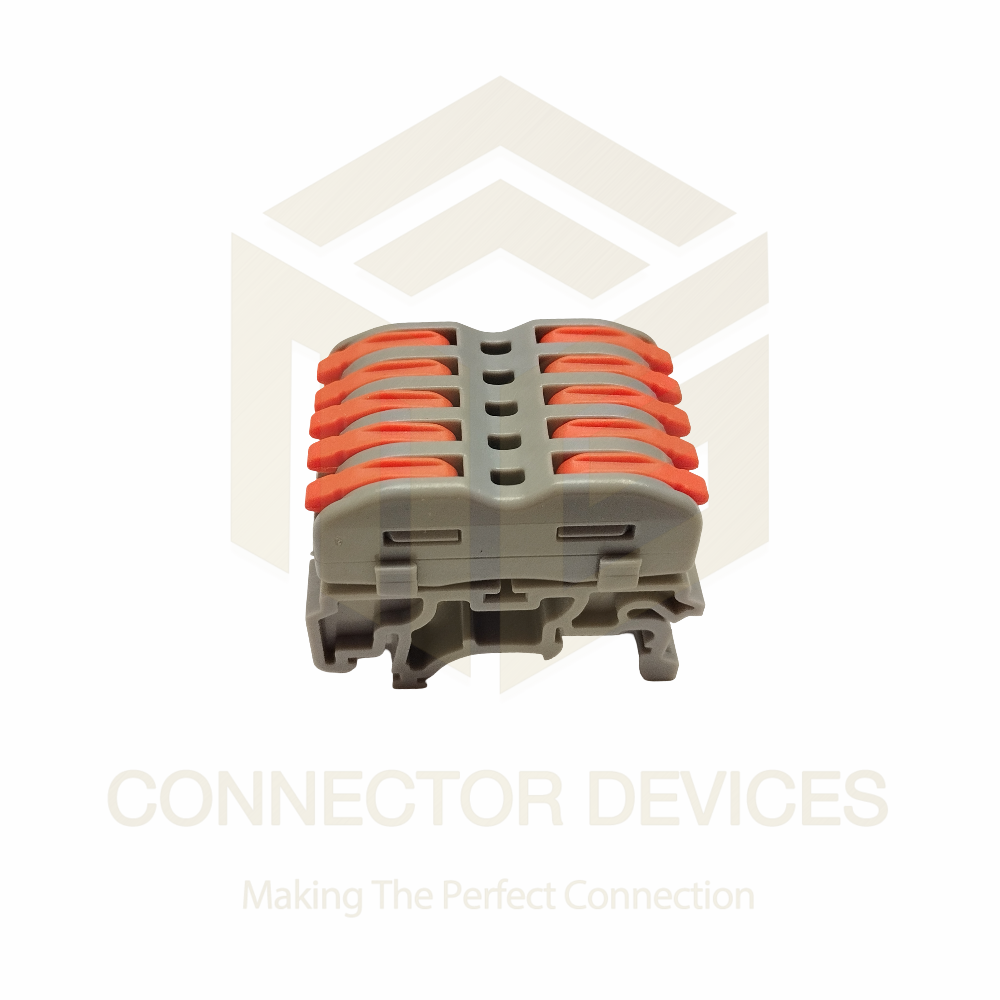

PCT connector Rail Mounting 5 in 5 out

Get a Price/Quote

Product Details:

Operating Temperature -40C to +85C
Interface Spring lever, tool-free connection
Input 5 channels/ports for input
Usage Distribution and termination of wires
Power Supply Not applicable (passive component)
Features Tool-free wiring, reusable, vibration proof, flame retardant body
Output 5 channels/ports for output
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PCT connector Rail Mounting 5 in 5 out Price And Quantity

Minimum Order Quantity 100 Piece

PCT connector Rail Mounting 5 in 5 out Product Specifications

Supply Voltage Up to 250V
Features Tool-free wiring, reusable, vibration proof, flame retardant body
Power Supply Not applicable (passive component)
Usage Distribution and termination of wires
Current Rating 32A max
Input 5 channels/ports for input
Color Grey and orange
Interface Spring lever, tool-free connection
Operating Temperature -40C to +85C
Components Polycarbonate body, spring/lever mechanism, copper alloy contacts
Weight Approx. 28 grams
Function Electrical wire connection and distribution (5 input, 5 output)
Capacity Can connect up to five wires per side
Power Source Not applicable (passive device)
IP Rating IP20
Application Panel wiring, industrial automation, control cabinets
Rated Voltage 250V AC/DC
Size Standard compact rail-mount
Frequency 50/60 Hz compatible
Product Type PCT Connector Rail Mounting (5-in 5-out)
Thickness Approx. 18 mm
Output 5 channels/ports for output
Dimension (L*W*H) Approx. 42 mm x 37 mm x 18 mm

Mechanical Life Over 50 connection cycles
Insulation Resistance >1000 M
Wire Size Compatibility 0.08-4.0 mm2 (28-12 AWG) solid/stranded wires
Flammability Rating UL94 V-0
Environmental Compliance Lead and halogen free
Contact Material Copper alloy
Mounting Type DIN rail mountable
Torque Tool-free activation lever
Body Material Flame-retardant polycarbonate

Product Description

Pick Yours now - the exclusive PCT Connector Rail Mounting 5 in 5 out, a premier choice for efficient electrical wire distribution and termination. Crafted with a flame-retardant polycarbonate body and copper alloy contacts, this masterpiece boasts a noteworthy tool-free spring lever mechanism, ensuring swift, reusable, and vibration-proof connections. Compatible with solid and stranded wires (0.08-4.0 mm2; 28-12 AWG), it features a mechanical life exceeding 50 cycles, flammability rating UL94 V-0, and insulation resistance above 1000 M. Elevate your panel wiring with this compact, IP20-rated, and environmentally compliant connector.

Exceptional Versatility for Diverse Applications

Ideal for panel wiring, industrial automation, and control cabinets, the PCT Connector Rail Mounting 5 in 5 out is suitable for a broad range of environments. Its DIN rail-mountable design enables swift installation and organized wire management. With primary competitive advantages including tool-free wiring, a flame-retardant body, and vibration proof reliability, it's perfect for professionals seeking efficiency and safety at the site of application.

Certifications, Sampling, and Secure Shipping

The PCT connector is certified to international standards, ensuring reliable performance with UL94 V-0 rated flammability and RoHS environmental compliance. For clients considering bulk orders or testing, sample policies are available upon request at a competitive asking price or proposal amount. We offer FOB port services with secure shipping options, guaranteeing prompt and safe delivery to your location.

FAQ's of PCT connector Rail Mounting 5 in 5 out:

Q: How is the PCT Connector Rail Mounted and what tools are required?

A: The PCT Connector Rail Mounting 5 in 5 out is DIN rail mountable and features a tool-free spring lever mechanism. No special tools are required for installation or wire connection, making the process quick and straightforward.

Q: What wires are compatible with this connector?

A: This connector supports solid or stranded copper wires with sizes ranging from 0.08 mm2 to 4.0 mm2 (28-12 AWG), making it versatile for various industrial and panel wiring requirements.

Q: Where can this connector be effectively used?

A: It is exceptionally suitable for panel wiring, industrial automation, and control cabinet applications, offering secure and organized multi-wire connections in compact spaces.

Q: What are the primary advantages of using this connector?

A: The main benefits include tool-free, reusable connections, flame-retardant housing, vibration proof reliability, IP20 finger protection, and compliance with global safety and environmental standards.

Q: What is the process for ordering samples or requesting pricing?

A: You can request samples or inquire about the asking price and proposal amount by contacting the distributor, exporter, or manufacturer in India. We provide a sample policy and offer secure FOB port shipping for orders.
