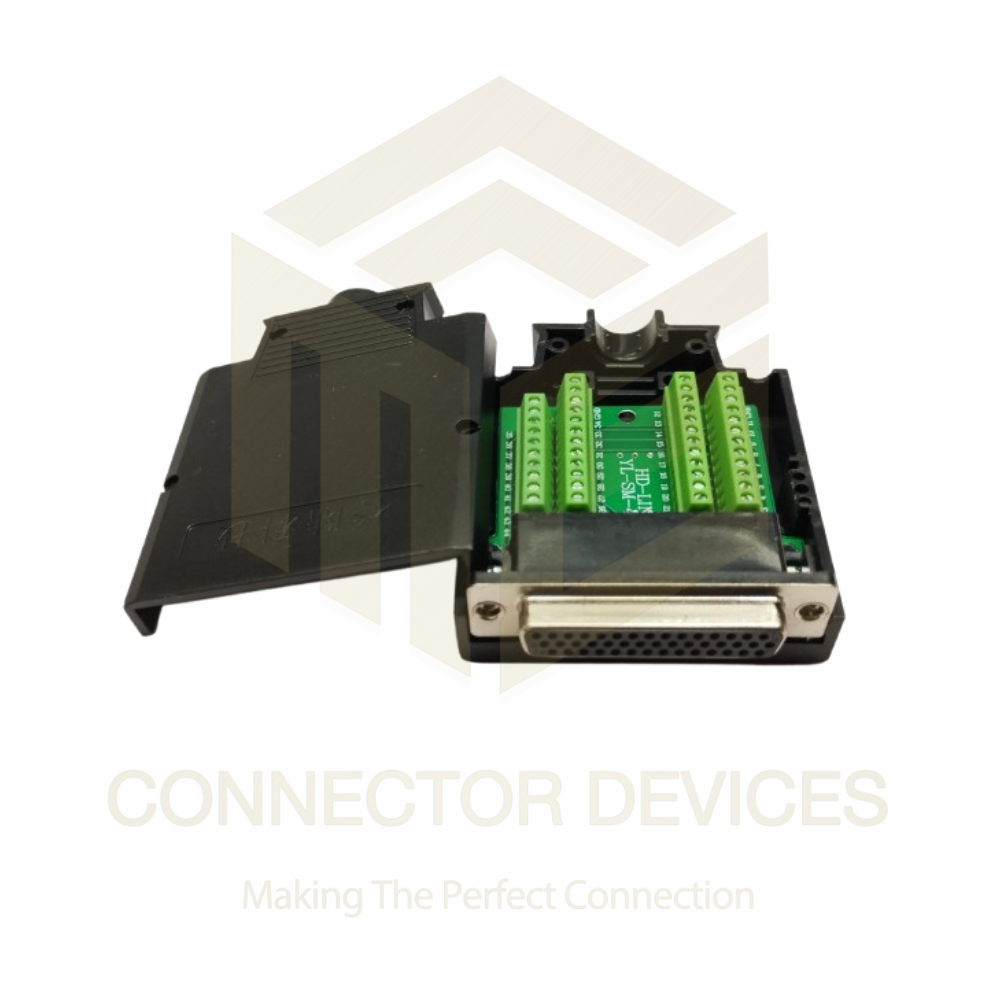

RS232 44 Pin Dsub Solderless
Product Details:
- Features Solderless screw terminals, Removable shell, Corrosion-resistant metal housing, Easy assembly
- Output RS232 signals
- Input RS232 signals
- IP Rating IP20
- Components Metal shell, 44 contact pins, Solderless screw terminals
- Operating Temperature -55C to +105C
- Usage For connecting RS232 serial devices
- Click to View more
X
RS232 44 Pin Dsub Solderless Price And Quantity
- 100 Piece
RS232 44 Pin Dsub Solderless Product Specifications
- Standard shell thickness approx. 1.5mm
- 44-pin connectivity
- Standard 44-pin D-Sub size
- DC to 1 MHz (typical data rate)
- IP20
- 250V AC (maximum)
- RS232 data communication interface
- RS232 signals
- Solderless screw terminals, Removable shell, Corrosion-resistant metal housing, Easy assembly
- Data transfer, Device connectivity, Testing, Prototyping
- RS232 signals
- Approx. 69mm x 16mm x 30mm
- D-Sub Connector (Solderless)
- 5A (maximum)
- -55C to +105C
- Silver/Grey (metallic)
- 44 pin D-sub (RS232 standard pinout)
- Not applicable (passive connector)
- Approx. 34g
- Metal shell, 44 contact pins, Solderless screw terminals
- For connecting RS232 serial devices
- 2.74 mm
- Steel, nickel-plated
- Panel Mountable
- Male/Female available
- Jack screws (4-40 UNC) for secure connection
- < 30 m
- For multi-core RS232 cable
- 500 mating cycles
- > 1000 M at 500V DC
- Up to 95% (non-condensing)
- Phosphor Bronze with gold plating
- Yes
Product Description
Product RS232 Female Connector Solderless
Number Of Pins 44 Pin
Current - 10Amp
Wire Range: 20-26Awg
Connector Type: Female & Male With Case
Screws : Steel Plated
Pin : Brass
Color : Black
Effortless Panel Mounting for Versatile Applications
Designed with a panel-mountable structure and reliable jack screws, this 44 pin D-sub connector allows stable installation in control panels, data terminals, and test rigs. Its removable shell and solderless terminals facilitate rapid changes or maintenance without specialized tools, streamlining workflows for professionals in data transfer and device connectivity.
Superior Contact Performance and Longevity
Utilizing phosphor bronze contacts with gold plating, the connector delivers superior conductivity and resilience against tarnish or corrosion, even in humid settings up to 95% non-condensing. Rated for up to 500 mechanical mating cycles, users benefit from a long service life, making it an economical choice for prototyping and ongoing installations.
Flexible, Safe, and Compliant Design
Compatible with multi-core RS232 cables and featuring an easy-to-use screw terminal mechanism, this connector supports secure and adaptable configurations. Its RoHS-compliant, nickel-plated steel housing provides corrosion resistance, while the IP20 rating and insulation resistance ensure safe and stable operation in data communication tasks.
FAQ's of RS232 44 Pin Dsub Solderless:
Q: How do I assemble the RS232 44 Pin Dsub Solderless connector?
A: The connector features solderless screw terminals, allowing you to strip your multi-core RS232 cable, insert each wire into its respective pin slot, and tighten the screws for a secure connection. No soldering tools are required, making assembly swift and adaptable.Q: What benefits does the gold-plated phosphor bronze contact material provide?
A: Gold-plated phosphor bronze ensures excellent conductivity and low contact resistance (less than 30 m), while also offering robust protection against corrosion. This translates to reliable long-term performance and stable RS232 signal transmission.Q: When is it advisable to choose this panel-mountable RS232 connector?
A: Opt for this connector when you require a secure and easily maintainable RS232 interface in applications like device connectivity, data transfer, testing stations, or prototyping environments. Its panel-mounting capability and robust construction suit demanding setups.Q: Where can I source this connector in India?
A: This RS232 44 Pin Dsub Solderless connector is available through authorized distributors, exporters, importers, manufacturers, traders, and wholesalers across India. Contact your preferred supplier for stock and bulk orders.Q: What is the process for securing the connector to a panel?
A: The connector comes equipped with jack screws (4-40 UNC) for steadfast panel mounting. Position the connector in your device's designated cutout and fasten it using the included screws to ensure a reliable physical and electrical connection.Q: What types of cables and devices are compatible with this connector?
A: It is designed for use with multi-core RS232 cables and standard RS232-compliant devices. Its 44-pin layout supports connections for data transfer, device control, and test equipment integration.Q: What are the key advantages of the solderless and removable shell features?
A: Solderless screw terminals simplify initial installation and future modifications, reducing downtime. The removable metallic shell aids easy access for inspection or rewiring, all while providing corrosion resistance and maintaining signal integrity.Tell us about your requirement
