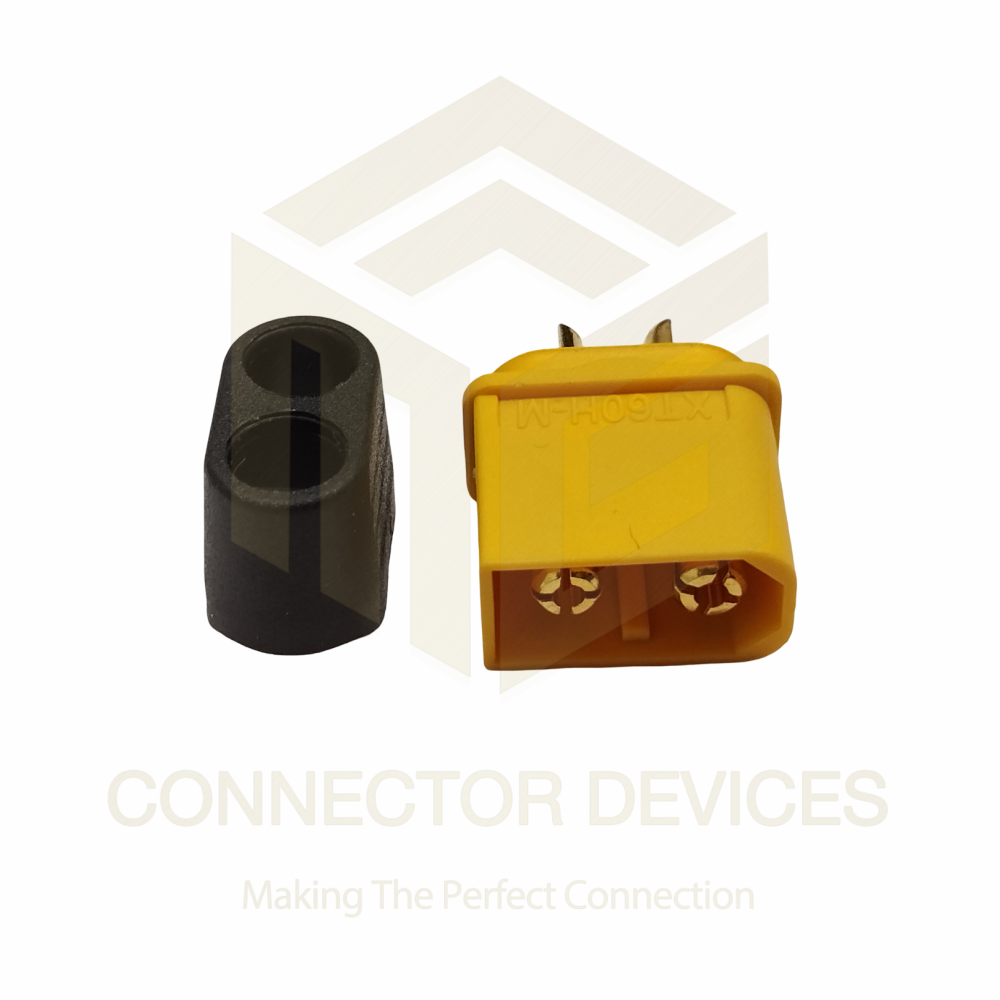

XT60H-M Connector
00240027 INR/Piece
Product Details:
- IP Rating Not rated/IP rating not specified
- Charging Voltage Up to 500V DC
- Power Supply Not Applicable (Passive Connector)
- Output Wire/Pin connection
- Input Wire/Pin connection
- Interface Solder type/Surface mount
- Usage Battery and ESC connections in RC models, drones, and hobby electronics
- Click to View more
X
XT60H-M Connector Price And Quantity
- 00240027 INR/Piece
- 100 Piece
XT60H-M Connector Product Specifications
- XT60 standard size
- High-current capacity, gold-plated contacts, heat-resistant nylon housing, anti-spark design, compact size
- Electrical connector for high-current applications
- Approximately 8g
- Connector housing, gold-plated pins
- DC 500V
- Not applicable (Passive Connector)
- Wire/Pin connection
- Not Applicable (Passive Connector)
- -20C to 120C (approximate)
- Up to 500V DC
- Not rated/IP rating not specified
- 15.5 x 21.5 x 8 mm (approximate)
- Wire/Pin connection
- Up to DC 500V
- RC hobbies, drones, lithium ion/li-poly battery connectors
- Solder type/Surface mount
- Rated for up to 30A continuous, 60A max
- Yellow (housing), Black (cover)
- Battery and ESC connections in RC models, drones, and hobby electronics
- XT60H-M Connector
- <40N
- >1000 times
- Nylon (housing), gold-plated brass (contacts)
- 0.55m max
- Panel Mount/Solder Mount
- Individual
- Male (XT60H-M)
- Up to 12AWG
- UL94 V-0
Product Description
- Connector series: XT60H
- Kind of connector: Male
- Contact plating Gold flash
- Colour: Yellow-Gray
- Current Rating: 60A
- Operating Temperature -20120C
- Compatible for Wire size up to 12AWG
Exceptional High-Current Performance
With a continuous current rating of 30A and a maximum rating up to 60A, the XT60H-M Connector is designed for high-power RC, drone, and battery pack applications. Its gold-plated brass contacts ensure minimal loss and superior connectivity, even under heavy electrical loads, making it an industry standard for reliable power delivery.
Built for Durability and Safety
Constructed from flame-retardant nylon (UL94 V-0) and featuring robust gold-plated pins, the XT60H-M offers heat resistance and long-term stability in harsh environments. Its anti-spark design minimizes connection hazards, while a low contact resistance of 0.55m ensures consistent electrical performance across more than 1000 mating cycles.
Versatile and Compact Installation
The XT60H-M's panel mount and solder mount options support flexible integration into custom enclosures or field repairs. With support for up to 12AWG wire and a space-saving standard XT60 size, it's ideal for both new builds and retrofitting in RC models, drones, and hobby electronics. Each connector is individually packed for convenience and ensured quality.
FAQ's of XT60H-M Connector:
Q: How do I properly mount and solder the XT60H-M Connector for secure installation?
A: To install the XT60H-M Connector, feed your pre-stripped wire (up to 12AWG) through the appropriate terminals on the connector. Solder the wires to the gold-plated contacts, ensuring a solid bond, and secure the assembly to a panel if required. Check the integrity of the solder joints for optimal performance.Q: What applications commonly use the XT60H-M Connector in RC and hobby electronics?
A: This connector is widely employed for battery and Electronic Speed Controller (ESC) connections in RC cars, drones, airplanes, and other hobbyist electronics. Its high current and voltage ratings make it a reliable choice for safely connecting lithium ion or LiPo battery packs to power systems.Q: When should I choose an XT60H-M Connector over other connector types?
A: Select an XT60H-M if your project demands high-current handling (up to 60A max, 30A continuous), robust mechanical durability, and flame-retardant safety. It excels in environments where secure, low-resistance connections are crucial, such as RC models, drones, and portable power tools.Q: Where can the XT60H-M Connector be used in my electronic setups?
A: The connector is suitable for installation anywhere high-current, low-loss connections are required-typically on battery packs, ESCs, charge/discharge leads, or power distribution panels in RC models, drones, robotics projects, and experimental electronics.Q: What is the process for replacing or remounting an XT60H-M Connector on equipment?
A: Desolder the wires from the old connector, ensure the contact surfaces are clean, then solder the wires to the new XT60H-M's gold-plated pins. For panel mounting, align the connector with the cutout, slip it into place, and fasten securely. Always test all connections before use to verify functionality.Q: What are the main benefits of using an XT60H-M Connector in power connections?
A: Benefits include its high current and voltage capacity (up to 60A, 500V DC), anti-spark safety, flame-retardant housing, easy handling, and gold-plated contacts for reduced oxidation and superior electrical performance. The connector's design enables frequent connections and disconnections without degrading reliability.Tell us about your requirement
