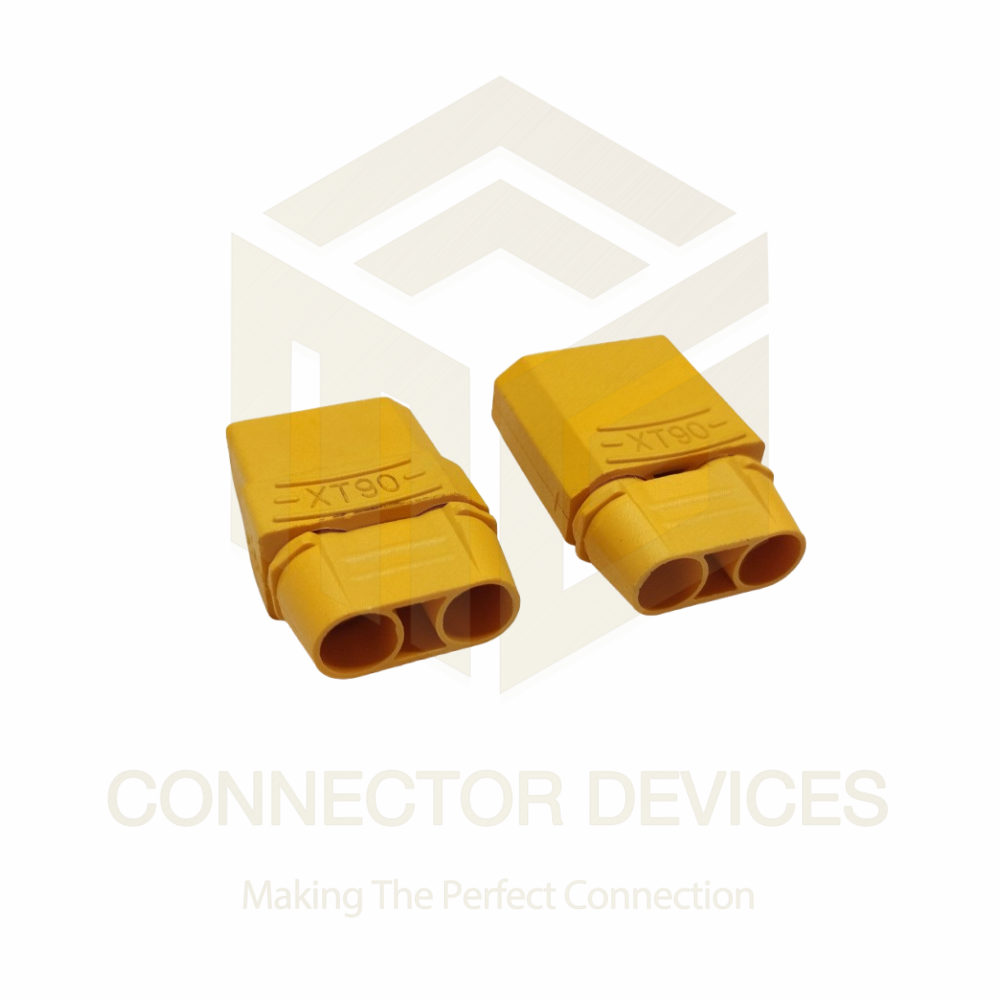

Xt90 Connector with cover

00240027 INR/Piece

Get a Price/Quote

Product Details:

Input Soldering wire input
Charging Voltage Rated up to 500V DC
Components Male and Female Connector with Protective Cover
Output Solder termination to device or wire
Power Supply Not Applicable (Connector Only)
Features Anti-spark protection, High current capability, Durable housing, Secure locking design
Usage Battery and ESC connections in RC models, drones, and electric vehicles
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Xt90 Connector with cover Price And Quantity

Minimum Order Quantity 100 Piece
Price 00240027 INR/Piece

Xt90 Connector with cover Product Specifications

Product Type Electrical Connector
Supply Voltage 500V DC max
Size Standard XT90 size
Power Supply Not Applicable (Connector Only)
Capacity Up to 90A continuous current
Dimension (L*W*H) 49 x 21 x 10 mm (approx. with cover)
Interface 2-pin plug male & female, solder connection
Operating Temperature -20C to +120C
Output Solder termination to device or wire
Features Anti-spark protection, High current capability, Durable housing, Secure locking design
Current Rating 90A continuous, 120A peak
Color Yellow
Usage Battery and ESC connections in RC models, drones, and electric vehicles
Application RC, UAV, battery packs, motor connections, electric vehicles
Weight Approx. 15g (per pair with cover)
Components Male and Female Connector with Protective Cover
Function High-current power connector for secure electrical connections
Rated Voltage 500V DC
Charging Voltage Rated up to 500V DC
Input Soldering wire input

Mount Type Cable mount / Inline mount
Polarity Protection Yes, prevents reverse connection
Contact Material Gold plated brass
Mating Cycles >1000 insertions
Flame Retardant Yes, UL94-V0 rated housing
Connector Cover Material High temperature nylon (PA) housing
Contact Resistance < 0.5 m
Wire Gauge Compatibility Compatible with 8AWG-10AWG cables

Product Description

Discover the world-class XT90 Connector with cover, a sensational choice for secure high-current connections in RC models, drones, battery packs, and electric vehicles. Designed with scarce gold-plated brass contacts, this customizable solution features a flame-retardant high-temperature nylon (PA) cover that's UL94-V0 rated for safety. Supporting 8AWG-10AWG wire, it boasts terrific anti-spark protection and inline or cable mount versatility. Reserve your XT90 today and experience a connector with a durable structure, secure locking design, and a capacity of up to 90A continuous current. Ideal for professionals who value premium, reliable connectivity.

Application & Advantages of XT90 Connector

The XT90 Connector with cover excels in applications requiring secure, high-current links such as battery and ESC connections in RC models, UAVs, and electric vehicles. Its primary competitive advantages include robust flame-retardant housing, anti-spark protection, and customizable mounting options for straightforward installation. Enjoy sensational durability and reliability with a secure locking design, gold-plated contacts, and high current capability. Use this XT90 Connector for a premium, dependable connection in any harsh or demanding environment.

Sample Policy, Certifications & Sale Offer

For product valuation and validation, sample XT90 Connectors are offered upon request to assess quality. These connectors come with reliable UL94-V0 flame retardant certification ensuring safety. FOB port options are available for streamlined sale and shipping. Take advantage of competitive sale prices, whether you're a distributor, exporter, importer, manufacturer, trader, or wholesaler in India. Our secure procurement process ensures prompt delivery and satisfaction with every order.

FAQ's of Xt90 Connector with cover:

Q: How does the XT90 Connector prevent reverse connection during installation?

A: The XT90 Connector is designed with polarity protection, ensuring a secure and correct connection every time, effectively preventing reverse connectivity and potential damage to your devices.

Q: What makes the XT90 Connector a world-class choice for high-current applications?

A: Its gold-plated brass contacts, durable flame-retardant nylon housing, and high current handling up to 90A continuous make it a reliable and safe choice for demanding uses like RC, UAVs, and electric vehicles.

Q: Where can the XT90 Connector with cover be effectively used?

A: This connector is optimum for RC models, drones, battery packs, motor connections, electric vehicles, and any devices needing robust high-current electrical connections.

Q: What is the sample policy for the XT90 Connector?

A: Sample units of the XT90 Connector can be requested for product valuation and evaluation before committing to a large order, ensuring quality and compatibility with your requirements.

Q: What are the main benefits of using the XT90 Connector with cover?

A: The connector offers anti-spark protection, a secure locking mechanism, compatibility with major wire gauges, and durable performance under a wide temperature range, promoting long-lasting, safe, and efficient connections.
