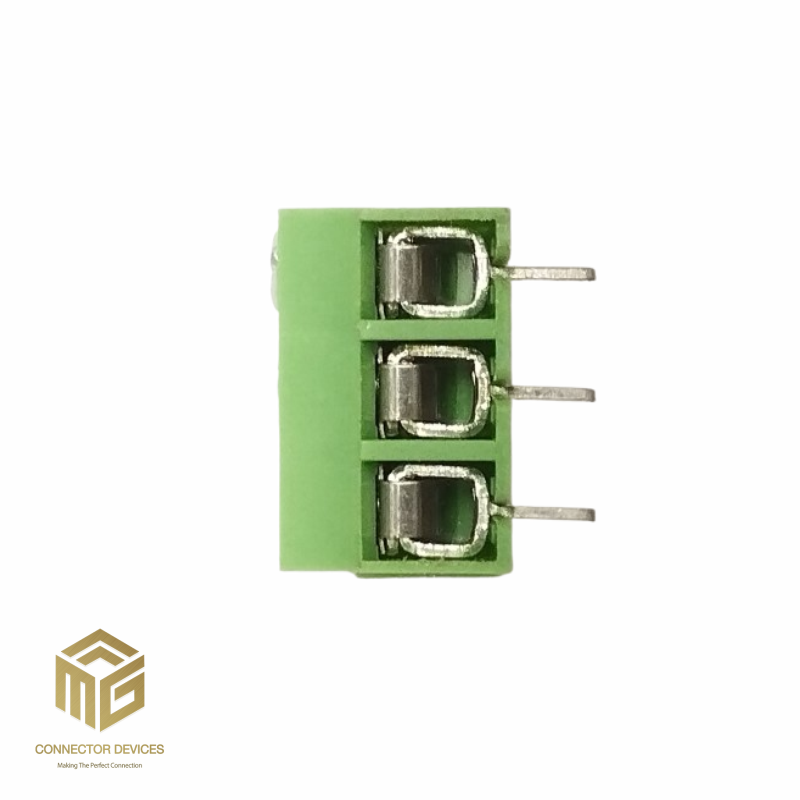

XY126 Screw Connector

00240027 INR/Piece

Get a Price/Quote

Product Details:

Resistance 20m
Output Safe and Reliable Connection
Theory Electromechanical Connection
Type Screw Connector
Accuracy High Precision
Operating Voltage 250V AC/DC
Output Voltage 250V max
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

XY126 Screw Connector Price And Quantity

Minimum Order Quantity 100 Piece
Price 00240027 INR/Piece

XY126 Screw Connector Product Specifications

Accuracy High Precision
Output Voltage 250V max
Output Safe and Reliable Connection
Operating Temperature -40C to 105C
Storage Temperature -40C to 105C
Operating Voltage 250V AC/DC
Theory Electromechanical Connection
Type Screw Connector
Resistance 20m
Compensated Temperature -10C to 70C

Wire Range 0.2-2.5 mm2
Housing Material Polyamide (PA66), flame retardant
Contact Material Brass, Tin-plated
Mounting Type PCB/Screw Mounting
Flammability Rating UL94 V-0
Torque 0.5 Nm max
Insulation Resistance >1000M at 500V DC
Number of Positions 2 to 24 Pole options
Colour Green
Current Rating 16A max
Mechanical Life >20 cycles

Product Description

BRAND NAME : CONNECTOR DEVICES

ModelXINYA 126V-5.0

PicthA=5.0mm(.197")

Poles QTY2P,3P-24P

ColorGREEN / BLACK

Wire range26-14AWG 2.5mm

Voltage&Current300V 10A

Torque0.4N.m

Withstand VoltageAC2000V 60s

Wire Stripping Lenght6-70.5mm

Soldering

Wave Soldering260/5s

Hand Solderingsoldering iron350/10s

Versatile and High-Performance Connector

Designed for adaptability, the XY126 Screw Connector accommodates a broad wire range, offers multiple pole options, and ensures high electrical reliability. Its low contact resistance, robust brass construction, and flexible mounting fit seamlessly into modern circuitry, making it ideal for manufacturers, distributors, and industrial projects.

Superior Safety & Flame Resistance

Safety is paramount with the XY126, featuring a UL94 V-0 rated polyamide housing for flame retardancy. Its design ensures secure operation even in harsh conditions, operating efficiently from -40C to 105C. Exceptional insulation resistance and tamper-proof connections provide peace of mind for electrical installations.

Flexible Mounting & Easy Handling

The connector's PCB and screw mounting options boost installation flexibility while allowing swift replacement, minimizing downtime. With a mechanical life of over 20 cycles and maximum torque of 0.5 Nm, this product supports repeated use in production lines or field installations.

FAQ's of XY126 Screw Connector:

Q: How do I install the XY126 Screw Connector onto a PCB or panel?

A: Installation is straightforward: for PCB use, insert the connector's pins through the board and solder them securely in place. For screw mounting, align the connector with pre-drilled holes and secure using screws. Both methods provide robust, long-lasting integration.

Q: What benefits does the flame-retardant PA66 housing provide?

A: The PA66 polyamide housing meets UL94 V-0 flammability standards, significantly reducing fire risk and enhancing safety in environments prone to high temperatures or electrical surges.

Q: When should I use this screw connector in my application?

A: The XY126 is ideal for situations requiring reliable, high-current connections, such as control panels, power supplies, or industrial automation projects, especially where secure, multiple-pole connectivity is essential.

Q: Where can I purchase the XY126 Screw Connector in India?

A: The XY126 Screw Connector is available through multiple channels in India, including authorized distributors, exporters, importers, manufacturers, traders, and wholesalers specializing in electrical components.

Q: What is the process for selecting the correct number of poles for my requirements?

A: Determine the number of individual circuits you need to connect concurrently, then select a connector with the matching number of poles (from 2 up to 24). This ensures optimal efficiency and simplifies wiring layouts.

Q: How does the product guarantee a safe and reliable electrical connection?

A: High-precision brass contacts, robust insulation resistance, and a secure screw mechanism ensure low-resistance, stable connections. These features minimize electrical hazards and provide consistent performance even in demanding environments.
