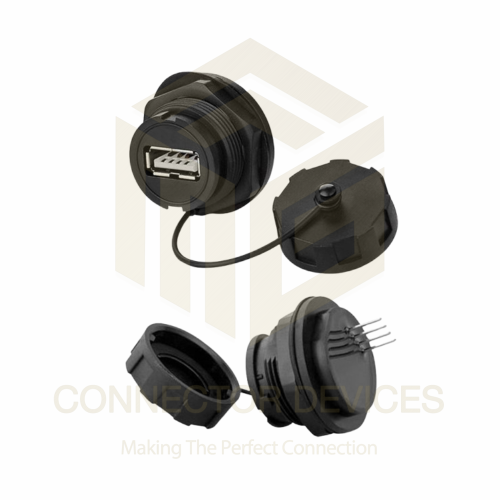

YU Series USB2.0 4Pin Female Socket IP67 Waterproof Data Connector

Name: YU Series USB2.0 4Pin Female Socket IP67 Waterproof Data Connector
Brand: CONNECTOR DEVICES
Price: 269.0 INR
Availability: InStock

269.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP67
Features Waterproof, dustproof, corrosion resistant, durable, easy panel mount
Usage Data transfer, device charging
Interface USB 2.0, 4-pin Female Socket
Input USB female socket
Power Source External USB supply
Components Panel mount connector body, sealing gasket, terminal contacts
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YU Series USB2.0 4Pin Female Socket IP67 Waterproof Data Connector Price And Quantity

Price 269.0 INR/Piece
Minimum Order Quantity 100 Piece

YU Series USB2.0 4Pin Female Socket IP67 Waterproof Data Connector Product Specifications

Function USB 2.0 data transmission and power connection
Weight Approx. 15g
Supply Voltage 5V DC
Usage Data transfer, device charging
Features Waterproof, dustproof, corrosion resistant, durable, easy panel mount
Application Industrial, outdoor equipment, marine, automotive
Rated Voltage 30V AC
Interface USB 2.0, 4-pin Female Socket
Size M16 Series
Frequency DC/USB data transmission
IP Rating IP67
Capacity Supports standard USB 2.0 data rates
Operating Temperature -20C to +80C
Components Panel mount connector body, sealing gasket, terminal contacts
Power Source External USB supply
Product Type USB 2.0 4Pin Female Socket
Thickness Standard panel thickness: 1-4mm
Power Supply USB powered
Color Black
Output USB device compatible
Charging Voltage 5V DC
Current Rating 1.5A Max
Dimension (L*W*H) Panel Mount: 29mm x 21mm x 17mm
Input USB female socket

Contact Material Copper alloy with gold plating
Connector Type Female Socket, M16 Threaded
Housing Material High performance PVC/PA66
Compliance RoHS Compliant
Insulation Resistance >1000M
Flammability Rating UL94 V-0
Mechanical Life 5000 mating cycles
Mounting Type Panel Mount
Cable Diameter Supported 6-8mm (with gland)
Sealing Gasket Material Silicone rubber
Contact Resistance 30m

YU Series USB2.0 4Pin Female Socket IP67 Waterproof Data Connector Trade Information

Delivery Time 7 Days

Product Description

Experience an unmatchable blend of functionality and value with the YU Series USB2.0 4Pin Female Socket IP67 Waterproof Data Connector. Now featuring a reduced price for broader affordability, this connector offers pivotal benefits for those needing industrial-grade durability and reliability. Its gold-plated copper alloy contacts guarantee stable, high-speed USB 2.0 data transmission, while the towering IP67 rating ensures robust waterproof, dustproof, and corrosion resistance. Benefit from a significant price cut without sacrificing quality-this is your affordable solution for secure device charging and data connection across marine, automotive, and outdoor applications.

Enhanced Versatility for Demanding Environments

The YU Series USB2.0 4Pin Female Socket IP67 Waterproof Data Connector is widely used by industrial, marine, automotive professionals, and field equipment manufacturers. Key features include unmatchable waterproof and dustproof protection, corrosion resistance, and a sturdy panel mount design. Additional highlights: gold-plated contacts for reliable transmission, UL94 V-0 flame retardant housing, and support for up to 5,000 mating cycles. It's an ideal connector for environments demanding both durability and performance.

Efficient Packaging and Certification Assurance

Each YU Series USB2.0 4Pin Female Socket IP67 Waterproof Data Connector is securely packaged to prevent damage during transit, ensuring safe dispatched delivery. Packaging is tailored for bulk or individual rate-based requirements. Our payment terms are flexible to meet trader or manufacturer needs. Every connector is RoHS Compliant, with flammability rated at UL94 V-0, ensuring safety and reliability. Trusted certifications and swift dispatching make it a preferred choice among distributors, exporters, and wholesalers in India.

FAQ's of YU Series USB2.0 4Pin Female Socket IP67 Waterproof Data Connector:

Q: How is the YU Series USB2.0 4Pin Female Socket installed?

A: The connector is designed for panel mounting with an M16 threaded body, making installation straightforward for industrial and outdoor equipment panels with a thickness of 1-4mm.

Q: What are the key features that set this connector apart from others?

A: This model stands out with its IP67 waterproof and dustproof rating, corrosion resistance, unmatchable gold-plated contacts, UL94 V-0 flame retardancy, and high mechanical life of up to 5,000 cycles.

Q: Where is the YU Series USB2.0 4Pin Female Socket commonly used?

A: It's commonly used in industrial control panels, marine devices, outdoor equipment, automotive electronic systems, and any environment needing reliable USB data and power connections.

Q: What is the process for dispatching and delivery?

A: Orders are efficiently packed and dispatched according to customer rates and packaging preferences, ensuring prompt and safe arrival.

Q: What are the benefits of the gold-plated copper alloy contacts?

A: Gold plating over copper alloy ensures superior conductivity, reduced contact resistance, and long-term reliability even in demanding environments.
