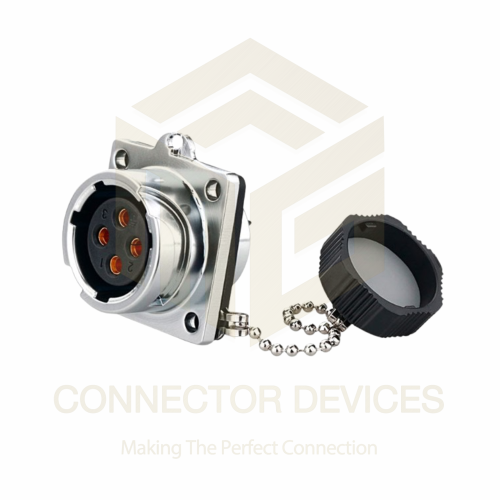

YZ20 500V 20A 4Pin Female Socket IP67 Metal Shell Waterproof Power Connector Solder Terminal

Name: YZ20 500V 20A 4Pin Female Socket IP67 Metal Shell Waterproof Power Connector Solder Terminal
Brand: CONNECTOR DEVICES
Price: 532.0 INR
Availability: InStock

532.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature -40C to +80C
Components Metal shell, solder terminal, four pin contacts, waterproof rubber seal
Interface 4-pin Solder Terminal Connection
Power Source Electric Mains
Usage Power supply for heavy-duty electrical devices
IP Rating IP67
Output 4 Pin Electrical Output
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YZ20 500V 20A 4Pin Female Socket IP67 Metal Shell Waterproof Power Connector Solder Terminal Price And Quantity

Price 532.0 INR/Piece
Minimum Order Quantity 100 Piece

Locking Mechanism Bayonet coupling
Shell Finish Nickel plated
Insulation Resistance >2000 M (500V DC)
Shell Material Zinc alloy metal
Mating Cycle Durability Over 500 cycles
Connection Type Solder terminal
Contact Material Copper alloy with silver plating
Cable Diameter Range 8-12mm
Contact Resistance 5m
Resistance to Vibration Yes
Mounting Type Panel mount
Protection Class Class I
Sealing Material Silicone rubber gasket
Flammability Rating UL94 V-0

YZ20 500V 20A 4Pin Female Socket IP67 Metal Shell Waterproof Power Connector Solder Terminal Product Specifications

Size 20mm (Mounting Diameter)
Usage Power supply for heavy-duty electrical devices
Components Metal shell, solder terminal, four pin contacts, waterproof rubber seal
Operating Temperature -40C to +80C
Capacity 20A current capacity
Power Source Electric Mains
Supply Voltage 500V
Interface 4-pin Solder Terminal Connection
Frequency 50/60 Hz
Input 4 Pin (Female) Socket
Current Rating 20A
Power Supply Electric
Features Waterproof, dustproof, corrosion resistant, robust metal housing, secure locking mechanism
Weight Approx. 160g
Application Industrial, Automation, Machinery, LED display, Outdoor equipment
Rated Voltage 500V AC/DC
Color Silver / Metallic
Product Type Power Connector Socket
IP Rating IP67
Function Waterproof power connection for industrial and outdoor equipment
Dimension (L*W*H) Approx. 70mm x 31mm x 31mm (Body Only)
Output 4 Pin Electrical Output

Locking Mechanism Bayonet coupling
Shell Finish Nickel plated
Insulation Resistance >2000 M (500V DC)
Shell Material Zinc alloy metal
Mating Cycle Durability Over 500 cycles
Connection Type Solder terminal
Contact Material Copper alloy with silver plating
Cable Diameter Range 8-12mm
Contact Resistance 5m
Resistance to Vibration Yes
Mounting Type Panel mount
Protection Class Class I
Sealing Material Silicone rubber gasket
Flammability Rating UL94 V-0

YZ20 500V 20A 4Pin Female Socket IP67 Metal Shell Waterproof Power Connector Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Contact dimension:Phi 2.7*4
Mating cycle:> 1700 Times
Insertion and extraction force:8N Max
Temperatur e and humidity:-4080C; 40C, 85%RH
Screw torque:42-53 (N.m)

Rugged, Waterproof Construction

Designed for industrial and outdoor environments, the YZ20 connector features a metal shell, silicone rubber gasket, and a secure bayonet-lock mechanism for IP67-grade protection. Its robust construction ensures resistance to moisture, dust, and mechanical vibration, supporting reliable operation in harsh settings.

Superior Power Capability

This power connector supports up to 500V AC/DC and can handle currents up to 20A, making it suitable for heavy-duty power supply needs. Its four-pin configuration and high insulation resistance enable safe and efficient energy transfer for equipment like LED displays and automation machinery.

Versatile and Easy to Install

With a panel mount design and a cable diameter range of 8-12mm, installation is straightforward across a variety of systems. The solder terminal interface ensures solid electrical contact, while the UL94 V-0 flammability rating underscores its safety profile and resilience.

FAQ's of YZ20 500V 20A 4Pin Female Socket IP67 Metal Shell Waterproof Power Connector Solder Terminal:

Q: How do I install the YZ20 500V 20A 4Pin Female Socket into my equipment?

A: Installation involves panel mounting the connector into a 20mm diameter hole, soldering your wires to the four terminal contacts, and securing the bayonet coupling. Ensure cables are 8-12mm in diameter for a tight, waterproof seal using the silicone rubber gasket.

Q: What environments and equipment can the YZ20 connector be used for?

A: This connector is designed for industrial, automation, machinery, LED displays, and outdoor equipment, providing reliable power connections in harsh conditions thanks to its IP67 protection and robust metal housing.

Q: When should I consider using a connector with an IP67 waterproof rating?

A: You should use an IP67-rated connector like the YZ20 when your application involves exposure to water, dust, or outdoor elements, as it offers complete protection against dust and temporary submersion in water.

Q: Where does the YZ20 socket provide the most benefit?

A: The YZ20 socket is most beneficial in demanding environments where moisture, dust, and vibration are concerns-such as factories, outdoor installations, automation systems, or any heavy-duty electrical setup requiring reliable, long-lasting connections.

Q: What is the process for making electrical connections with this socket?

A: Connections are made by soldering wires to the internal copper alloy terminal contacts. After soldering, secure the connector in the panel and use the bayonet locking system to mate it properly, ensuring the silicone seal is in place for full waterproof performance.

Q: How does the bayonet locking mechanism improve usage?

A: The bayonet coupling allows for easy, secure engagement and disengagement of the connector, facilitating quick installation and removal while maintaining a tight, reliable connection, even under vibration and movement.

Q: What are the main benefits of choosing the YZ20 metal shell power connector?

A: Benefits include high current and voltage compatibility (20A, 500V), excellent waterproof and dustproof performance, reliable electrical contact, high durability for over 500 mating cycles, and strong mechanical resistance, making it ideal for critical and outdoor applications.
