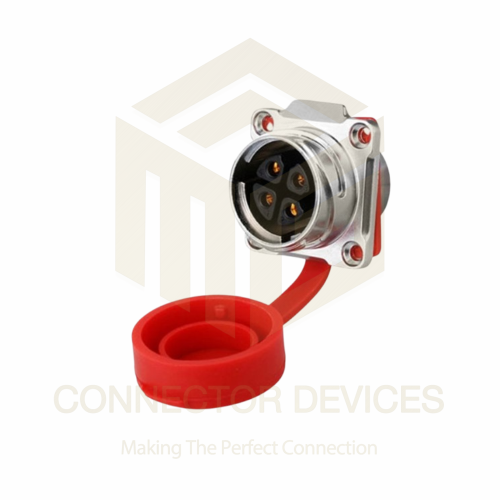

DH24 500V 25A 4Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal

Name: DH24 500V 25A 4Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 679.0 INR
Availability: InStock

679.0 INR/Piece

Get a Price/Quote

Product Details:

Features Waterproof, Dustproof, Corrosion Resistant, Robust Metal Shell
Interface Solder Terminal Connection
Operating Temperature -40C to +80C
Power Source Wired Electric
Input 4-Pin Female Socket
Components Metal Shell, Solder Terminals, Sealing Ring
Power Supply Electrical
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH24 500V 25A 4Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Price 679.0 INR/Piece
Minimum Order Quantity 100 Piece

DH24 500V 25A 4Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Capacity 25A Current Capacity
Operating Temperature -40C to +80C
Function Power Connection
Interface Solder Terminal Connection
Size DH24 Standard Size
Dimension (L*W*H) Approx. 70mm x 34mm x 34mm
Features Waterproof, Dustproof, Corrosion Resistant, Robust Metal Shell
Color Silver/Grey
Power Supply Electrical
Product Type Waterproof Power Connector
Weight Approx. 180g
Current Rating 25A
Power Source Wired Electric
Input 4-Pin Female Socket
Components Metal Shell, Solder Terminals, Sealing Ring
Application Outdoor Power Distribution, Control Panels, Machinery
Output 4-Pin Electrical Output
IP Rating IP67
Thickness Metal Shell Approx. 2.5mm
Supply Voltage 500V
Rated Voltage 500V AC/DC
Frequency 50/60 Hz
Usage Industrial Power Equipment Connection

Shock Resistance 100g, 6ms
Insulation Resistance >1000 M @ 500V DC
Mating Cycle Durability >500 Times
Vibration Resistance 10-200Hz, 15g
Cable Diameter 8-12mm Suitable
Connection Method Solder Terminal
Sealing Method Compression Gasket
Flame Retardant Grade UL94 V-0
Shell Material Zinc Alloy with Nickel Plating
Mounting Type Panel Mount
Number of Pins 4 Pins
Contact Material Copper Alloy, Silver Plated
Contact Resistance 1 m

DH24 500V 25A 4Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Temperature and humidity:-4080C; 40C, 85%RH
Wire Gauge:2.54.0mm/14 -12AWG
Withstand voltage(AC.V)1min:2500V
Mating Cycle:1700 Times

Outstanding Waterproof and Corrosion Resistance

Certified at IP67, the DH24 4Pin Female Socket excels in harsh industrial and outdoor conditions. Its robust metal shell, made from zinc alloy with nickel plating, provides powerful protection against moisture, dust, and corrosion. This ensures reliable power connections in any environment, making it suitable for use in exposed locations, such as outdoor power distribution and heavy machinery installations.

Easy Installation and Secure Connection

Designed for panel mounting, the connector supports quick and secure solder terminal assembly. Its cable accommodation (8-12mm diameter) and compression gasket sealing method streamline the installation process. The 4-pin female socket delivers secure electrical output, supporting up to 500V and 25A for industrial equipment, control panels, and other power supply needs.

Reliable Performance and Safety Standards

The DH24 socket emphasizes safety and durability, with features such as UL94 V-0 flame retardant material, insulation resistance exceeding 1000 M at 500V DC, and contact resistance of just 1m. With over 500 mating cycles guaranteed, high vibration and shock resistance, and high electrical capacity, this connector is built for long-term reliability in demanding applications.

FAQ's of DH24 500V 25A 4Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal:

Q: How is the DH24 4Pin 500V 25A Female Socket installed for panel mount applications?

A: Installation involves preparing the panel cutout to DH24 standard dimensions and securing the socket using the provided mounting features. The solder terminals allow wires to be connected reliably, with the compression gasket ensuring waterproof sealing for cable diameters of 8-12mm.

Q: What environments can the DH24 connector be used in?

A: With its IP67 rating, flame retardant materials, and resistance to vibration and shock, this connector is suitable for both indoor and demanding outdoor environments, including heavy machinery, control panels, and power distribution systems.

Q: When should I choose the DH24 socket over other connectors?

A: The DH24 is optimal when your application requires a combination of high voltage (500V), high current (25A), robust waterproofing, vibration resistance, and long-term durability, particularly for outdoor or industrial settings.

Q: Where can this connector be sourced in India?

A: The DH24 4Pin Female Socket is available through multiple channels in India such as distributors, exporters, importers, manufacturers, traders, and wholesalers catering to industrial electrical products.

Q: What is the process for connecting wires to this socket?

A: Wires are soldered directly to the silver-plated copper alloy terminals within the connector. Proper soldering technique and insulation are essential to maximize conductivity, ensure a secure connection, and maintain the connector's sealing properties.

Q: How does the DH24 connector benefit industrial power equipment?

A: Its robust build, superior sealing, and high-quality conductive materials ensure dependable, long-lasting power connections. This reduces maintenance demand and downtime, enhancing operational continuity and equipment safety.

Q: What makes the DH24 socket flame retardant, and what is its safety rating?

A: The DH24 socket's housing material meets the UL94 V-0 flame retardant standard, indicating that it is highly resistant to burning and meets stringent safety requirements for industrial applications.
