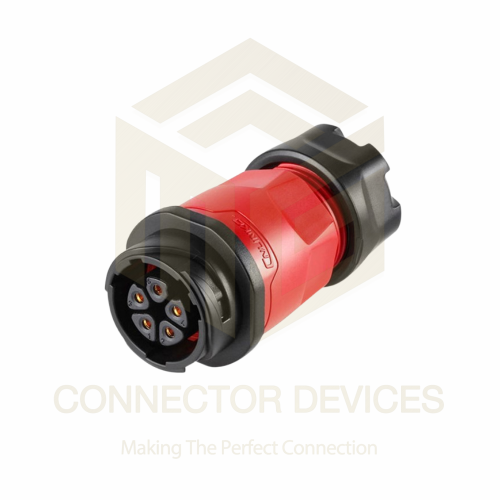

YM20 10A 5Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal

Name: YM20 10A 5Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal
Brand: CONNECTOR DEVICES
Price: 484.0 INR
Availability: InStock

484.0 INR/Piece

Get a Price/Quote

Product Details:

Power Supply Wired
Operating Temperature -40C to +105C
Input Solder Terminal
Power Source Power Cable
Output Solder Terminal
Interface 5 pin circular
Usage Outdoor, Industrial, Lighting, Electrical Equipment
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 10A 5Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 484.0 INR/Piece

YM20 10A 5Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal Product Specifications

Application Power Distribution, LED Lighting Connection, Machinery
Supply Voltage Up to 500V
Usage Outdoor, Industrial, Lighting, Electrical Equipment
Interface 5 pin circular
Features IP68 Waterproof, Corrosion Resistant, Secure Locking, Easy Installation
Size 20mm Shell Diameter
Frequency 50/60Hz
Weight Approx. 50g
Components Female Plug Housing, Solder Terminals, Gasket, Locking Nut
IP Rating IP68
Power Supply Wired
Product Type Inline Circular Power Connector
Operating Temperature -40C to +105C
Function Power transmission and waterproof connection
Color Black
Current Rating 10A
Capacity 10A per pin
Input Solder Terminal
Output Solder Terminal
Power Source Power Cable
Dimension (L*W*H) Approx. 80mm x 28mm x 28mm
Rated Voltage 500V AC
Thickness Standard Connector Housing

Contact Resistance 5m
Mounting Type Inline
Insulation Resistance 2000M at 500VDC
Mechanical Life 500 mating cycles
Material Nylon PA66, Brass Contacts (Nickel Plated)
Number of Pins 5
Sealing Gasket Material Silicone Rubber
Flame Retardant Grade UL94-V0
Cable Diameter Range 6-12mm
Locking Mechanism Threaded coupling with rubber seal

YM20 10A 5Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Insertion and extraction force:4.0N Max
Screw torque:42-53 (N.m)
Mating cycle:1700 Times
Temperature and humidity:-4080C; 40C, 85%RH
Contact dimension:Phi 2.7*2

Exceptional Waterproof Performance

Rated IP68, the YM20 female plug provides superior protection against dust and water ingress, making it perfectly suited for outdoor and industrial applications. Its silicone rubber gasket and tight threaded locking mechanism ensure a reliable, long-lasting seal in the harshest conditions.

Designed for Versatility and Safety

Compatible with cable diameters between 6mm and 12mm, this connector supports a wide range of power and lighting installations. The UL94-V0 flame-retardant nylon housing and nickel-plated brass contacts offer excellent electrical insulation, corrosion resistance, and robust mechanical life for high-safety environments.

FAQ's of YM20 10A 5Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal:

Q: How is the YM20 10A 5Pin Female Plug installed?

A: The connector is installed by soldering wires directly to its terminals, fitting cables within the 6-12mm range. After soldering, the connector is securely closed using the threaded locking mechanism and silicone gasket to ensure a watertight and dustproof seal.

Q: What are the main applications for this connector?

A: This plug is ideal for power transmission in outdoor lighting, industrial equipment, machinery, electrical power distribution, and LED connections, especially where waterproof and corrosion-resistant solutions are required.

Q: When should I consider using an IP68 waterproof connector?

A: You should use an IP68-rated connector like the YM20 5Pin Female Plug in environments exposed to moisture, dust, or challenging weather-such as outdoor installations, industrial sites, or areas demanding high-level ingress protection.

Q: Where can this connector be used most effectively?

A: It is most effective in outdoor and industrial setups-such as street lighting, industrial automation, heavy equipment power lines, and wet or dusty locations-thanks to its rugged waterproof construction and corrosion-resistant materials.

Q: What are the benefits of the threaded coupling and silicone seal?

A: The threaded coupling and silicone rubber gasket provide a secure, vibration-resistant, and watertight connection, which helps prevent accidental disconnection and protects sensitive electrical contacts from water and dust ingress.

Q: How does the connector maintain safety and reliability?

A: With flame-retardant nylon housing (UL94-V0), high insulation resistance (2000M at 500VDC), and nickel-plated brass contacts, the YM20 connector resists fire, corrosion, and electrical leakage, ensuring reliable power delivery over its mechanical lifespan of up to 500 cycles.
