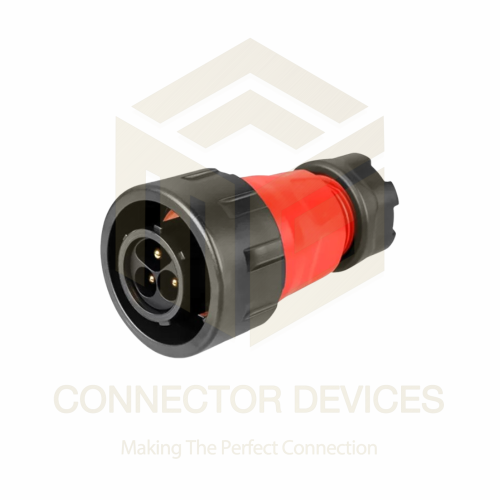

YM24 500V 25A 3Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal

599.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP68
Features Waterproof, Dustproof, Anti-corrosion, Flame Retardant
Output Cable Output
Usage Industrial Power Transmission
Power Supply AC/DC
Input Cable Input
Power Source Wired Power Connection
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM24 500V 25A 3Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 599.0 INR/Piece

Mounting Type Inline / Cable-to-cable
Strain Relief Included
Cable Diameter Range 9-14mm
Contact Material Copper Alloy with Gold Plating
Locking System Threaded Coupling
Insulation Resistance >2000M @ 500VDC
Wire Gauge 8-12 AWG
Contact Resistance 2m
Protective Cap Included
Shell Material Plastic (Nylon/PA66)
Flame Retardant Rating UL94-V0
Mechanical Life >2000 mating cycles

YM24 500V 25A 3Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Frequency 50/60Hz
Power Supply AC/DC
Application Outdoor and Indoor Power Connection
Power Source Wired Power Connection
Input Cable Input
Components Connector body, Solder terminals, Lock nut
Weight Approx. 180g
Operating Temperature -40C to +105C
Interface 3Pin Solder Terminal
Thickness Shell thickness approx. 3mm
Rated Voltage 500V
Function Power Connector
Supply Voltage 500V
IP Rating IP68
Features Waterproof, Dustproof, Anti-corrosion, Flame Retardant
Output Cable Output
Usage Industrial Power Transmission
Size YM24 Standard Size
Product Type Male Plug Connector
Current Rating 25A
Color Black
Dimension (L*W*H) Approx. 90mm (L) x 38mm (D)
Capacity 25A

Mounting Type Inline / Cable-to-cable
Strain Relief Included
Cable Diameter Range 9-14mm
Contact Material Copper Alloy with Gold Plating
Locking System Threaded Coupling
Insulation Resistance >2000M @ 500VDC
Wire Gauge 8-12 AWG
Contact Resistance 2m
Protective Cap Included
Shell Material Plastic (Nylon/PA66)
Flame Retardant Rating UL94-V0
Mechanical Life >2000 mating cycles

YM24 500V 25A 3Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting mode:latching lock
Contact diameter:phi 3.0x3
Operating voltage(AC.V.rms):500V
Withstand voltage(AC.V)1min:2500V
Contact resistance:< 2.5mohm
Temperature and humidity:-4080C, 40C, 85%RH
Mating cycle:1700 times

Superior Waterproof and Flame Retardant Performance

With an IP68 protection rating, the YM24 3Pin Male Plug ensures dustproof and waterproof operation, even in harsh environments. The UL94-V0 flame retardant rating, combined with a high-quality nylon shell, provides excellent resistance to fire, making this connector suitable for both outdoor and indoor power connections where safety is critical.

Reliable Power Transmission and Longevity

Designed for industrial power supply applications, this connector handles up to 500V and 25A, supporting AC/DC power. It features gold-plated copper alloy contacts for superior conductivity, over 2000 mating cycles, and a sturdy 3mm thick shell. Its strong mechanical and electrical performance ensures reliability for continuous usage.

Easy Installation with Enhanced Cable Security

The YM24 male plug supports inline cable-to-cable mounting and allows for cable diameters from 9 to 14mm, covering wire gauges of 8-12 AWG. Its threaded coupling system and included strain relief provide secure connection and prevent cable dislodgment, making the installation process straightforward and maintenance-friendly.

FAQ's of YM24 500V 25A 3Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How do I install the YM24 3Pin Male Plug for my power transmission needs?

A: Begin by preparing cables within the supported diameter range (9-14mm) and stripping the insulation for your 8-12 AWG wires. Solder the wires to the 3-pin terminals, then assemble the connector's body and use the threaded coupling to secure it. Ensure strain relief is in place and attach the protective cap when not in use for optimal performance.

Q: What environments and applications is this connector suitable for?

A: The IP68 waterproof and dustproof rating, along with its flame retardant shell (UL94-V0), make the YM24 plug ideal for demanding outdoor and indoor industrial environments, such as manufacturing plants, renewable energy systems, transportation, and construction sites requiring secure high-voltage connections.

Q: When should I use a connector with gold-plated contacts and nylon shell?

A: Use this connector when you require enhanced durability, corrosion resistance, and reliable electrical performance. The gold plating on copper contacts ensures stable and low-resistance connections over time, while the nylon shell offers strength, impact resistance, and superior insulation in harsh or fluctuating temperatures.

Q: Where can this plug be mounted, and what power sources does it support?

A: The YM24 plug is designed for inline (cable-to-cable) mounting and can be used in power distribution boxes, junction points, or extension assemblies. It supports both AC and DC wired power connections with a supply voltage of up to 500V and a current capacity of 25A.

Q: What is the process for ensuring a waterproof connection with this plug?

A: To achieve a waterproof connection, ensure cables are within the supported diameter, solder wires correctly to terminals, and tightly couple the connector using the threaded system. Always install the included strain relief and protective cap to maintain IP68 sealing and prevent water ingress.

Q: How does the threaded coupling locking system benefit my installation?

A: The threaded coupling system provides a secure and vibration-resistant connection, minimizing the risk of accidental disconnection or loosening in high-vibration industrial settings. This feature adds to the robustness and service life of the installation.
