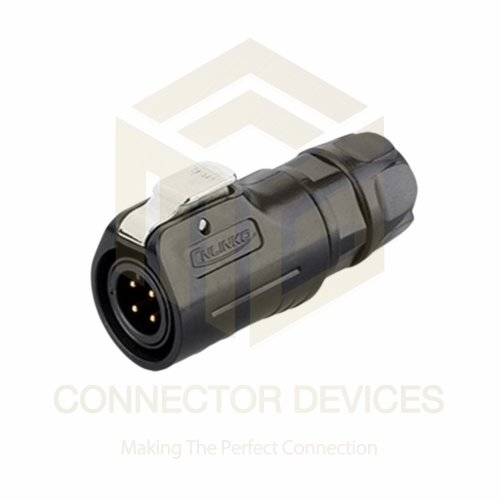

LP12 125V 5A 4Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal

Name: LP12 125V 5A 4Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 271.0 INR
Availability: InStock

271.0 INR/Piece

Get a Price/Quote

Product Details:

Features IP67 Waterproof, Dustproof, Corrosion Resistant, Easy Locking Mechanism
Usage Waterproof power connection
Interface Circular 4 Pin Interface
Output Solder Terminal
Power Source External Power Supply
Power Supply Electrical
IP Rating IP67
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP12 125V 5A 4Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 271.0 INR/Piece

LP12 125V 5A 4Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Interface Circular 4 Pin Interface
Rated Voltage 125V AC
Usage Waterproof power connection
Output Solder Terminal
Thickness Standard
Power Source External Power Supply
Weight Approx. 25g
Capacity 5A
Features IP67 Waterproof, Dustproof, Corrosion Resistant, Easy Locking Mechanism
Color Black
Frequency 50/60 Hz
Current Rating 5A
Size LP12 Series
Components Plastic Shell, 4 Metal Solder Pins
Dimension (L*W*H) Approx. 61mm x 21mm (Length x Diameter)
Operating Temperature -20C to +85C
Function Power Connector
Power Supply Electrical
Supply Voltage 125V
IP Rating IP67
Product Type 4 Pin Male Plug
Application Outdoor Electrical Equipment, Industrial Automation, LED Lighting, Power Distribution
Input Solder Terminal

Connection Method Solder Terminals
Shell Material High-strength Plastic
Sealing Type Screw Lock, Rubber O-Ring
Insulation Resistance 500M at 500V DC
Contact Material Copper Alloy with Nickel-Plated
Pin Configuration 4 Pins (Male)
Mounting Method Cable Mount
Flame Retardant Grade UL94-V0
Mating Cycle More than 500 cycles
Contact Resistance 5m
Cable Diameter Compatibility 4mm-6.5mm

LP12 125V 5A 4Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting mode:Easy locking type
Insertion and extraction force:1.2N Max
Wire specification:UL2464 24AWG*2C
Contact dimension:Phi 1.0x4
Temperature and humidity:-4080C, 40C, 85%RH
Mating cycle:1700 times
Diameter range:36mm
Screw torque:42-53 (N.m)
Operating Voltage:125V

Superior Waterproof and Dustproof Design

With an IP67 rating, this 4-pin male plug provides outstanding protection against water and dust ingress, ensuring reliable performance in harsh environments. The high-strength plastic shell and secure screw-locking mechanism make it ideal for both indoor and outdoor installations where environmental resistance is essential.

Efficient and Safe Power Connection

Equipped with nickel-plated copper alloy contacts, the connector delivers stable electrical performance with minimal contact resistance (5m). Its UL94-V0 flame-retardant housing enhances safety, while solder terminals enable secure, long-lasting cable connections for higher mechanical reliability.

Versatile Industrial Applications

Designed for rugged applications, the LP12 series male plug is perfectly suited for power supply in industrial automation systems, LED lighting projects, and power distribution units. Compatible with standard cable sizes and supporting more than 500 mating cycles, it ensures dependable connectivity for various professional uses.

FAQ's of LP12 125V 5A 4Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How is the LP12 4Pin Male Plug installed onto cables?

A: The LP12 connector uses solder terminals for cable installation. Simply prepare the cable ends, solder each conductor to the corresponding pin, and secure the cable with the built-in screw-lock mechanism to ensure a waterproof and dustproof seal.

Q: What are the usage benefits of choosing this IP67-rated connector?

A: This power connector provides robust resistance to water and dust, making it highly reliable for outdoor and harsh industrial environments. Its flame-retardant shell and firm locking design enhance overall safety and minimize maintenance needs.

Q: Where can I utilize the LP12 125V 5A male plug effectively?

A: This connector is best used in applications requiring waterproof and durable connections, such as outdoor electrical equipment, industrial automation, LED lighting installations, and power distribution units.

Q: What is the process for achieving a secure and waterproof connection?

A: To ensure optimal waterproofing, properly solder the wires to the pins, tighten the screw-lock shell, and make sure the rubber O-ring is correctly seated. This combination guarantees an IP67-rated seal even in challenging conditions.

Q: What type of cables are compatible with this plug?

A: The LP12 male plug is suitable for cable diameters ranging from 4mm to 6.5mm, making it compatible with a wide variety of standard power and signal cables used in industrial and outdoor settings.

Q: When should the LP12 4-pin connector be selected over conventional connectors?

A: Choose the LP12 4-pin plug when your application requires a highly reliable, waterproof, dustproof, and flame-retardant connection that can withstand harsh environments and frequent mating cycles.
