DIP SWITCH SERIES

6.0 INR/Piece

Get a Price/Quote

Product Details:

Protection Level IP40
Circuit Type SPST (Single Pole Single Throw)
Rated Voltage 240 Volt (V)
Automation Grade Manual
Number of Module 1 to 12 (as per requirement)
Finish Type Gold Plated Contacts
Temperature Range -20C to +70C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DIP SWITCH SERIES Price And Quantity

Price 6.0 INR/Piece
Minimum Order Quantity 50 Piece

Contact Material Gold-plated Phosphor Bronze
Housing Material UL94V-0 PBT thermoplastic
Insulation Material PBT
Terminal Type PC Pin/SMT
Switch Function ON-OFF
Dielectric Strength 500V AC for 60 seconds
Solderability 260C for 3 sec (Max)
Actuation Force 500gf Max.
Operating Humidity 45%-85% RH (Non-condensing)
Application Communication equipment, instrumentation, consumer electronics
Package Type Tube or Tape & Reel for SMT

DIP SWITCH SERIES Product Specifications

No Of Poles 1 to 12 poles optional
Product Type DIP SWITCH SERIES
Operating Temperature -20C to +70C
Protection Level IP40
Weight Depends on pole count, approx. 0.5g per switch
Automation Grade Manual
Mounting Type Through Hole or SMT
Current Rating 25mA @ 24V DC
Finish Type Gold Plated Contacts
Circuit Type SPST (Single Pole Single Throw)
Contact Resistance 50m Max.
Number of Module 1 to 12 (as per requirement)
Response Time Instantaneous with activation
Temperature Range -20C to +70C
Material Plastic
Stoke 2.0 0.2mm
Insulation Resistance 100M Min. at 500V DC
Color Red
Max. Current 25mA
Size Standard: Refer to model (e.g., 1.27mm, 2.54mm pitch)
Max. Voltage 24 AC DC Volt (V)
Rated Voltage 240 Volt (V)
Mechanical Life 2,000 Steps Min.

Contact Material Gold-plated Phosphor Bronze
Housing Material UL94V-0 PBT thermoplastic
Insulation Material PBT
Terminal Type PC Pin/SMT
Switch Function ON-OFF
Dielectric Strength 500V AC for 60 seconds
Solderability 260C for 3 sec (Max)
Actuation Force 500gf Max.
Operating Humidity 45%-85% RH (Non-condensing)
Application Communication equipment, instrumentation, consumer electronics
Package Type Tube or Tape & Reel for SMT

DIP SWITCH SERIES Trade Information

Supply Ability 100000 Piece Per Day
Delivery Time 7 Days

Product Description

Experience the prodigious reliability of the DIP SWITCH SERIES-your pivotal solution for robust electronic circuit configuration. Featuring a soaring actuation force of 500gf (max.) and a dielectric strength of 500V AC, these switches promise continuity and unmatched safety. Crafted with gold-plated phosphor bronze and UL94V-0 PBT housing, they ensure superior insulation and durability. Choose from through-hole or SMT mounting, with multiple pole options to match your needs. This cost-effective series offers the best price for distributors, exporters, importers, and wholesalers in India. Order today for timely delivery!

Versatile Applications and User Segments for DIP SWITCH SERIES

DIP SWITCH SERIES is the preferred choice across various sectors including communication equipment, advanced instrumentation, and consumer electronics. Instrumentation engineers, electronics manufacturers, and system integrators rely on its pivotal ON-OFF switching capability for circuit selection, device programming, and configuration. These switches are suitable for both prototyping and mass production, offering flexible applications from automated test set-ups to everyday consumer devices. Their soaring performance in reliability and stability makes them an essential component in modern electronic systems.

Domestic Market, Rapid Delivery, and Sample Policy for DIP SWITCH SERIES

Supplying across the main domestic market in India, the DIP SWITCH SERIES is committed to swift handover with quick dispatch-typically within a few working days upon order confirmation. Bulk and retail buyers benefit from favorable sample policies, enabling hands-on evaluation before finalizing larger orders. Whether you distribute, export, import, or trade these switches, you can expect seamless delivery processes and responsive support to meet your unique business requirements.

FAQ's of DIP SWITCH SERIES:

Q: How do I mount DIP SWITCH SERIES switches onto PCBs?

A: You can mount DIP SWITCH SERIES switches using either through-hole or surface-mount technology (SMT), making them compatible with standard PCB assembly processes.

Q: What are the key benefits of using gold-plated contacts in DIP SWITCH SERIES?

A: Gold-plated contacts in these switches provide superior conductivity, reduce contact resistance, and enhance long-term reliability, making them ideal for critical electronic applications.

Q: When can I expect delivery after placing my order for DIP SWITCH SERIES in India?

A: Quick dispatch is ensured; orders are typically processed and handed over within a few working days, depending on stock availability and your location.

Q: Where are DIP SWITCH SERIES commonly used?

A: These switches are widely used in communication equipment, instrumentation, and consumer electronics for ON-OFF control and configuration.

Q: What is the process of acquiring samples for evaluation?

A: Simply contact the supplier or distributor to request samples-often provided according to the sample policy for your appraisal before committing to a bulk order.

Q: How cost-effective is the DIP SWITCH SERIES for bulk purchasing?

A: This series offers the best prices, especially for distributors and wholesalers, ensuring high value and affordability for large-scale projects.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Dip Switch' category

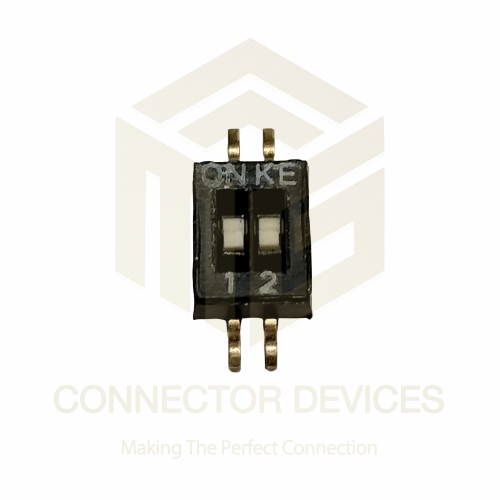

1.27mm DIP switch SMD Straight Price : 125 INR/Piece Minimum Order Quantity : 100 Material : Contact: Gold plated alloy, Case: UL94V0 Thermoplastic Max. Current : 25mA Color : Red actuator / Black case Size : Standard 1.27mm pitch, varies per pole number Rated Voltage : 24V DC Number of Module : Single Finish Type : Tin plated leads Circuit Type : SPST Contact Resistance : 100 m max. Temperature Range : 20C to +85C Response Time : Instantaneous mechanical contact Stoke : 2.0mm Insulation Resistance : 100 M min. at 500VDC Max. Voltage : 24V DC Mechanical Life : 5000 cycles min. Product Type : 1.27mm DIP Switch SMD Straight No Of Poles : 1 to 12 Operating Temperature : 20C to +85C Protection Level : IP40 Weight : Approx. 0.4g per pole Current Rating : 25mA Mounting Type : SMD (Surface Mount Device) Automation Grade : Manual
