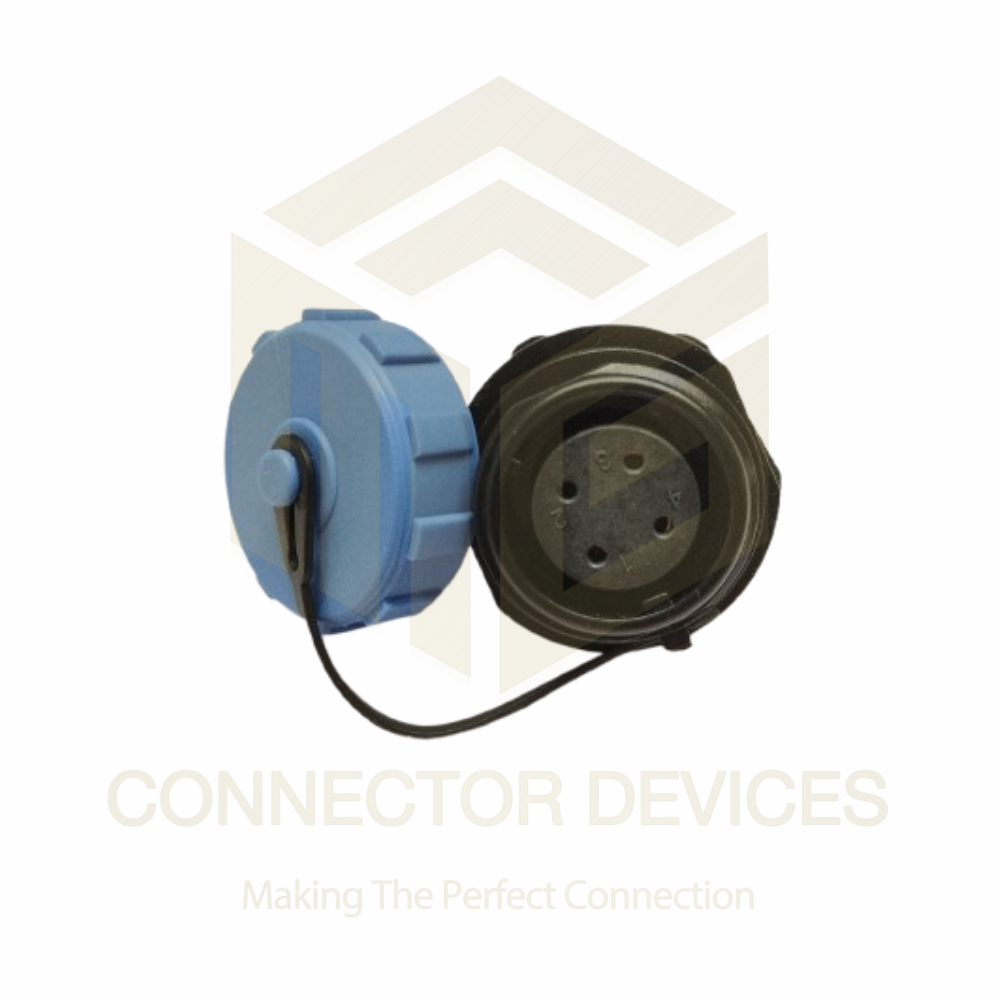

Ip68 Waterproof Connector SP17 Female Panel

Get a Price/Quote

Product Details:

Shape Round
Surface Finish Matte
IP Rating IP68
Efficiency High (Low Contact Resistance)
Overheating Protection YES
Connector Type Female Socket
Humidity % 98% RH
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Ip68 Waterproof Connector SP17 Female Panel Price And Quantity

Minimum Order Quantity 100 Piece

Ip68 Waterproof Connector SP17 Female Panel Product Specifications

Rated Voltage 250V AC / 200V DC Max
Efficiency High (Low Contact Resistance)
Material Nylon PA66 (Body), Copper Alloy (Contacts)
IP Rating IP68
Shape Round
Surface Finish Matte
Color Black with Blue Cap
No Of Poles 2/3/4/5/7/9 Poles (customizable)
Dimension (L*W*H) Panel Cut-out: 21 mm diameter; Thread: M17X1.0
Overheating Protection YES
Phase Single & Three Phase options
Humidity % 98% RH
Product Type SP17 Female Panel Mount Waterproof Connector
Operating Temperature -25C to +85C
Application Outdoor electrical connections, industrial equipment, LED lighting, automation systems
Connector Type Female Socket
Protection Level IP68
Input Voltage 250V Max
Connection Type Soldering
Feature Waterproof, Dustproof, Corrosion Resistant
Mounting Type Panel Mount
Output Type Panel Mount Socket
Frequency (MHz) 50-60 Hz
Size Standard SP17
Insulation Material Nylon PA66
Weight Approx. 30 g

Termination Type Solder Cup
Standards Compliance RoHS, CE certified
Insulation Resistance >=2000 M at 500V DC
Cable Diameter Supported 6-10 mm
Number of Contacts 2/3/4/5/7/9 (selection depends on model)
Flammability Rating UL94-V0
Mating Cycle Durability >=500 cycles
Current Rating 10A Max
Contact Resistance 5 m
Sealing Gasket Material Silicone Rubber
Withstand Voltage 1500V AC/1 minute

Product Description

Utilise this offer to experience transcendent connectivity with our SP17 Female Panel IP68 Waterproof Connector. Engineered for peerless performance, this connector ensures flawless electrical transmission, even in the harshest environments. Perfect for industrial equipment and LED lighting, its robust nylon PA66 body, copper alloy contacts, and superior silicone gasket deliver unmatched dust, corrosion, and water resistance. Grab the best price and secure durability, efficiency, and safety-all in a single, perfect solution, compliant with RoHS and CE standards. Choose between 2 to 9 poles for versatile applications, all protected up to 250V and 10A. Exchange market value for reliability and confidence-your premium connection starts here!

Key Features and Application Sites

The IP68 Waterproof Connector SP17 Female Panel stands out with its perfect blend of waterproof, dustproof, and corrosion-resistant features. Designed for a wide range of application places-from outdoor electrical connections and automation systems to LED lighting in both single and three-phase operations-it guarantees secure connections. Its transcendent performance suits industrial sites demanding peerless reliability, such as factories, infrastructure projects, and outdoor installations that require steadfast protection against water and dust ingress.

Sample Policy, Shipping, and Domestic Market Reach

Avail your sample of the IP68 Waterproof Connector SP17 Female Panel at a sale price reflecting true market value. We offer straightforward exchange policies to ensure complete satisfaction. Shipments originate from our FOB port in India, supporting distributors, exporters, and traders. Our products enjoy high demand across the main domestic market, powering industries nationwide. Purchase with confidence and discover why we are the trusted supplier for panel mount waterproof connectors offering measurable performance and enduring reliability.

FAQ's of Ip68 Waterproof Connector SP17 Female Panel:

Q: How does the IP68 Waterproof Connector SP17 ensure protection in outdoor environments?

A: The SP17 connector features a silicone rubber gasket and robust nylon PA66 body, achieving IP68 rating for exceptional waterproof, dustproof, and corrosion-resistant performance, ensuring safe operation in demanding outdoor conditions.

Q: What application sites are best suited for the SP17 Female Panel connector?

A: It is ideal for outdoor electrical connections, industrial automation systems, LED lighting, and any scenario needing reliable, protected electrical interfaces exposed to dust, water, or harsh environments.

Q: When can I expect delivery after placing an order, and is a sample available before bulk purchase?

A: Sample units are available for evaluation at a special sale price. Delivery timelines vary depending on the shipping destination within the domestic or export market, typically dispatched soon after order confirmation from our India FOB port.

Q: What is the process to select the appropriate number of contacts (poles) for my application?

A: You can select from 2, 3, 4, 5, 7, or 9-pole models based on your connection requirements. For assistance, our technical team can help you match the connector configuration to your specific electrical setup.

Q: Where is the SP17 Female Panel connector commonly distributed?

A: We distribute the SP17 connector through exporters, importers, distributors, manufacturers, traders, and wholesalers across India's main domestic markets, serving a diverse range of industrial sectors.

Q: How does the connector's overheating protection benefit users?

A: Integrated overheating protection safeguards electrical connections from potential damage, enhancing operational safety and extending the longevity of the connected devices.
