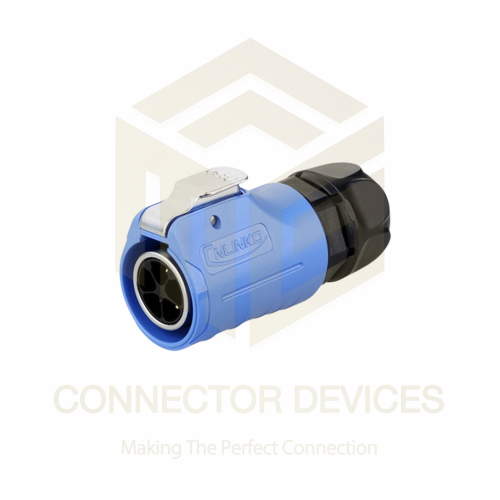

LP20 10A 5Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

Name: LP20 10A 5Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 508.0 INR
Availability: InStock

508.0 INR/Piece

Get a Price/Quote

Product Details:

Input 5-pin male contacts for power/signal transmission
Power Source External cabled power
Components Plastic & metal shell, solder type pins, sealing ring
Output Corresponding 5-pin female connector (not included)
Operating Temperature -25C to +85C
Power Supply Through cable connection, solder terminal type
Features Waterproof, dustproof, durable plastic and metal construction, secure screw lock, easy panel integration
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP20 10A 5Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 508.0 INR/Piece

Locking Mechanism Threaded coupling ring
Flame Retardant Grade UL94 V-0
Reconnection Times >500 mating cycles
Cable Diameter Supported 6-12mm
Contact Material Brass with silver plating
Coupling Method Screw-on
Sealing Silicone rubber gasket
Insulation Resistance >2000 M at 500V DC
Connector Type Male plug, LP20 series
Contact Resistance <5 m
Shell Material High-strength ABS plastic and nickel-plated zinc alloy
Mounting Cable-mounted (inline)
Wire Range 18-12 AWG (0.75-2.5 mm2)
Number of Pins 5

LP20 10A 5Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Product Type Waterproof Power Connector Plug
IP Rating IP67
Color Black with silver metal ring
Interface 5-pin round male plug, solder terminal
Application LED Lighting, Industrial Equipment, Outdoor Devices, Automation
Current Rating 10A per pin
Frequency 50/60Hz
Thickness Standard shell ~2mm
Output Corresponding 5-pin female connector (not included)
Size 20mm shell diameter (LP20 series)
Operating Temperature -25C to +85C
Function Power Connector for electrical and electronic equipment
Weight Approx. 55g
Features Waterproof, dustproof, durable plastic and metal construction, secure screw lock, easy panel integration
Power Supply Through cable connection, solder terminal type
Usage Waterproof outdoor and industrial power connections
Power Source External cabled power
Components Plastic & metal shell, solder type pins, sealing ring
Supply Voltage 500V max
Capacity 10A max current per pin
Input 5-pin male contacts for power/signal transmission
Dimension (L*W*H) Approx. 80mm (L) x 28mm (W) x 28mm (H)
Rated Voltage 500V AC

Locking Mechanism Threaded coupling ring
Flame Retardant Grade UL94 V-0
Reconnection Times >500 mating cycles
Cable Diameter Supported 6-12mm
Contact Material Brass with silver plating
Coupling Method Screw-on
Sealing Silicone rubber gasket
Insulation Resistance >2000 M at 500V DC
Connector Type Male plug, LP20 series
Contact Resistance <5 m
Shell Material High-strength ABS plastic and nickel-plated zinc alloy
Mounting Cable-mounted (inline)
Wire Range 18-12 AWG (0.75-2.5 mm2)
Number of Pins 5

LP20 10A 5Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:400V
Contact resistance:< 1.0mOhm
Withstanding voltage:2500V
Mating cycle:> 1700 Times
Contact dimension:Phi 2.7x3
Temperature and humidity:-40+80C; 40C, 85%RH
Screw torque:42-53 (N.m)

Superior Waterproof and Dustproof Design

Certified with an IP67 rating, this connector offers excellent resistance to water and dust ingress. The inclusion of a silicone rubber gasket and secure threaded coupling ensures that connections remain protected and reliable in outdoor or harsh industrial environments, making it an ideal solution for challenging installations.

Durable Construction for Demanding Applications

Constructed from high-strength ABS plastic combined with nickel-plated zinc alloy, the LP20 10A 5Pin connector provides exceptional robustness and longevity. The flame-retardant housing (UL94 V-0) and precise solder terminals safeguard both user and equipment during high-power operation, supporting over 500 reliable reconnections.

Versatile Integration for Multiple Uses

Accommodating cable diameters from 6-12mm and supporting 18-12 AWG wires, this male plug is designed for flexible installation in various setups. Its 5-pin interface makes it compatible with LED lighting, automation controls, and a wide array of electrical devices requiring secure, high-capacity connections.

FAQ's of LP20 10A 5Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How do I properly connect the LP20 10A 5Pin male plug to my equipment?

A: To connect the LP20 10A 5Pin male plug, first prepare your cable (6-12mm diameter, 18-12 AWG). Solder your wires to each terminal pin, ensuring secure contacts. Next, insert the cable into the shell, tighten the threaded coupling ring, and ensure the silicone gasket is seated for a waterproof seal. Pair with a compatible 5-pin female connector for operation.

Q: What environments is the LP20 connector best suited for?

A: This connector is designed for outdoor and industrial use where water, dust, or rough handling are expected. Its IP67 rating and flame-retardant construction make it highly suitable for LED lighting installations, industrial automation, and equipment used in exposed or rugged conditions.

Q: When should I use a solder terminal power connector like this?

A: Choose a solder terminal connector like the LP20 when you require durable, secure, and reliable electrical connections. Soldered terminals offer superior conductivity and vibration resistance, making them ideal for demanding applications or environments where power and signal reliability are critical.

Q: Where can this connector be installed?

A: The LP20 10A 5Pin male plug can be installed in a variety of settings, including outdoor panels, junction boxes, machinery, and LED lighting systems. Its cable-mounted, inline design allows for flexible positioning along power or signal transmission lines.

Q: What is the process for ensuring a waterproof connection?

A: To guarantee a waterproof seal, ensure that the cable diameter matches the supported range (6-12mm). Install the sealing ring, properly tighten the threaded coupling, and verify that the silicone gasket sits evenly. This set-up prevents moisture and dust from reaching the contacts, protecting both equipment and the connection.

Q: How does the locking mechanism benefit my installation?

A: The threaded coupling ring provides a firm and stable connection that resists loosening from vibration or external forces. This secure lock, supplemented by the waterproof gasket, enhances safety and ensures consistent electrical performance, even in challenging environments.
