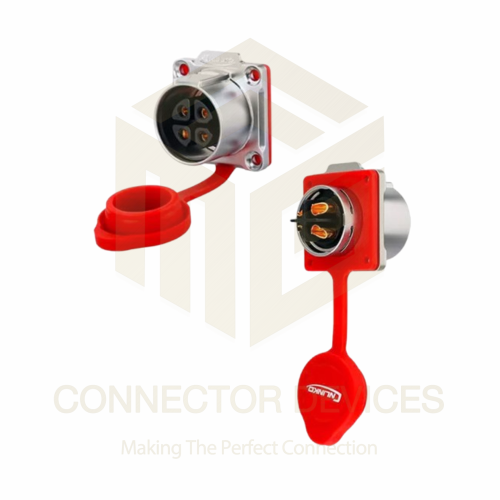

LP24 500V 25A 4Pin Female Socket IP67 Waterproof Power Connector

Name: LP24 500V 25A 4Pin Female Socket IP67 Waterproof Power Connector
Brand: CONNECTOR DEVICES
Price: 645.0 INR
Availability: InStock

645.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature -40C to +80C
Output 4-pin power output
Power Source Electric grid or generator
Features Waterproof, dustproof, corrosion resistant, secure locking mechanism
Interface 4-pin socket, screw terminals
Components Socket body, sealing gasket, screw terminals
IP Rating IP67
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP24 500V 25A 4Pin Female Socket IP67 Waterproof Power Connector Price And Quantity

Minimum Order Quantity 100 Piece
Price 645.0 INR/Piece

LP24 500V 25A 4Pin Female Socket IP67 Waterproof Power Connector Product Specifications

Usage Waterproof power connection
Frequency 50/60Hz compatible
Function Power connection for industrial and outdoor equipment
Thickness Approx. 36 mm (body diameter)
Input 4-pin power input
Power Supply AC or DC
Color Black with blue ring
Components Socket body, sealing gasket, screw terminals
IP Rating IP67
Features Waterproof, dustproof, corrosion resistant, secure locking mechanism
Size Standard panel mount
Interface 4-pin socket, screw terminals
Rated Voltage 500V
Capacity 25A current capacity
Weight Approx. 125g
Current Rating 25A
Dimension (L*W*H) Approx. 87mm x 36mm x 36mm
Power Source Electric grid or generator
Product Type Female socket power connector
Operating Temperature -40C to +80C
Output 4-pin power output
Application Industrial automation, Outdoor power distribution, Machinery, Equipment
Supply Voltage Up to 500V

Sealing Type Gasket and threaded coupling
Connector Gender Female
Number of Pins 4 pins
Contact Material Copper alloy with nickel plating
Mounting Type Panel mount
Standards Compliance IEC 60529, RoHS
Insulation Resistance 500M at 500VDC
Insulation Material Engineering plastic (PA66)
Contact Resistance 5m
Cable Size Supported 2.5mm2 to 4mm2
Withstand Voltage 1500V AC/minute

LP24 500V 25A 4Pin Female Socket IP67 Waterproof Power Connector Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Insertion and extraction force:6.0N Max
Withstanding voltage:2500V
Contact diameter:Phi 3.0x4
Temperature and humidity:-40+80C; 40C, 85%RH
Mating cycle:1700 times
Screw torque:42-53 (Nm)

Superior Waterproof Performance

Engineered to meet IP67 standards, the LP24 Female Socket provides exceptional protection against water and dust ingress. Its gasket and threaded coupling ensure a reliable seal, making it suitable for outdoor, industrial, and challenging environments where moisture or particulates are a concern.

Robust Construction and Reliable Connection

This connector utilizes a copper alloy with nickel plating for the contacts and high-quality PA66 engineering plastic for insulation, combining conductivity, corrosion resistance, and durability. The secure locking mechanism and screw terminals ensure a safe, stable connection fit for demanding applications.

Versatile Industrial Application

Designed for power connection in industrial automation, outdoor power distribution, and machinery, the LP24 socket supports both AC and DC supplies up to 500V and 25A. Its standard panel mount design and compatibility with 2.5mm2 to 4mm2 cables allow for seamless integration across various electrical systems.

FAQ's of LP24 500V 25A 4Pin Female Socket IP67 Waterproof Power Connector:

Q: How is the LP24 500V 4Pin Female Socket typically installed?

A: This socket is panel-mounted using screws and a sealing gasket for a secure, waterproof fit. Screw terminals allow easy connection of wires, supporting cable sizes from 2.5mm2 to 4mm2.

Q: What makes this connector suitable for outdoor or harsh environments?

A: With its IP67 rating, gasket and threaded coupling, as well as corrosion-resistant materials, the connector is waterproof, dustproof, and built to withstand demanding industrial or outdoor conditions.

Q: When should I use a 4-pin power connector like the LP24 model?

A: Use this 4-pin socket whenever you require reliable, high-current and secure power connections for machinery, equipment, or power distribution systems, especially in areas exposed to water or dust.

Q: Where can the LP24 4Pin Female Socket be effectively applied?

A: It is widely used in industrial automation, outdoor power distribution panels, heavy machinery, and any other installation requiring stable and protected high-voltage connections.

Q: What is the process for connecting cables to this socket?

A: Cables (2.5-4mm2) are connected directly to the screw terminals inside the socket. The wires are inserted, terminals are tightened, and the panel mount is secured with the sealing gasket for environmental protection.

Q: What are the main benefits of using the LP24 500V 25A 4Pin Female Socket?

A: Key benefits include its robust waterproof and dustproof design, high current and voltage capacity, secure locking mechanism, compliance with international standards, and adaptability for various power solutions.
