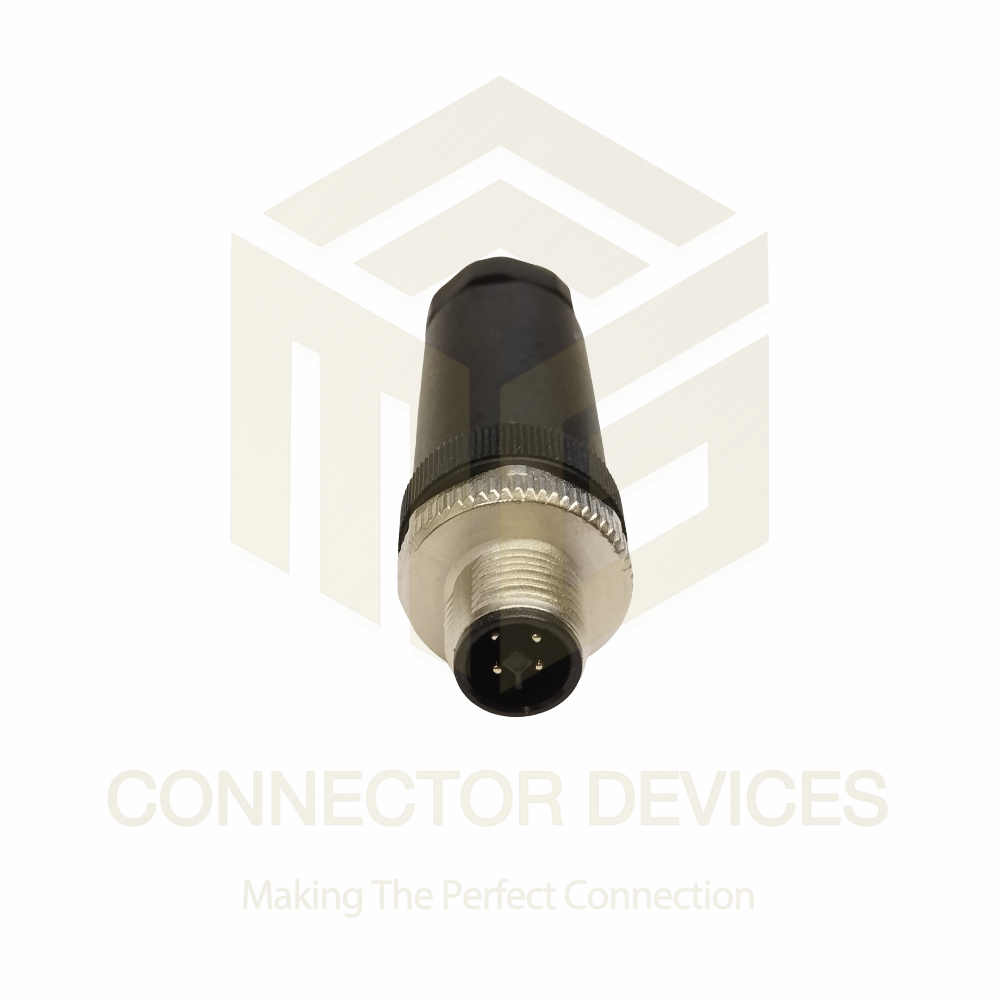

M12 4 Pin T coded Male & Female Cable type

Name: M12 4 Pin T coded Male & Female Cable type
Brand: CONNECTOR DEVICES
Price: 3500.0 INR
Availability: InStock

00240027 INR/Piece

Get a Price/Quote

Product Details:

Male End Type M12 T-coded, plug (male), 4 pin
Connector M12 T-coded (Male & Female)
Pairs Single-pair (4 conductors)
Capacity Up to 12A per contact
Application Power supply for fieldbus devices, industrial automation
Temperature -40C to +80C (Fixed); -25C to +80C (Flexible)
Material Brass / Nickel-plated (contacts), PUR/PVC (cable)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

M12 4 Pin T coded Male & Female Cable type Price And Quantity

Minimum Order Quantity 100 Piece
Price 00240027 INR/Piece

M12 4 Pin T coded Male & Female Cable type Product Specifications

Temperature -40C to +80C (Fixed); -25C to +80C (Flexible)
Cable Type Round, shielded, flexible
Material Brass / Nickel-plated (contacts), PUR/PVC (cable)
Outer Diameter Approx. 6.5 mm
Male End Type M12 T-coded, plug (male), 4 pin
Wire Gauge 22 AWG
Length Customizable (typically 1~10 meters)
Connector M12 T-coded (Male & Female)
Jacket Material PUR (Polyurethane) or PVC
Sheild Overall Shielded (Braided or Foil)
Flame Resistance Level UL94 V-0
Color Black (jacket); color coded conductors
Connector Type M12 4 Pin T-coded, shielded
Number of Conductor 4
Application Power supply for fieldbus devices, industrial automation
Voltage Rating DC 63 V
Female End Type M12 T-coded, socket (female), 4 pin
Insulation PVC or PE
Pairs Single-pair (4 conductors)
Cable Length Customizable or as per order
Capacity Up to 12A per contact

Max Current Per Contact 12A
Connector Termination Pre-assembled cable
Coupling Nut Material Nickel-plated brass
Standards IEC 61076-2-111
Bend Radius 10x cable diameter
Environment Suitable for harsh industrial environments
Contact Plating Gold-over-nickel
IP Rating IP67 (connected)
Contact Resistance 5 m
Vibration Resistance High, suitable for automation/machine vibration
Coding T-Coded for power transmission

Product Description

Brand Name - Connector Devices

Product Name - M12 Sensor Connector
Part Number - M12 4 Pin T coded Male & Female Cable type
No Of Pins - 4 Pin
Connector Type - Straight
Current Rating - 4Amp
Voltage 60v
Cable Diameter 4mm To 6mm And 6mm To 8mm

Optimized for Industrial Power Transmission

Built specifically for power supply in fieldbus devices and demanding automation systems, these M12 4 Pin T-coded cables provide stable, high-current connections-up to 12A per contact. The T-coding prevents accidental mismating, ensuring safe and secure connections every time. High-quality materials, including nickel-plated brass and gold-over-nickel contacts, contribute to performance and longevity even in harsh environments.

Durable Construction for Harsh Settings

Designed to withstand mechanical stress, vibration, and challenging conditions, these cables feature a robust IP67-rated sealed connection, shielded flexible design, and flame-resistant UL94 V-0 rated outer jackets. With a bend radius of 10x cable diameter and operating temperatures from -40C to +80C, both in static and dynamic applications, the cable ensures reliable service life. The PUR or PVC jacket options cater to varying industrial demands.

Installation Made Easy

The pre-assembled design simplifies installation, reducing on-site wiring errors and minimizing setup time. Customizable cable lengths, color-coded conductors, and a compact 6.5 mm diameter make routing effortless in space-constrained control cabinets and equipment. These cables can be ordered in multiple standard and made-to-order lengths to fit specific application needs.

FAQ's of M12 4 Pin T coded Male & Female Cable type:

Q: How is the M12 4 Pin T-coded cable used in industrial automation systems?

A: This cable is primarily used to transmit power from centralized control panels to fieldbus devices and equipment in industrial automation environments. Its robust construction and T-coded configuration ensure reliable, high-current connections suitable for power distribution in machinery subject to vibration and harsh conditions.

Q: What provides the cable's resistance to harsh environments and industrial hazards?

A: The cable features a combination of nickel-plated brass coupling nuts, gold-over-nickel contacts, and overall shielding (braided or foil) to guard against mechanical impact, corrosion, and electromagnetic interference. The PUR or PVC outer jacket (UL94 V-0 rated for flame resistance) and IP67 sealed connection protect against dust, water, chemicals, and temperature extremes.

Q: When should I use a T-coded M12 connector instead of other codings?

A: T-coded M12 connectors are designed for power transmission (not signal) and prevent mating with other non-power coded M12 types, reducing misconnection risks. They are recommended when you need to deliver up to 12A per contact in automation or power distribution applications.

Q: Where are these cables commonly installed within an industrial facility?

A: They are typically used in control panels, on machines, or along production lines-anywhere you need to securely transmit DC power (up to 63V) to fieldbus devices or decentralized equipment in challenging industrial environments.

Q: What is the process for customizing cable length or termination style?

A: You can specify your required length (from 1 to 10 meters or more) and termination options when ordering through most distributors or manufacturers. Pre-assembled terminations ensure quality control and streamline on-site installation.

Q: What are the main benefits of using this cable for power transmission?

A: The cable offers safe, high-current transmission, EMI/RFI protection via shielding, flexible installation, robust environmental and vibration resistance, and straightforward setup-making it ideal for industrial automation and rugged power delivery applications.
