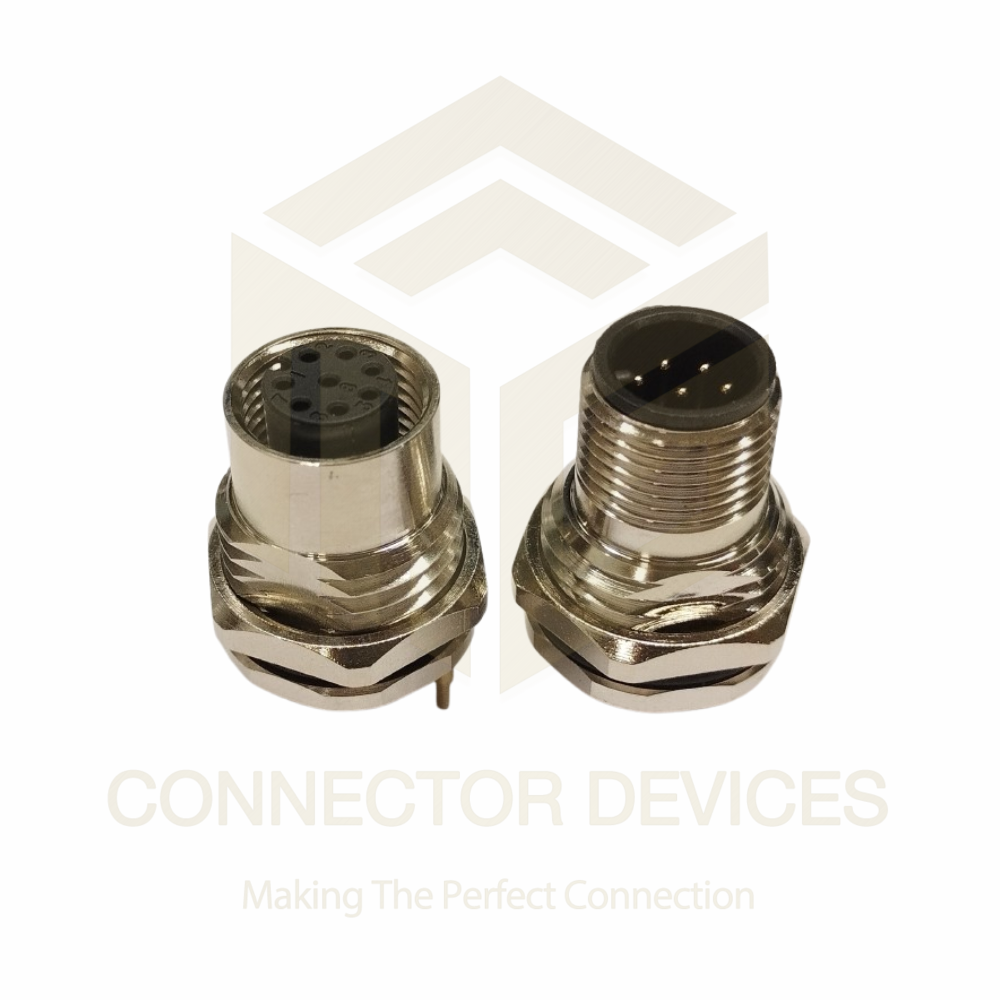

M12 Bulkhead PCB Mount front nut with supporting leg

1500.0 INR/Piece

Get a Price/Quote

Product Details:

Male End Type M12 Male pin
Connector Type Screw locking Circular Connector, Front Mount Bulkhead
Temperature -25C to +85C operating temperature
Connector M12 Bulkhead PCB mount with front nut and supporting leg
Female End Type M12 Female socket
Application Industrial automation, Sensors, Fieldbus interfaces, Control equipment
Voltage Rating 250V AC/DC
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

M12 Bulkhead PCB Mount front nut with supporting leg Price And Quantity

Price 1500.0 INR/Piece
Minimum Order Quantity 100 Piece

M12 Bulkhead PCB Mount front nut with supporting leg Product Specifications

Female End Type M12 Female socket
Connector M12 Bulkhead PCB mount with front nut and supporting leg
Cable Type N/A (PCB Mount)
Jacket Material N/A (PCB Mount)
Application Industrial automation, Sensors, Fieldbus interfaces, Control equipment
Material Brass with Nickel plating: Contact Pins - Gold Plated
Number of Conductor Varies (available in 3, 4, 5, 8 poles)
Color Metallic/Silver
Capacity Rated up to 4A per contact
Pairs Single connector, multiple poles
Flame Resistance Level UL94 V-0 rated housing
Wire Gauge AWG 22-26 compatible
Voltage Rating 250V AC/DC
Connector Type Screw locking Circular Connector, Front Mount Bulkhead
Insulation High grade insulating material (PA + GF)
Cable Length N/A (PCB Mount)
Sheild Yes, optional shielding available
Male End Type M12 Male pin
Outer Diameter M12 Thread Size, standard panel cutout
Temperature -25C to +85C operating temperature
Length Dependent on PCB design

Insulation Resistance 100 M at 500 V DC
Contact Resistance 10 m
Standards IEC 61076-2-101
Contact Plating Gold over Nickel
RoHS Compliance Yes
Support Leg Yes, for mechanical stability on PCB
IP Rating IP67 (when mated)
Mounting Type PCB Mount, Front Panel Mount
Packaging Bulk or Tape & Reel
Locking Mechanism Threaded (screw locking, M12x1.0 Thread)
Panel Thickness Maximum 6mm supported by nut
Current Rating Up to 4A (depends on version)

Product Description

Seize the ephemeral opportunity with our dazzling M12 Bulkhead PCB Mount, now available for sale through leading distributors, exporters, importers, and wholesalers in India! Designed for ineffable reliability, this sensational connector features IP67 protection (when mated), a threaded front nut for steadfast mounting, and a supporting leg to procure optimal mechanical stability on the PCB. Outfitted with gold-over-nickel-plated contacts, flame-resistant UL94 V-0 housing, and RoHS compliance, it ensures robust, enduring connections in industrial automation, sensors, and control equipment. Experience security and performance that bridge the gap between ephemerality and longevity.

Key Features and Applications

The M12 Bulkhead PCB Mount front nut with supporting leg is engineered for front-panel and PCB mounting, offering a threaded screw-locking mechanism and optional shielding. With a maximum panel thickness support of 6mm and compatibility with AWG 22-26 wire gauges, it dazzles in versatility. It is suitable for industrial automation, fieldbus interfaces, control equipment, and sensor applications, ensuring reliable electrical performance. Gold-over-nickel contacts, high-grade insulation, and robust housing contribute to ineffable durability even in demanding environments.

Quotation, Certifications, and Sample Policy

Procurement is streamlined via prompt quotation processes and comprehensive proposal amounts based on exact specifications. Certified to IEC 61076-2-101 and RoHS directives, the handover of goods guarantees compliance with global industrial standards. Samples can be requested through a dedicated proposal request process, ensuring hands-on assessment prior to large-scale orders. Our team coordinates seamless shipping and provides certificates of conformity alongside documentation for smoother transactions all through our trusted distributor network.

FAQ's of M12 Bulkhead PCB Mount front nut with supporting leg:

Q: How does the supporting leg enhance the M12 Bulkhead PCB Mount's installation?

A: The supporting leg provides additional mechanical stability during the mounting process on the PCB, ensuring the connector remains securely aligned and reducing the risk of damage or misalignment during assembly or use.

Q: What applications are best suited for this M12 Bulkhead PCB Mount with front nut?

A: This connector is ideal for use in industrial automation, fieldbus communication systems, sensor integration, and control equipment, especially where a durable and reliable threaded locking is needed.

Q: When is the M12 Bulkhead PCB Mount most beneficial to use?

A: The mount offers the most benefit in environments demanding IP67 protection, flame resistance, and robust mechanical strength, particularly in outdoor or industrial settings subject to vibration, dust, and moisture.

Q: Where can I procure the M12 Bulkhead PCB Mount front nut in India?

A: This product is available for sale through verified distributors, exporters, importers, manufacturers, traders, and wholesalers across India. Inquiries can be made directly for bulk or sample procurement.

Q: What is the process for requesting a sample or obtaining a quotation?

A: To request a sample or receive a quotation, submit your specifications to the supplier or distributor. A formal proposal amount and timeline for handover will then be provided, along with all necessary documentation for evaluation.
