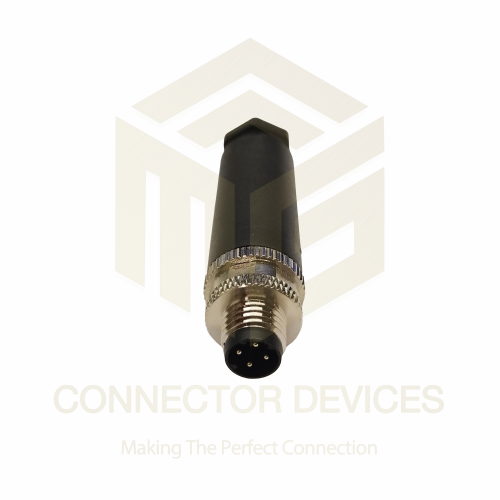

M8 4 Pin Male D Coded

1000 INR/Piece

Get a Price/Quote

Product Details:

Voltage Rating 30V AC/DC
Temperature -25C to +80C
Application Ethernet, Industrial Automation
Pairs 2 twisted pairs
Male End Type M8 4 Pin Male D Coded
Connector M8 4 Pin Male D Coded
Connector Type Circular, D-coded
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

M8 4 Pin Male D Coded Price And Quantity

Price 1000 INR/Piece
Minimum Order Quantity 100 Piece

Contact Resistance 5 m
Coding D-coded for Ethernet
Humidity Resistance 95% RH (non-condensing)
Ingress Protection IP67
Rated Current 4A max
Cable Shield Tinned Copper Braid
RoHS Compliance Yes
Insulation Resistance >= 100 M
Contact Plating Gold over Nickel
Mounting Type Panel Mount / Field Attach
Standards Compliance IEC 61076-2-114

M8 4 Pin Male D Coded Product Specifications

Flame Resistance Level UL 94V-0
Sheild Yes, fully shielded
Female End Type Not included / Optional
Cable Type PUR Ethernet Patch Cable
Cable Length 0.3 to 10 m (custom lengths available)
Connector Type Circular, D-coded
Connector M8 4 Pin Male D Coded
Wire Gauge 26 AWG
Number of Conductor 4
Outer Diameter 5.5 mm approx.
Insulation PVC
Jacket Material PUR (Polyurethane)
Color Black
Pairs 2 twisted pairs
Male End Type M8 4 Pin Male D Coded
Application Ethernet, Industrial Automation
Capacity Up to 100 Mbps
Material Copper (contacts), Brass (housing)
Length Customizable, standard 2 m
Temperature -25C to +80C
Voltage Rating 30V AC/DC

Contact Resistance 5 m
Coding D-coded for Ethernet
Humidity Resistance 95% RH (non-condensing)
Ingress Protection IP67
Rated Current 4A max
Cable Shield Tinned Copper Braid
RoHS Compliance Yes
Insulation Resistance >= 100 M
Contact Plating Gold over Nickel
Mounting Type Panel Mount / Field Attach
Standards Compliance IEC 61076-2-114

Product Description

Experience unparalleled connectivity access with the polished M8 4 Pin Male D Coded connector, now available at a special rate in our exclusive sale. This laureate-grade, famed for its robust industrial performance, comes with IP67 ingress protection, fully shielded design, and gold-over-nickel contacts ensuring minimal contact resistance of just 5 m. Supporting up to 100 Mbps Ethernet, the flexible, flame-resistant PUR cable is customizable from 0.3 to 10 meters. RoHS compliant and crafted for high humidity and extreme temperatures, this connector excels in industrial automation environments. Distributed across India to meet global standards like IEC 61076-2-114.

Versatile Industrial Connector for Challenging Environments

The M8 4 Pin Male D Coded shines as a robust solution designed specifically for Ethernet in demanding industrial automation settings. Built with precision, it offers secure access and reliable data transmission. The versatile circular D-coded connector type is perfect for panel mount and field attachment, while fully shielded pairs guarantee optimized performance, especially where signal integrity and rugged durability are required.

Secure Shipping and Certified Packaging Handover

Every order of the M8 4 Pin Male D Coded connector is meticulously packaged for maximum protection, promising a secure shipping experience. Handover occurs at India's key FOB ports for global export. Our commitment to authenticity is proven by our range of certifications, including RoHS compliance and adherence to IEC 61076-2-114 standards. Benefit from the lowest price guarantees and reliable delivery with our expert distribution.

FAQ's of M8 4 Pin Male D Coded:

Q: How does the M8 4 Pin Male D Coded connector ensure reliable connections in industrial settings?

A: This connector features IP67 ingress protection, fully shielded cable, and gold-over-nickel plated contacts to deliver reliable data transmission even in harsh environments.

Q: What are the customization options available for cable length?

A: Cable lengths can be customized from 0.3 meters up to 10 meters, with a standard option of 2 meters available for immediate delivery.

Q: Where is the M8 4 Pin Male D Coded connector most commonly used?

A: It is widely used in Ethernet applications within industrial automation, ensuring secure and stable connectivity for networked machinery and control systems.

Q: What is the process for ordering and shipping this product internationally?

A: Orders are processed through secure packaging, with shipping coordinated at India's main FOB ports. We ensure safe handover and rigorous export compliance.

Q: How does this connector benefit Ethernet installations?

A: With D-coding for Ethernet, a shielded PUR cable, and UL 94V-0 flame resistance, the connector offers fast, reliable, and safe data transmission in demanding environments.
